Horn Connector End View - F Note
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Horn Connector End View - F Note

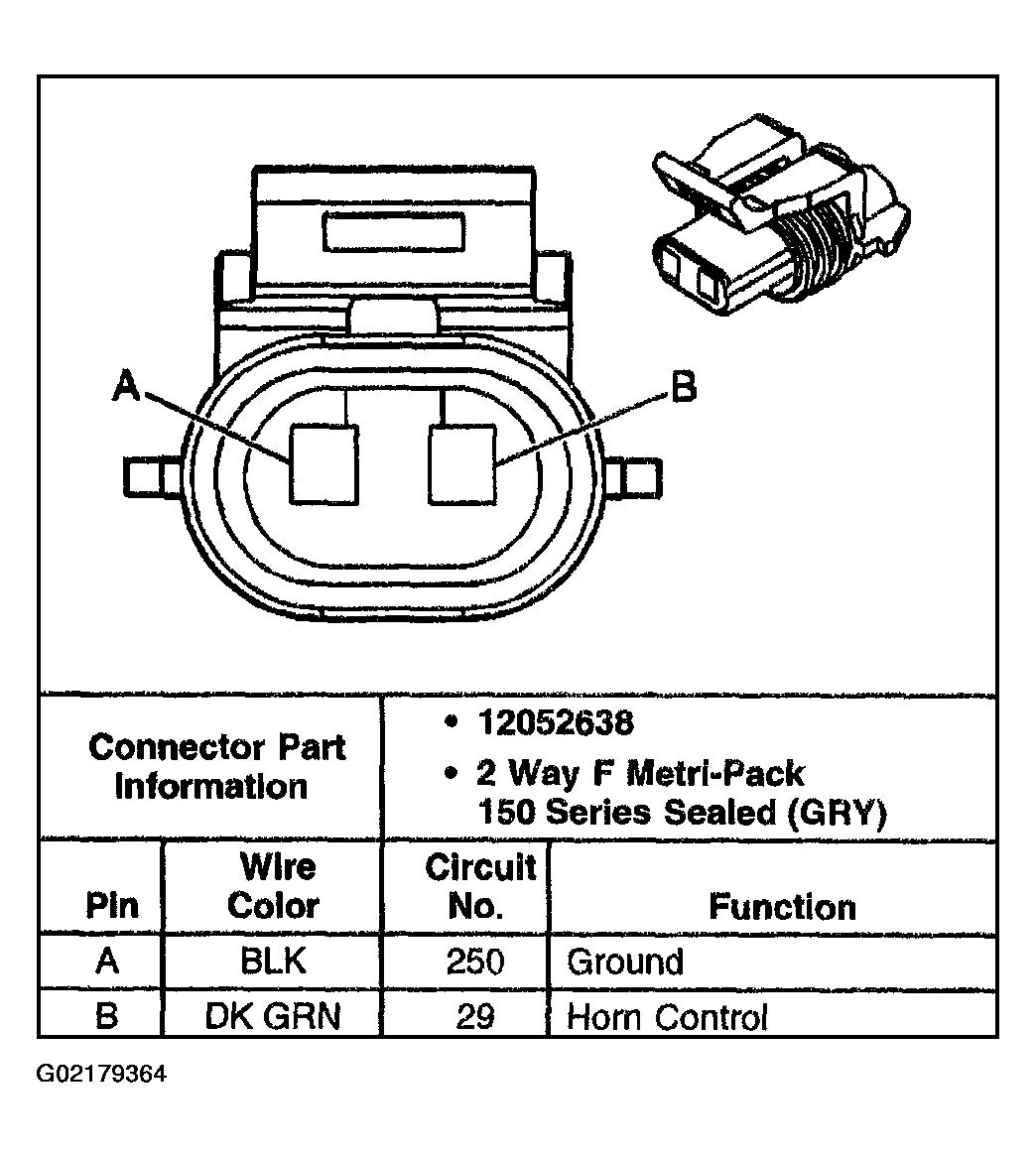

Fig 1: Horn - F Note
Courtesy of GENERAL MOTORS CORP.
