Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the memory seat switch (1) to the door trim panel.
  2. Connect the memory seat switch electrical connector (3).
  3. Reinstall the door panel sound deadener material (2).
  4. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR

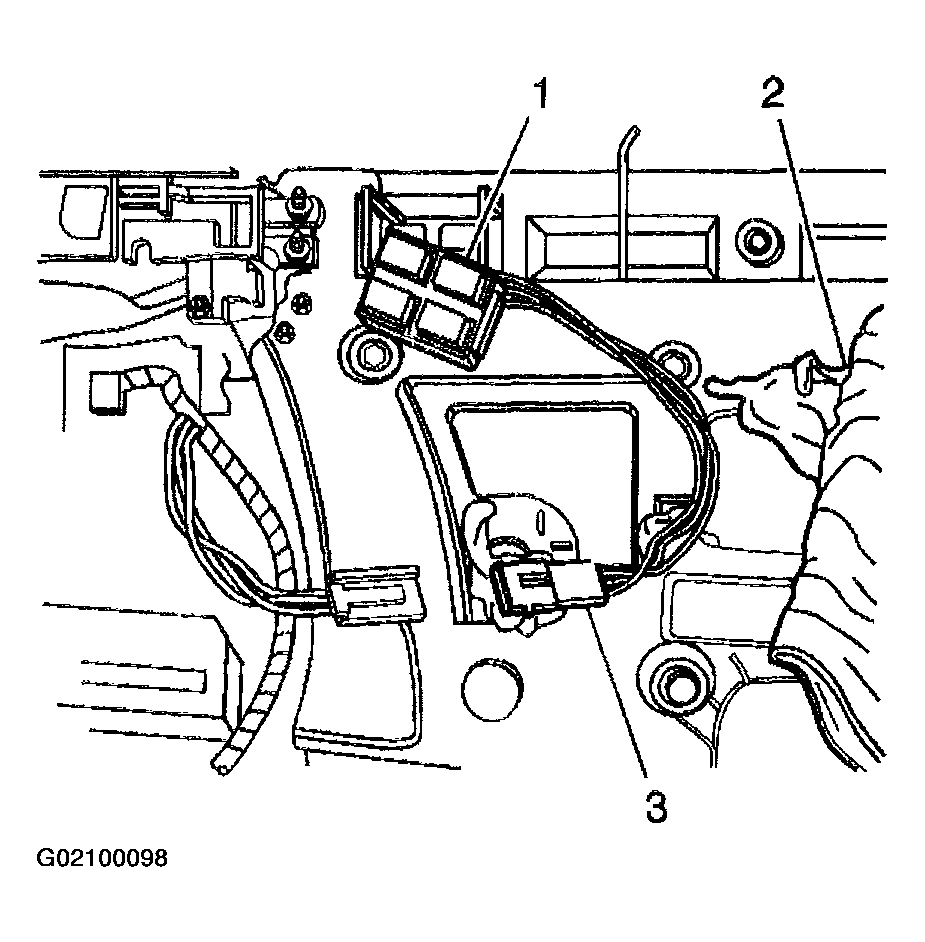

    Fig 1: Connecting Memory Seat Switch Electrical Connector
    G02100098Courtesy of GENERAL MOTORS CORP.
