Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR  .
  2. Disconnect the electrical connectors to the heated seat control module.
  3. Remove the fasteners from the heated seat control module.
  4. Remove the rear heated seat control module from the seat back.

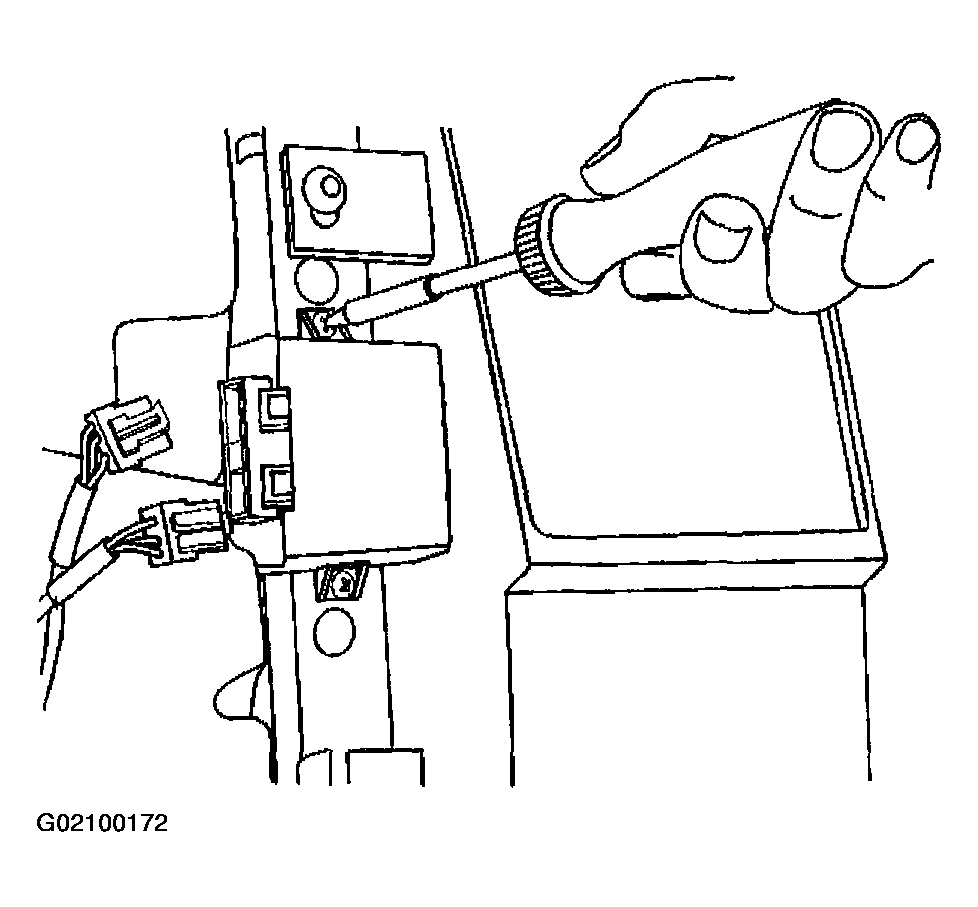

    Fig 1: Removing Seat Control Module
    G02100172Courtesy of GENERAL MOTORS CORP.
