Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT
  2. Rotate the stop lamp/ABS/shift lock switch (2) counterclockwise, then pull to remove the switch.
  3. Disconnect the electrical connector from the switch.

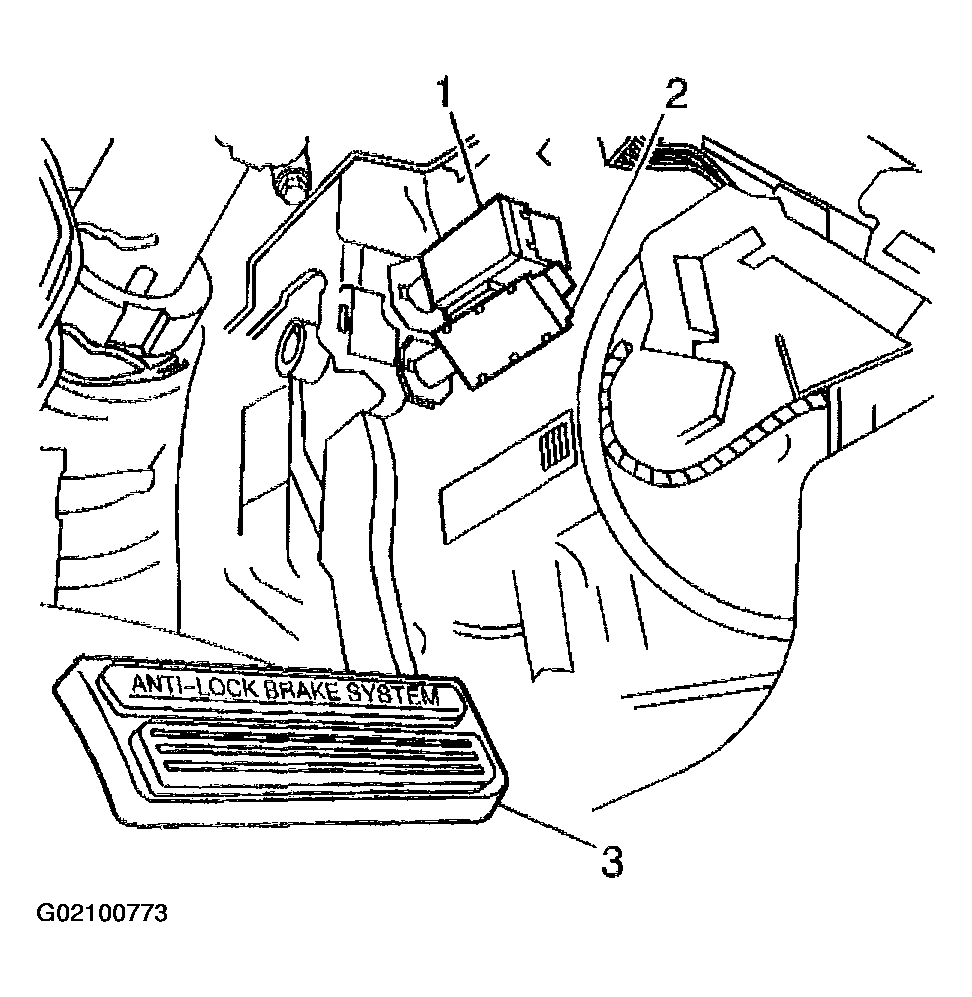

    Fig 1: Removing Anti Lock Brake System Switch
    G02100773Courtesy of GENERAL MOTORS CORP.
