Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Install the license lamp bulb into the socket.

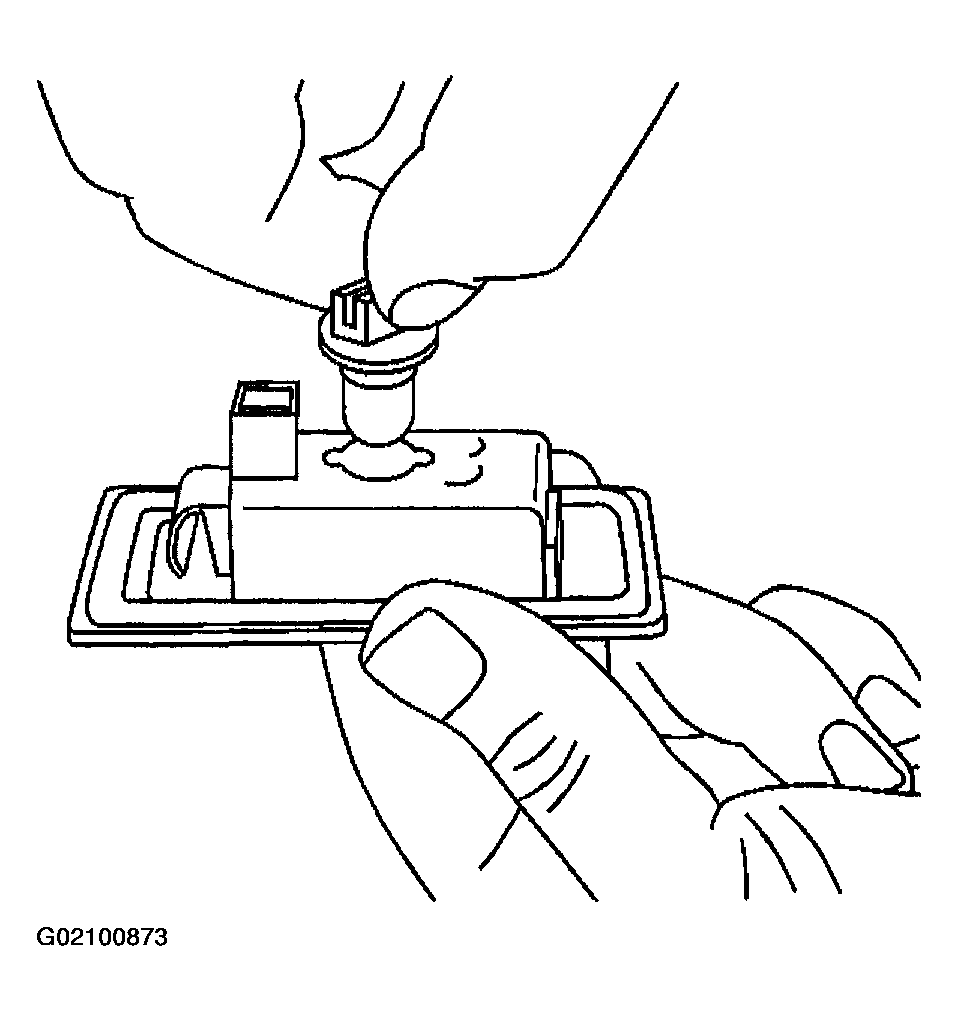

Fig 1: Installing License Lamp Bulb Into Socket
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector.

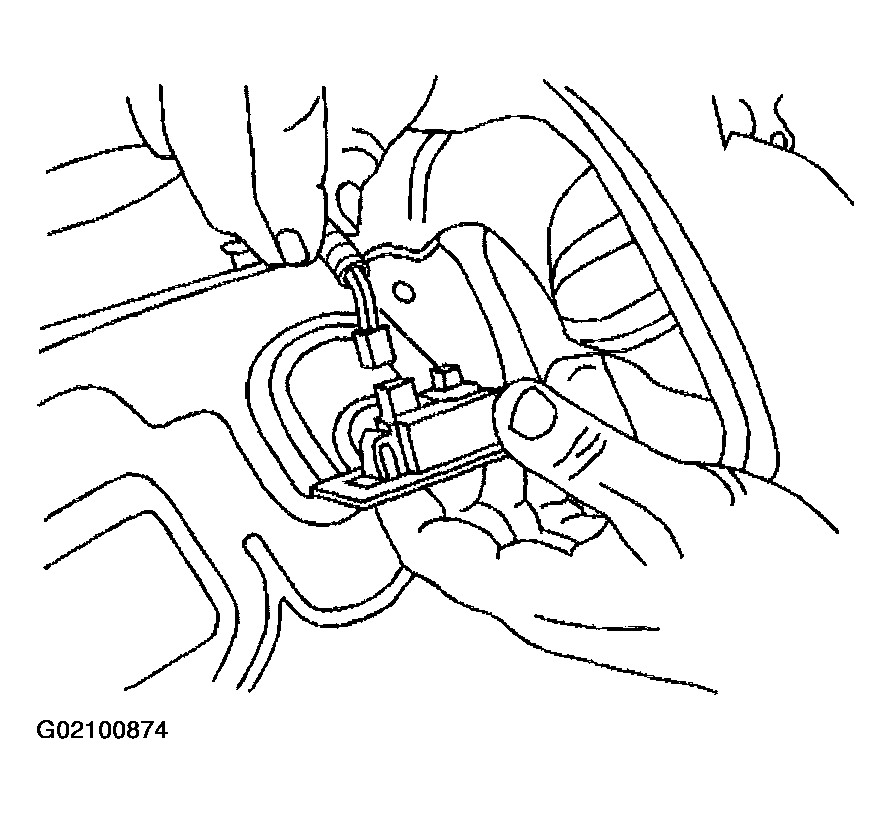

Fig 2: Connecting License Lamp Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the license lamp by inserting the left side of the lamp, then the right side.
Press on the lamp until the tab locks.
Close the rear compartment.

Fig 3: Installing License Lamp
Courtesy of GENERAL MOTORS CORP.
