Heated Seat Module Connector End View - Driver C2
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Heated Seat Module Connector End View - Driver C2

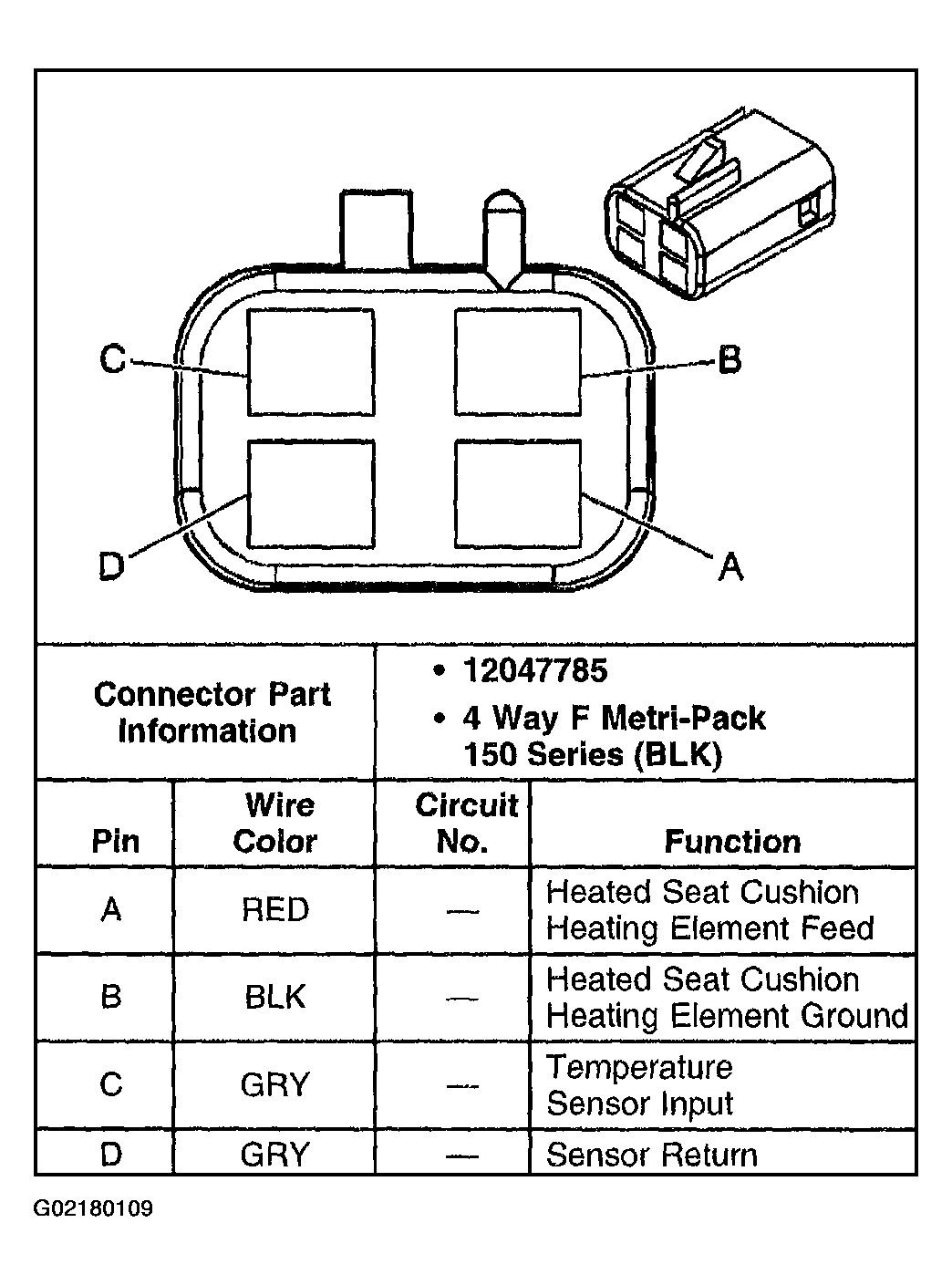

Fig 1: Heated Seat Module - Driver C2
Courtesy of GENERAL MOTORS CORP.
