Cellular Telephone Interface Board Connector End View

Fig 1: Cellular Telephone Interface Board (Late Production)
G02178874Courtesy of GENERAL MOTORS CORP.

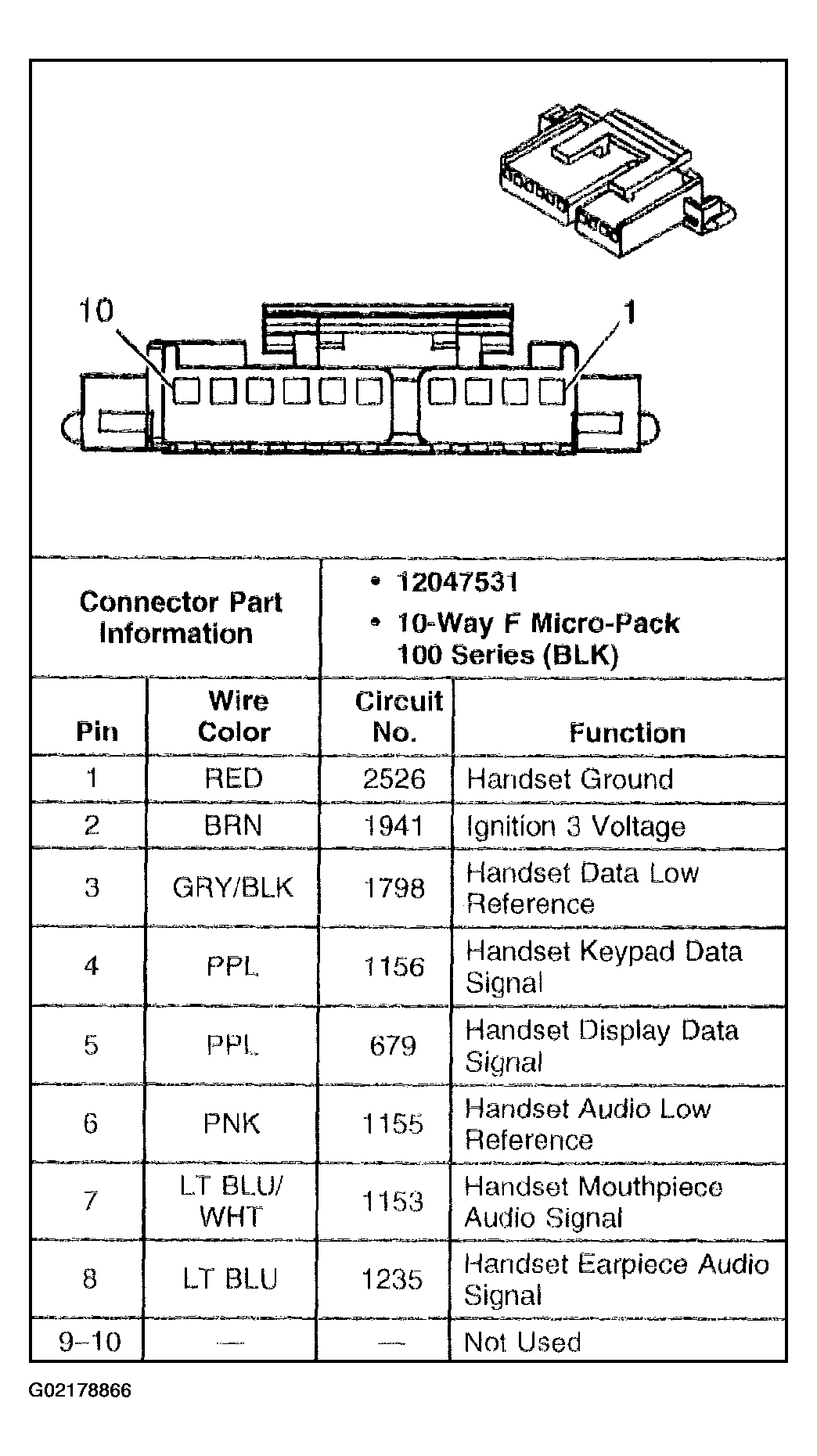

Fig 1: Cellular Telephone Interface Board (Early Production)
G02178866Courtesy of GENERAL MOTORS CORP.
