Removal Procedure

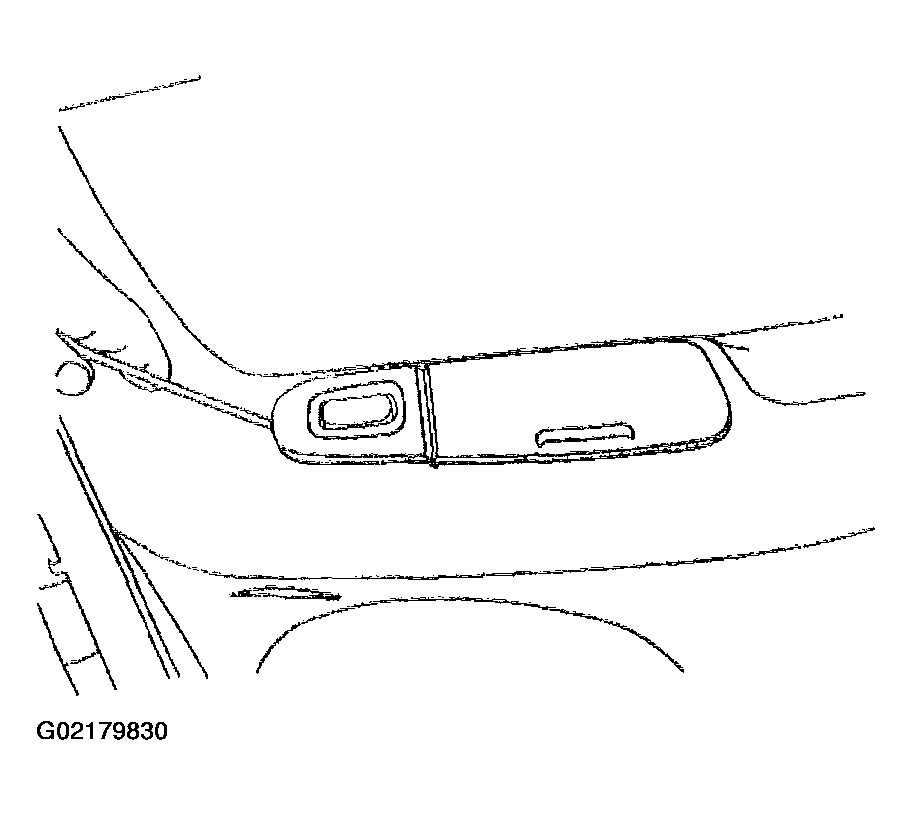

- Insert a flat bladed tool under the rear edge of the rear window switch plate.
Courtesy of GENERAL MOTORS CORP.
- Push the tool firmly towards the switch plate in order to disengage the retainer.
NOTE:
The retainer clip must be fully disengaged before the switch plate is removed. Otherwise, damage to the switch plate could result.
- Lift up on the rear of the switch plate in order to remove it from the door trim panel.

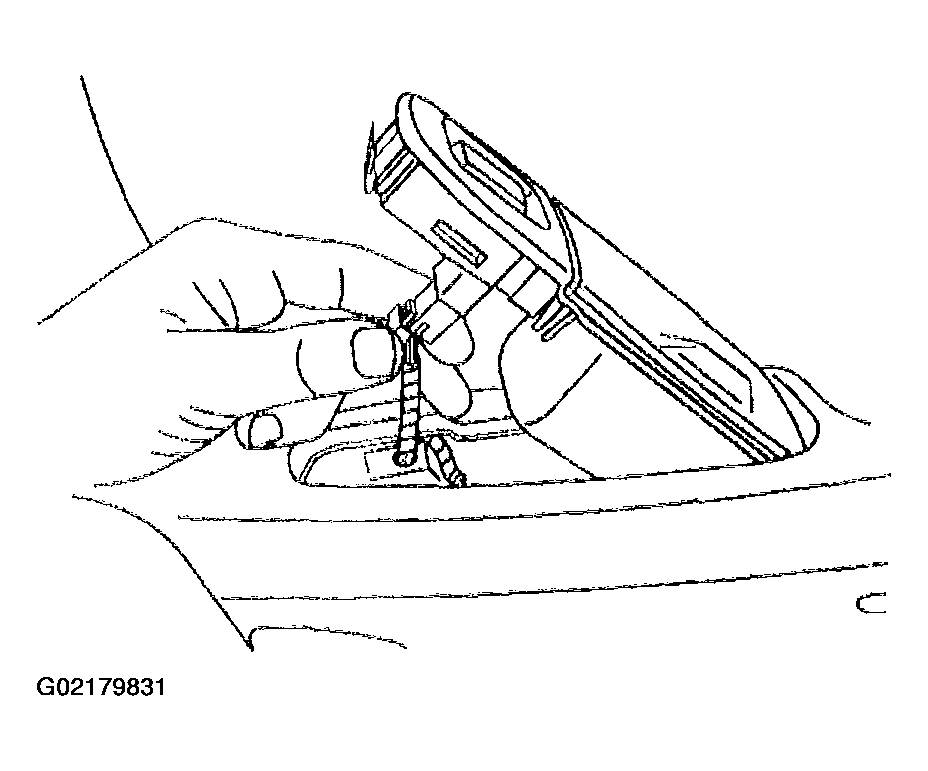

- Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS CORP.
- Remove the switch plate assembly.
- Remove the switch from the switch plate by disengaging the side snap walls with small flat bladed tool.
