OnStar® Vehicle Communication Interface Module

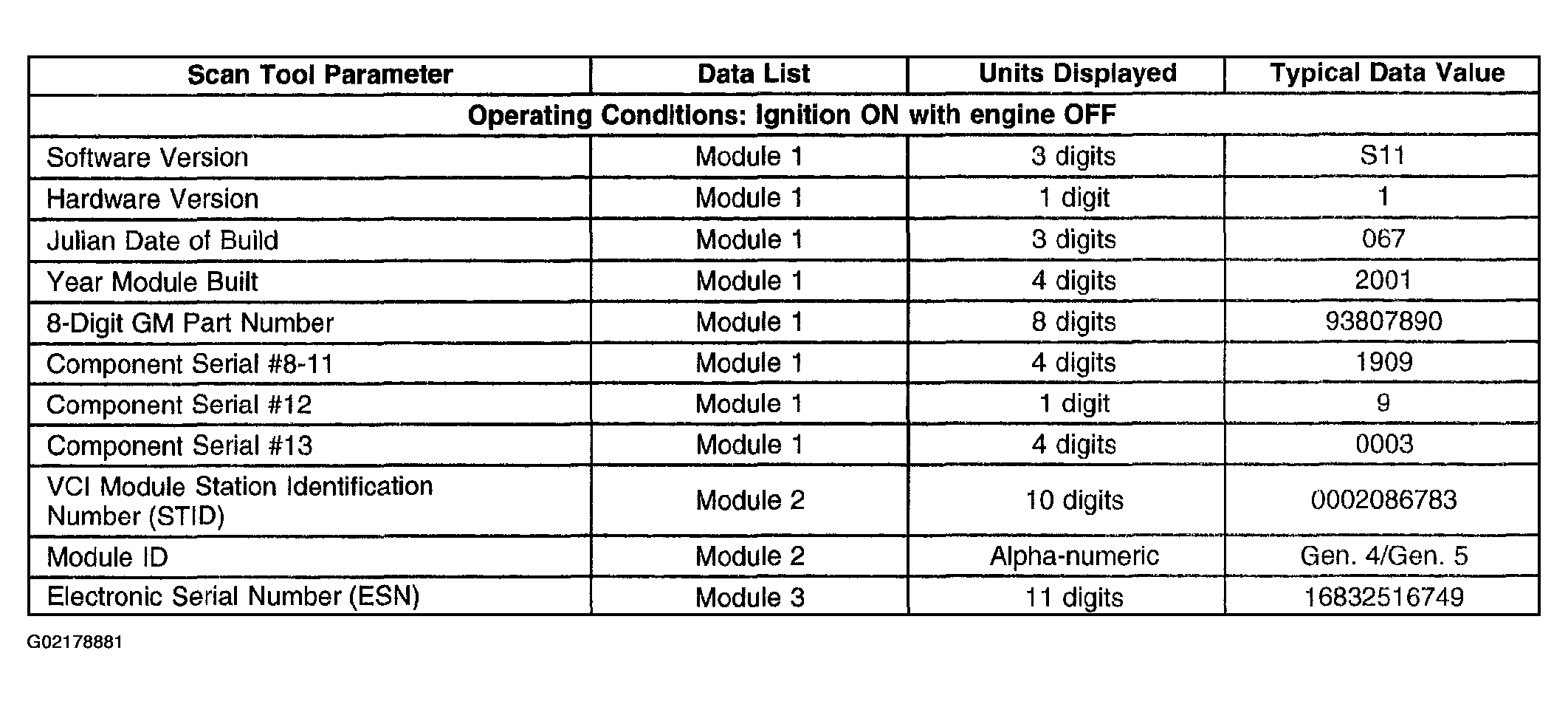

Fig 1: Onstar® Vehicle Communication Interface Module - Scan Tool Data Chart
G02178881Courtesy of GENERAL MOTORS CORP.
