Specifications
>>
Wheel Alignment Specifications
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Wheel Alignment Specifications

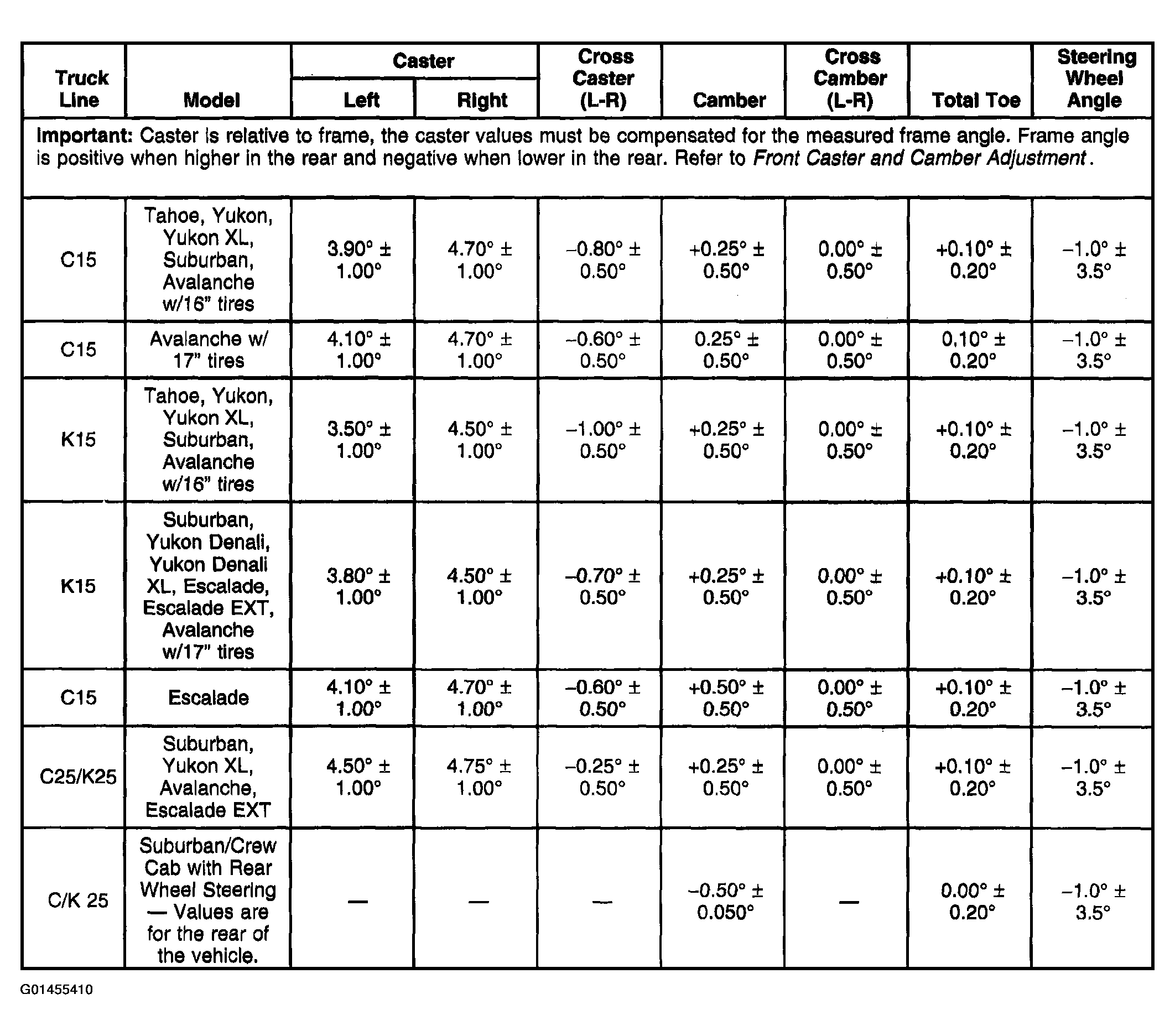

Fig 1: Wheel Alignment Specifications Table
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
