Special Tools and Equipment

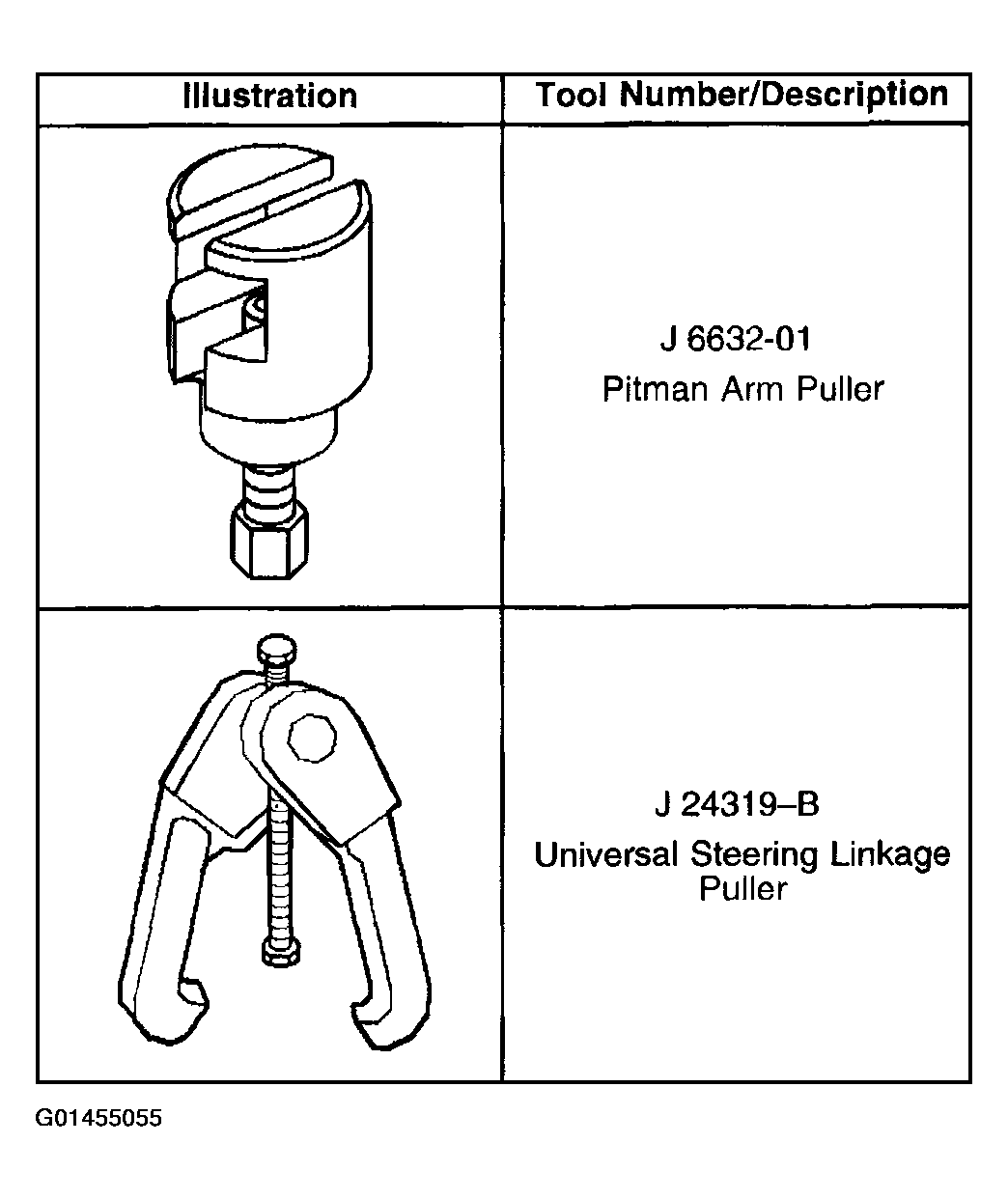

Fig 1: Special Tools And Equipment Table (1 Of 2)
G01455055Courtesy of GENERAL MOTORS CORP.

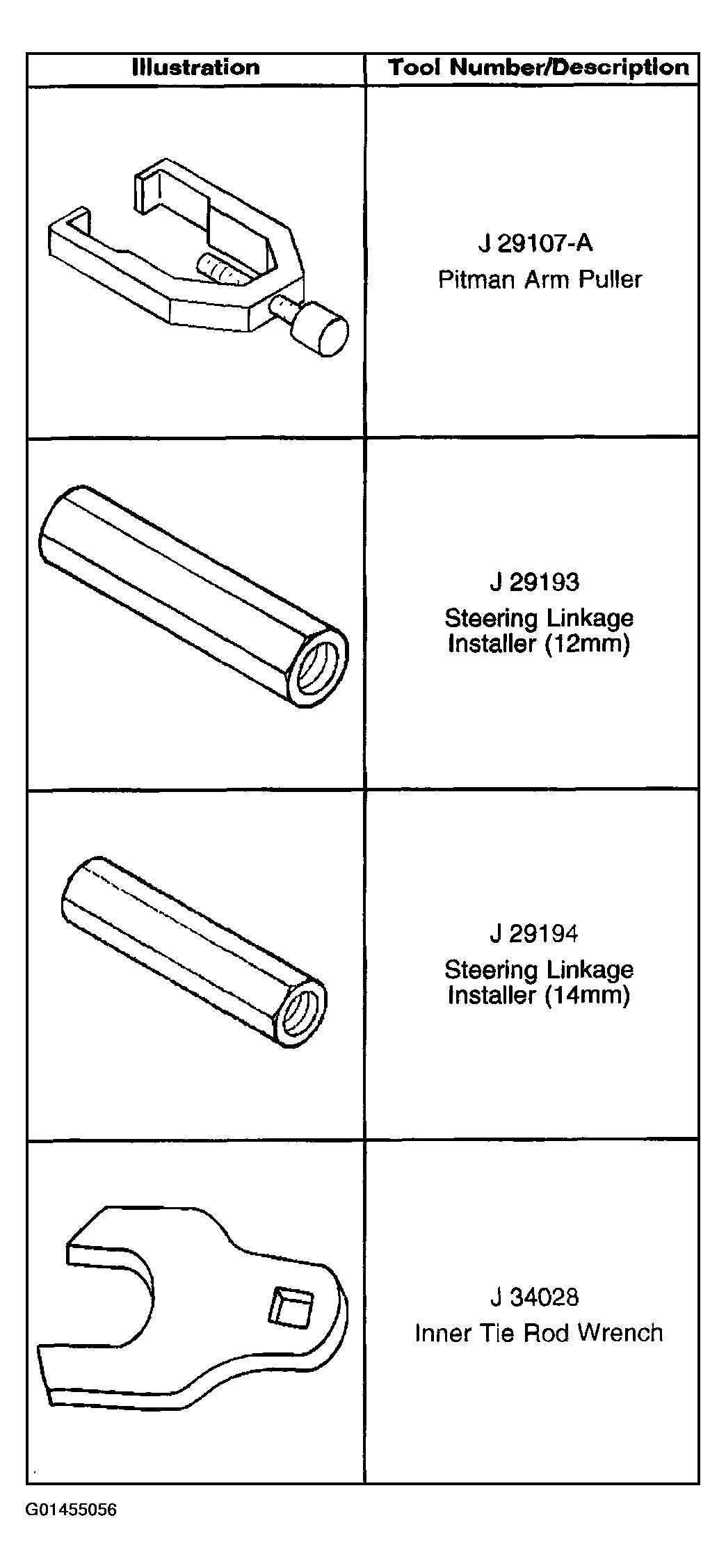

Fig 2: Special Tools And Equipment Table (2 Of 2)
G01455056Courtesy of GENERAL MOTORS CORP.
