Assembly Procedure

  1. Lubricate the O-ring seal (3) with power steering fluid.
  2. Install the O-ring seal (3) into the steering gear housing (5).
  3. Install the plug (2).
  4. Install the retaining ring (1). Ensure that the retaining ring open end is approximately 25 mm (1 in) from the access hole in the steering gear housing (5).

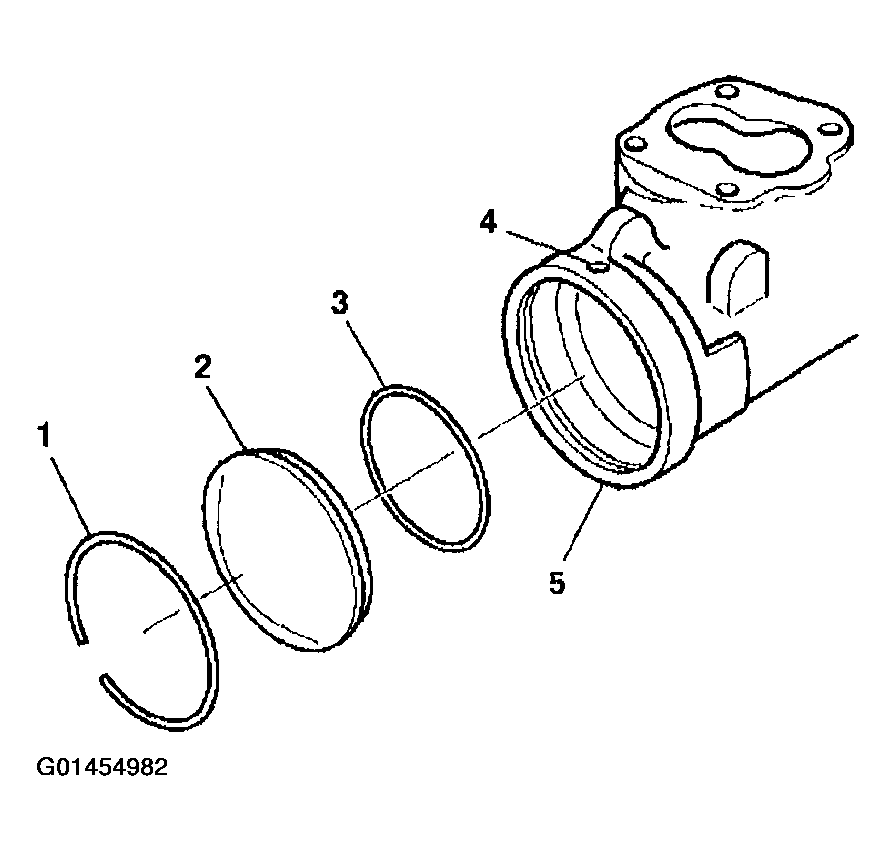

    Fig 1: Installing O-Ring Seal
    G01454982Courtesy of GENERAL MOTORS CORP.
