Power Steering Gear Disassembled View (670 Gear)

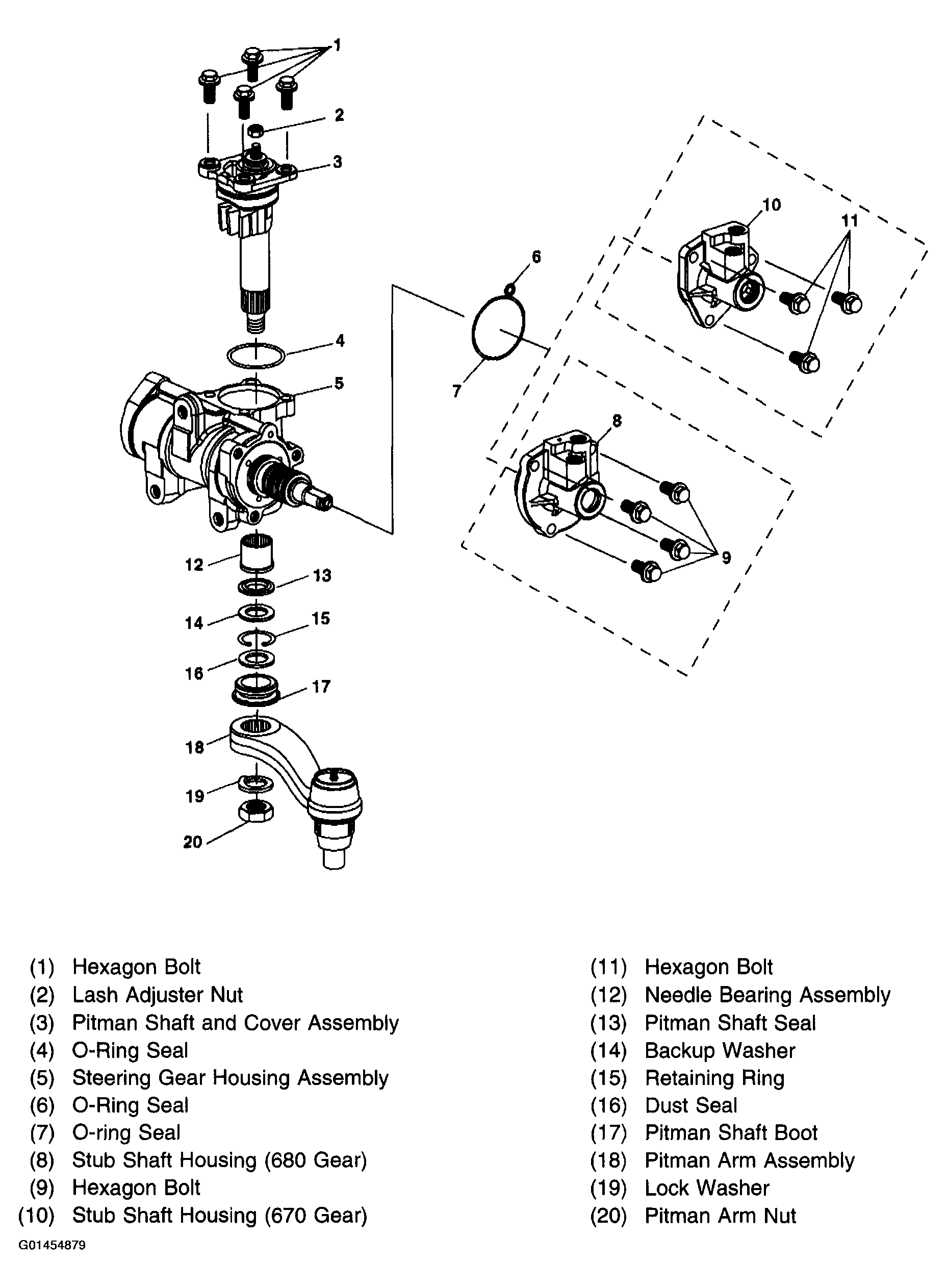

Fig 1: Exploded View Of Power Steering Gear (670 Gear) Components
G01454879Courtesy of GENERAL MOTORS CORP.
