Cadillac
>>
2003
>>
Escalade EXT
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belt System
>>
Schematic and Routing Diagrams
>>
Seat Belt Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Seat Belt Schematics

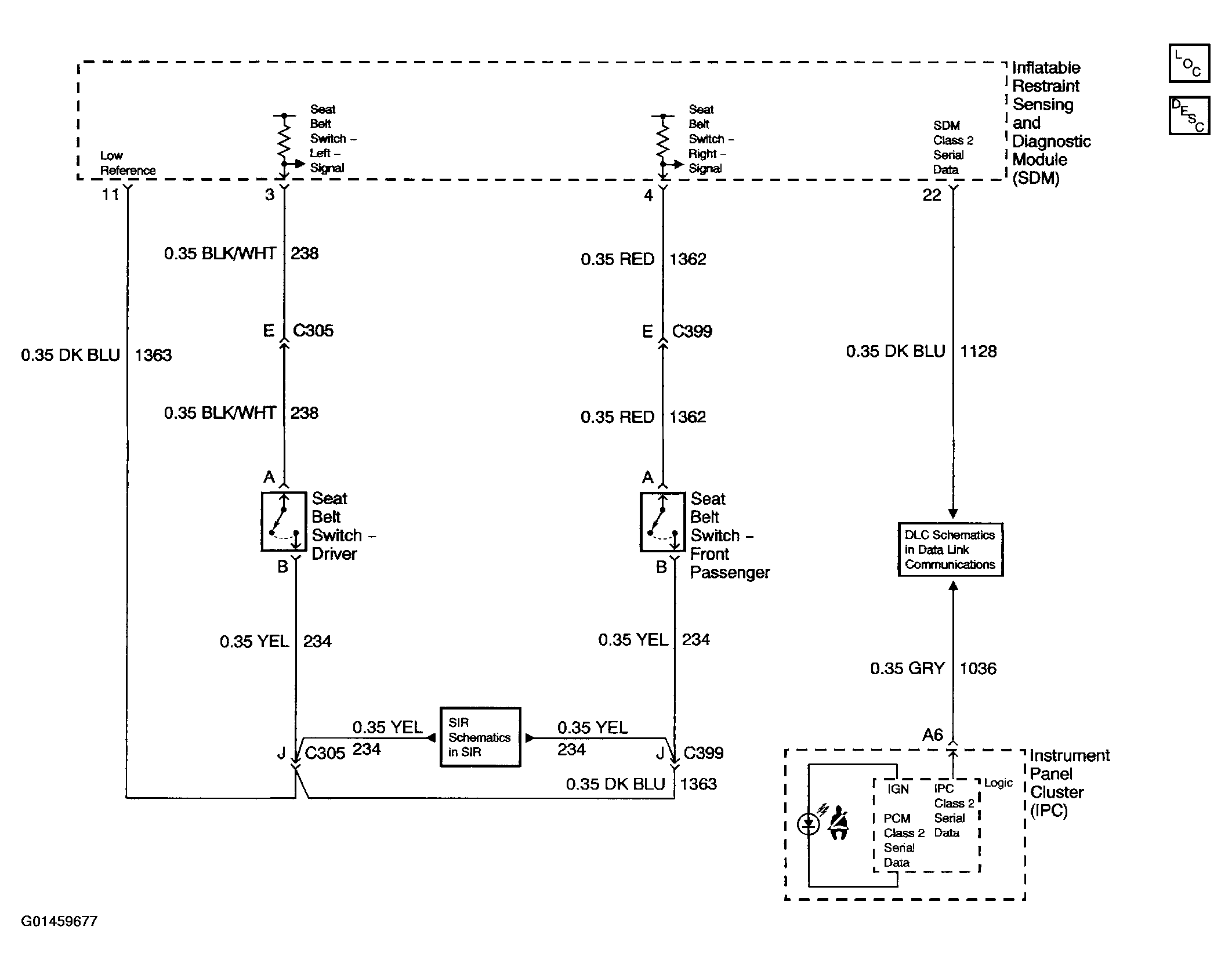

Fig 1: Seat Belt Schematics Diagram
Courtesy of GENERAL MOTORS CORP.
