Removal Procedure

  1. Remove the center front seat belt latch bolt.

    Remove the seat belt latch assembly from the vehicle.

    Fig 1: Removing Center Front Seat Belt Latch Bolt
    G01459695Courtesy of GENERAL MOTORS CORP.
  2. Remove the center front seat belt buckle bolt.
  3. Remove the buckle assembly from the seat.

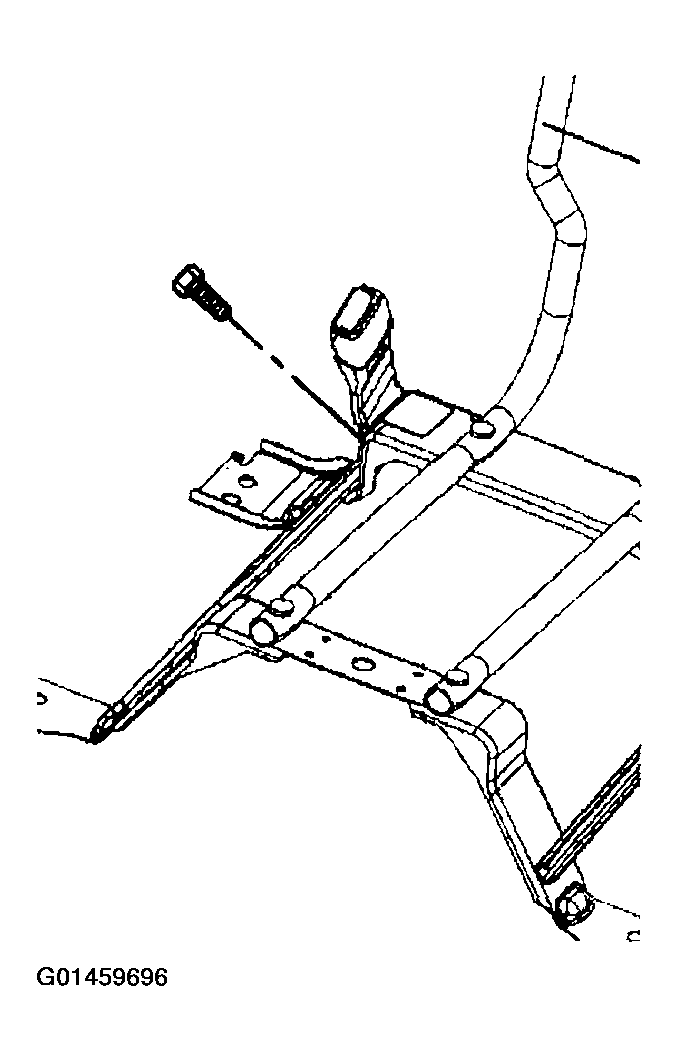

    Fig 2: Removing Center Front Seat Belt Buckle Bolt
    G01459696Courtesy of GENERAL MOTORS CORP.
