Fuel Pump/Sender Assembly (Primary) Connector End View & Functions - L59

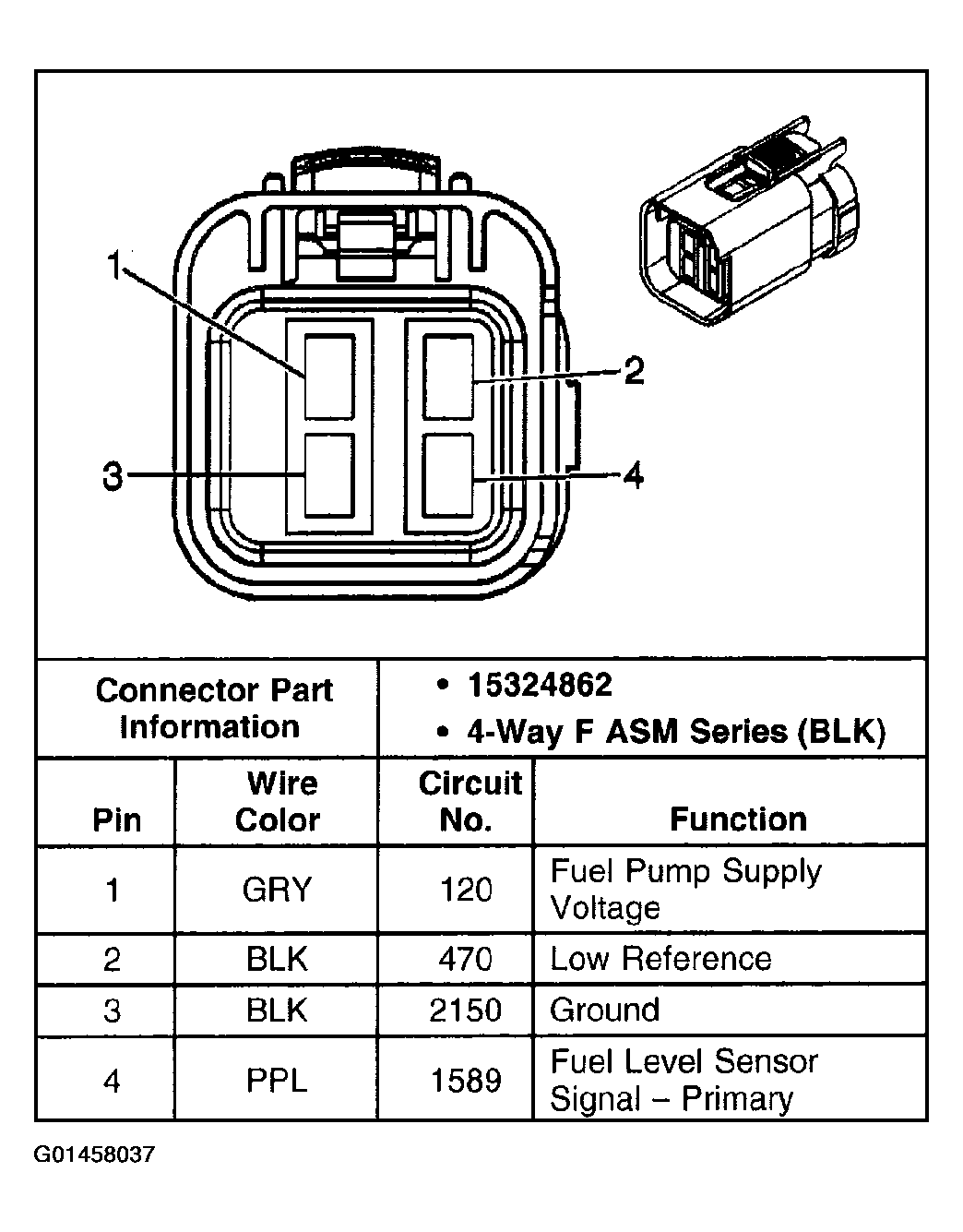

Fig 1: Fuel Pump/Sender Assembly (Primary) Connector End View & Functions - L59
Courtesy of GENERAL MOTORS CORP.
