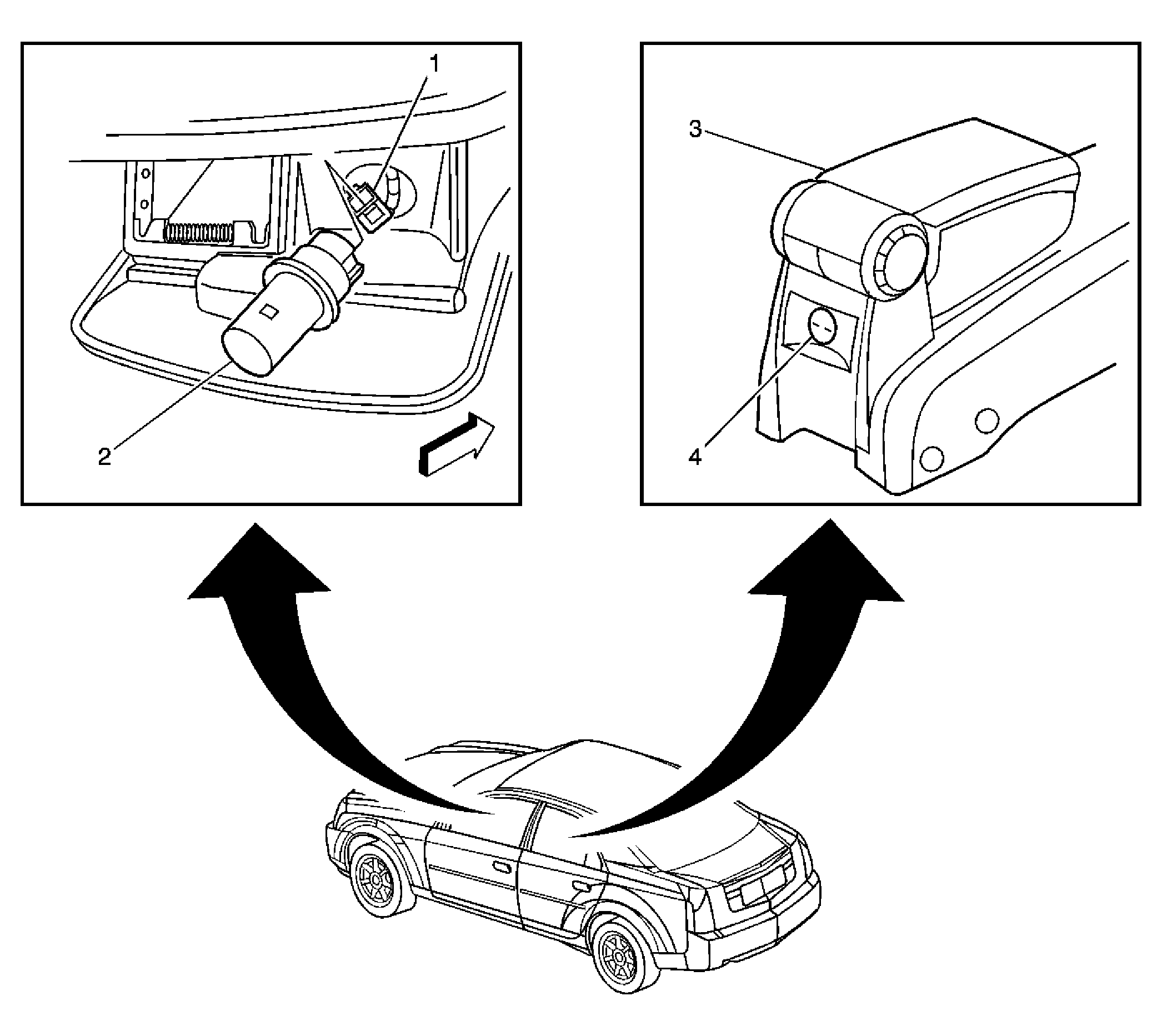

Power Outlet Component Views
WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cigar Lighter Connector |
| 2 |
Cigar Lighter |
| 3 |
Console Assembly |
| 4 |
Auxiliary Power Outlet |
