Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the seat back frame down into the recliner and align the fasteners holes.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat back to recliner bolts (1).

    Tighten

    Tighten the bolts to 52 N.m (38 lb ft).

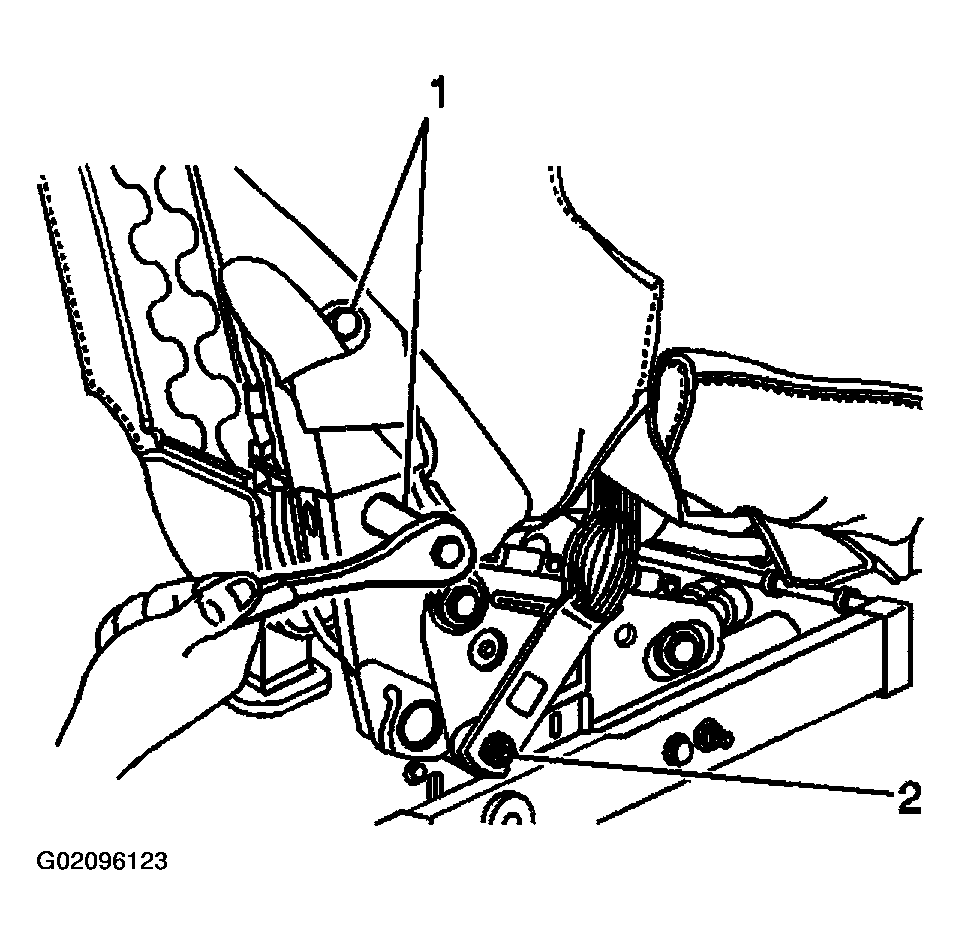

    Fig 1: Installing The Seat Back To Recliner Bolts
    G02096123Courtesy of GENERAL MOTORS CORP.
  3. Install the seat back to riser bolt (1).

    Tighten

    Tighten the bolt to 35 N.m (26 lb ft).

  4. Install the front seat belt assembly. Refer to SEAT BELT REPLACEMENT -- FRONT .
  5. Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT  .
  6. Install the trim covers.

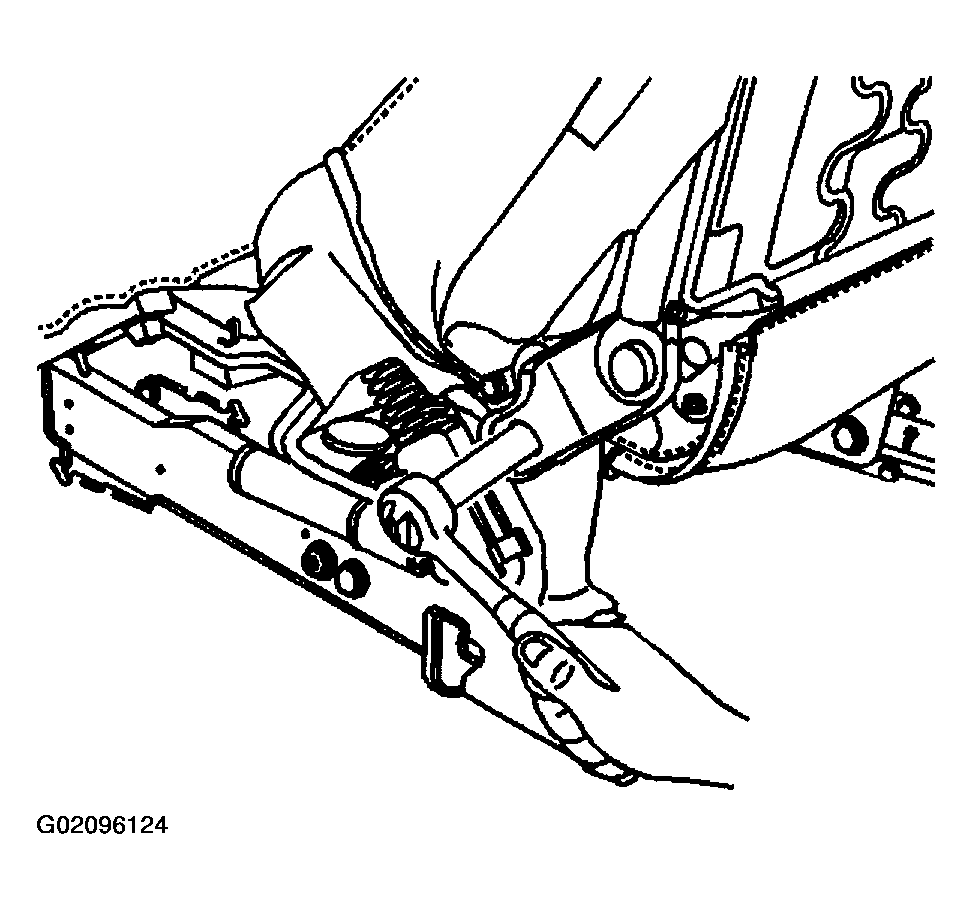

    Fig 2: Installing Seat Back To Riser Bolt
    G02096124Courtesy of GENERAL MOTORS CORP.
  7. Install the push-in retainer (1) to secure the trim cover.
  8. Install the front seat cushion. Refer to SEAT CUSHION REPLACEMENT - FRONT  .

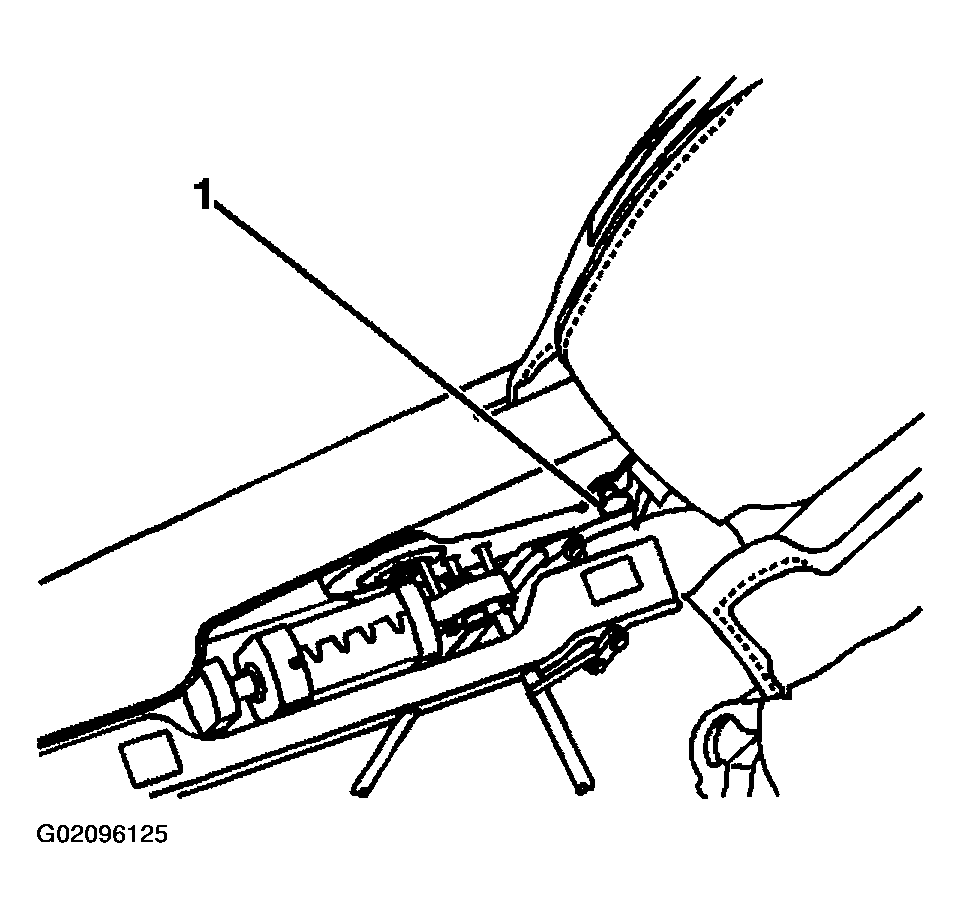

    Fig 3: Installing Push-In Retainer To Secure Trim Cover
    G02096125Courtesy of GENERAL MOTORS CORP.
  9. Route and connect the electrical connectors to the seat back.
  10. Install the front seat. Refer to SEAT REPLACEMENT - BUCKET  .

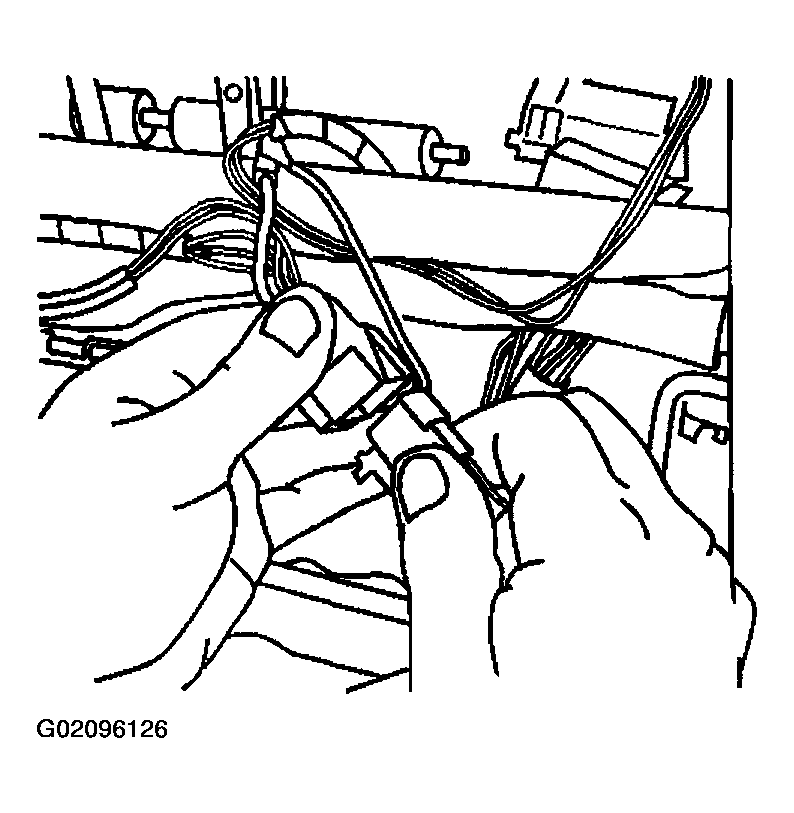

    Fig 4: Connecting Electrical Connectors To Seat Back
    G02096126Courtesy of GENERAL MOTORS CORP.
