Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SIR CAUTION in Cautions and Notices.

Remove the front seat. Refer to SEAT REPLACEMENT - BUCKET .
Disconnect the electrical connector from the sensor (2).
Rotate the sensor counterclockwise and remove it (1).

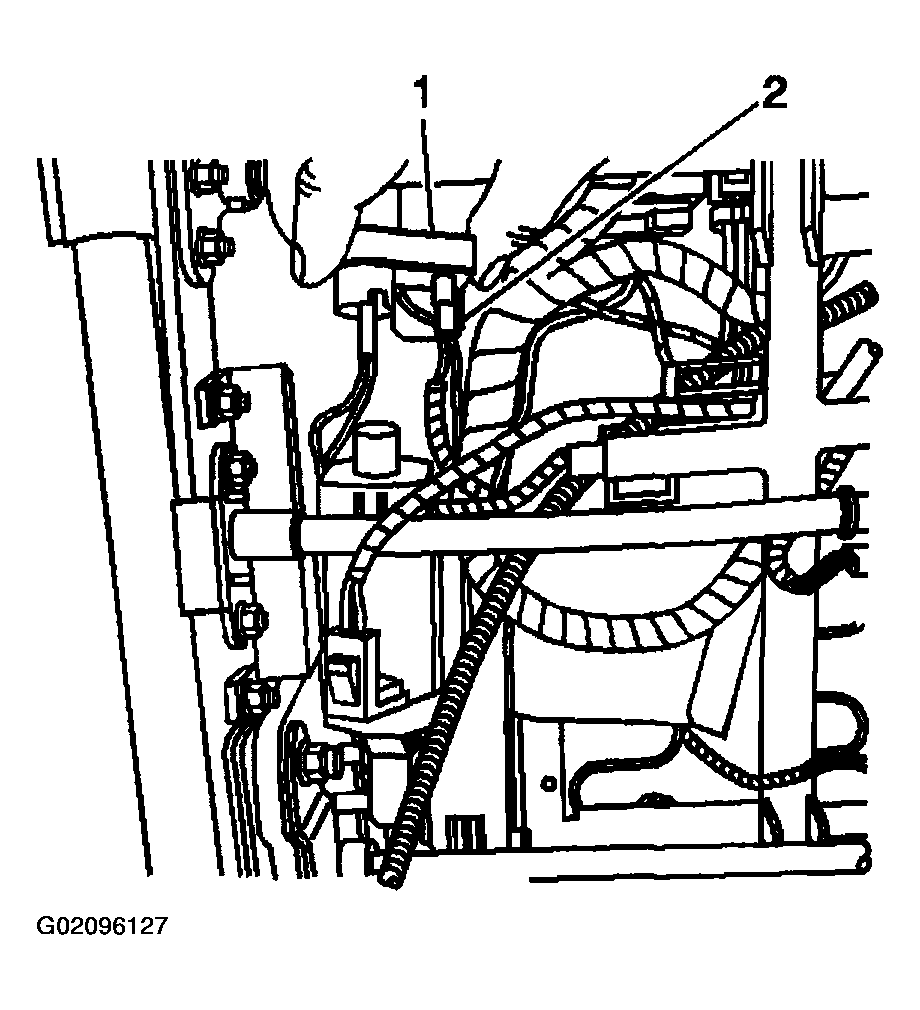

Fig 1: Disconnecting Electrical Connector From Sensor
Courtesy of GENERAL MOTORS CORP.
