Theft Deterrent System Connector End Views
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

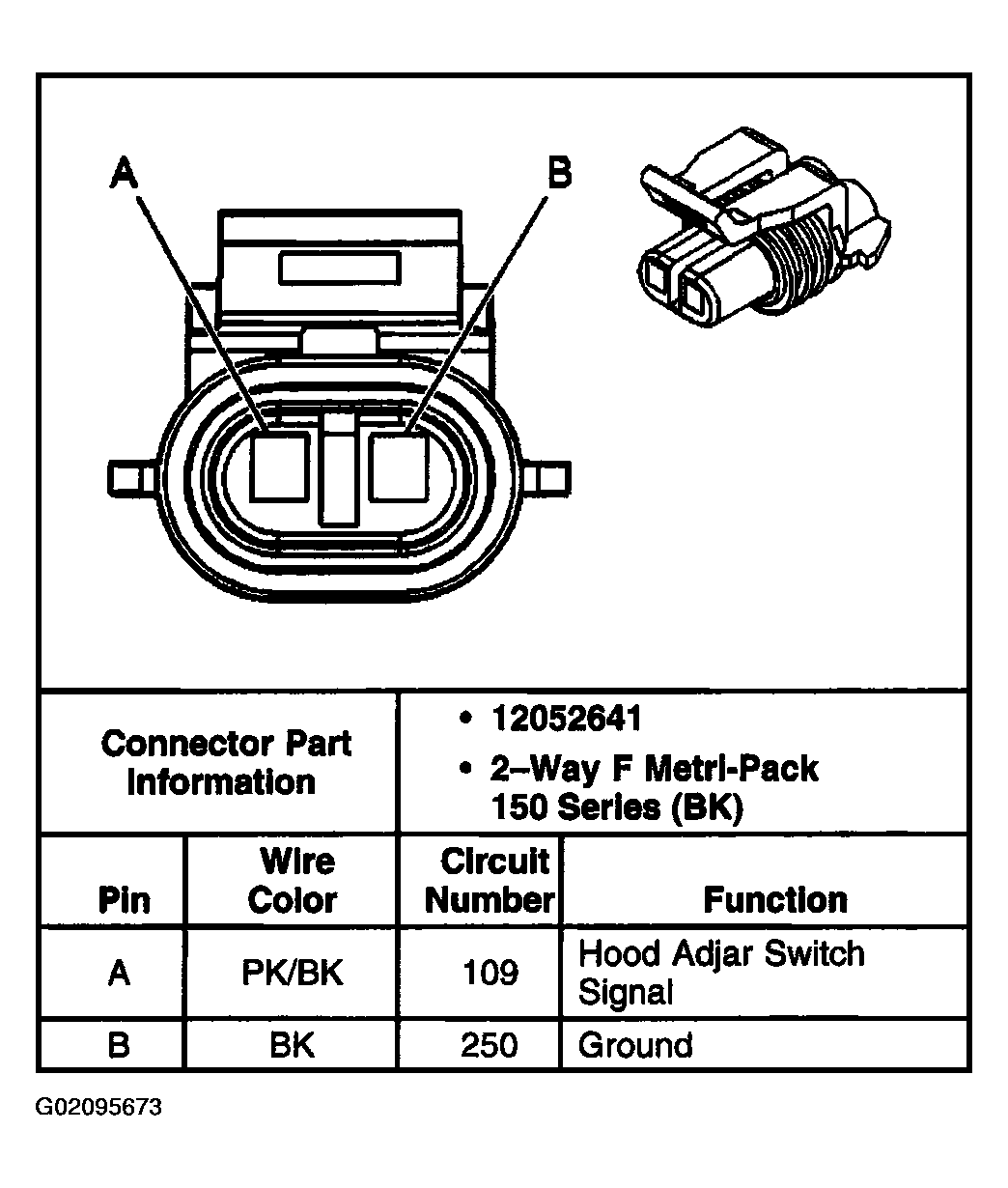

Fig 1: Hood Ajar Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 2: Intrusion Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 3: Theft Deterrent Alarm Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 4: Theft Deterrent Control Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 5: Inclination Sensor (Export W/ UA2) Connector End View
