Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear compartment lid applique. Refer to BODY REAR END in Body Rear End.
  3. Remove the license lamp socket from the rear compartment lid applique by turning it counter clockwise.
  4. Remove the license lamp bulb from the socket if replacing.

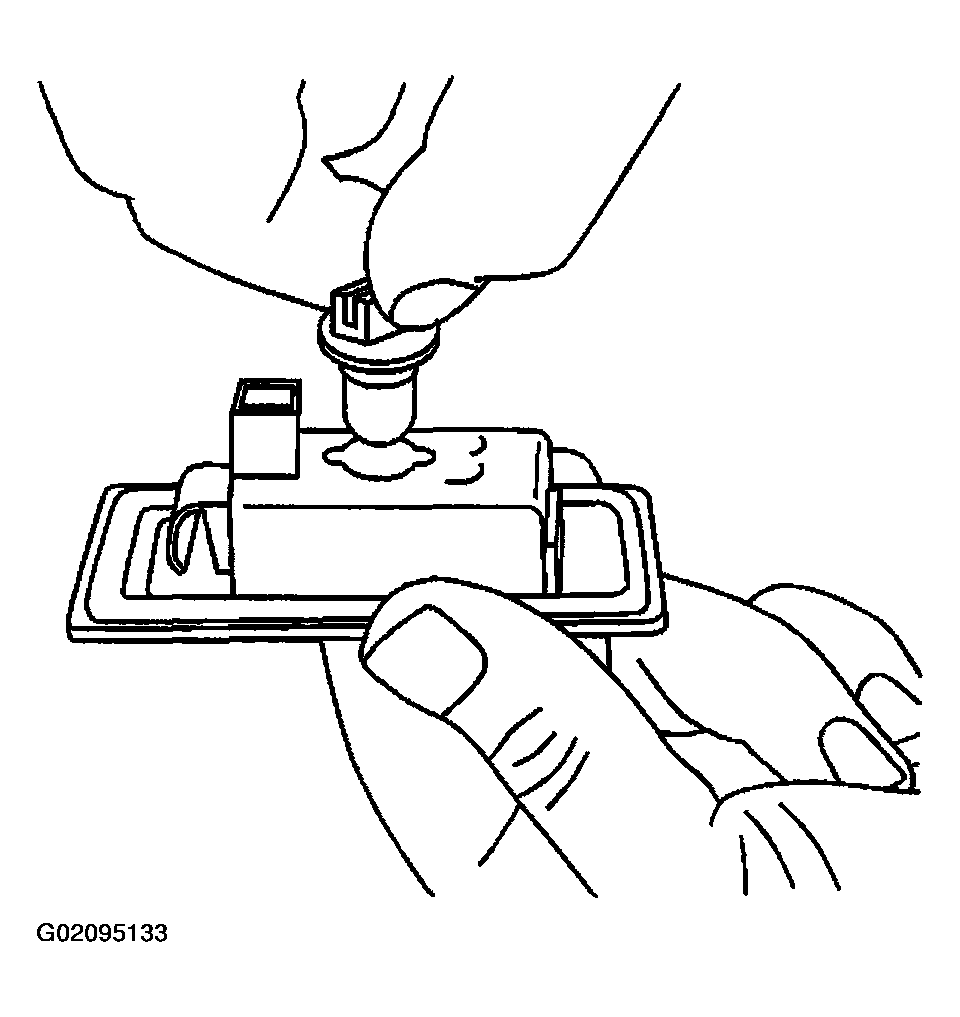

    Fig 1: Removing License Lamp Bulb
    G02095133Courtesy of GENERAL MOTORS CORP.
  5. Remove the license lamp from the rear compartment lid applique by lifting the retaining tabs and sliding the lamp away from the applique.
