Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp bulb into the socket.
  2. Install the fog lamp bulb socket into the fog lamp assembly by inserting and twisting the socket clockwise.
  3. Connect electrical connector (1).

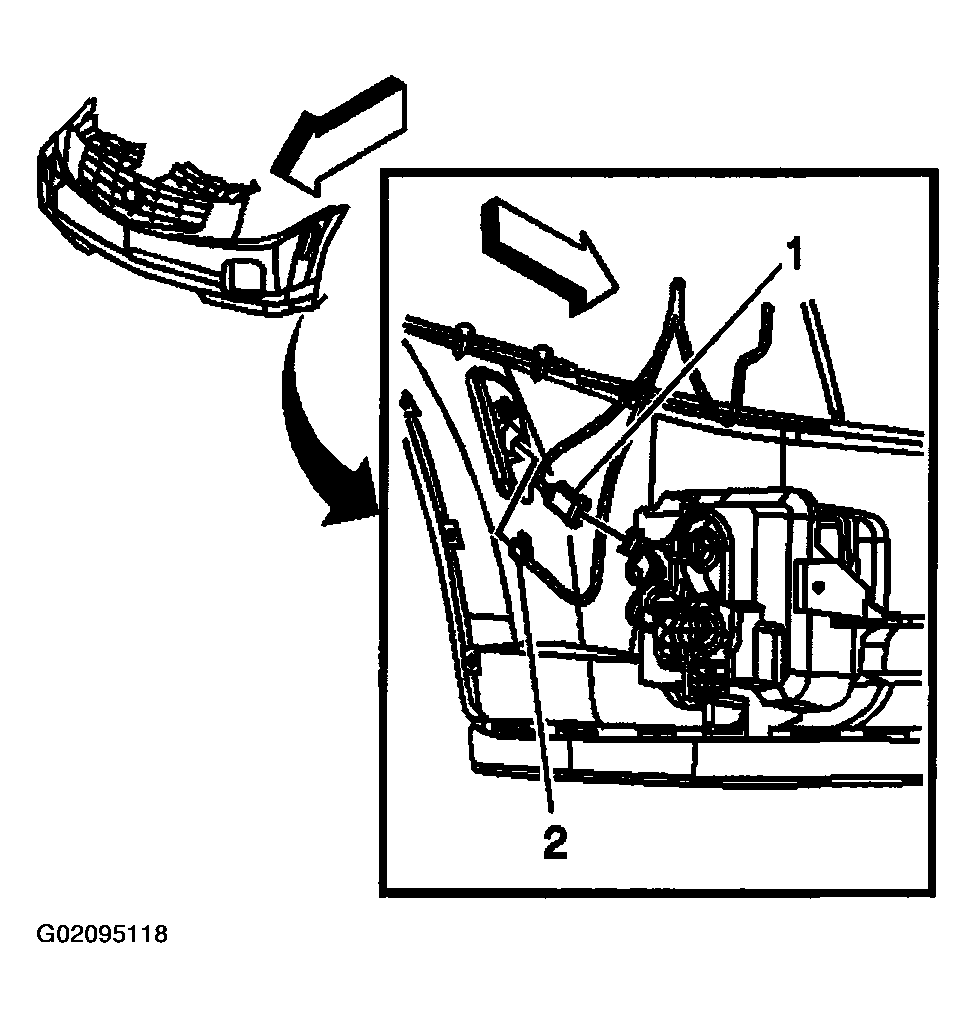

    Fig 1: Connecting Fog Lamp Electrical Connector
    G02095118Courtesy of GENERAL MOTORS CORP.
  4. Install the front air deflector. Refer to BUMPER SYSTEM in Body Front End.
