Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door wedge mounting bolts.
  2. Remove the wedge from the sliding door

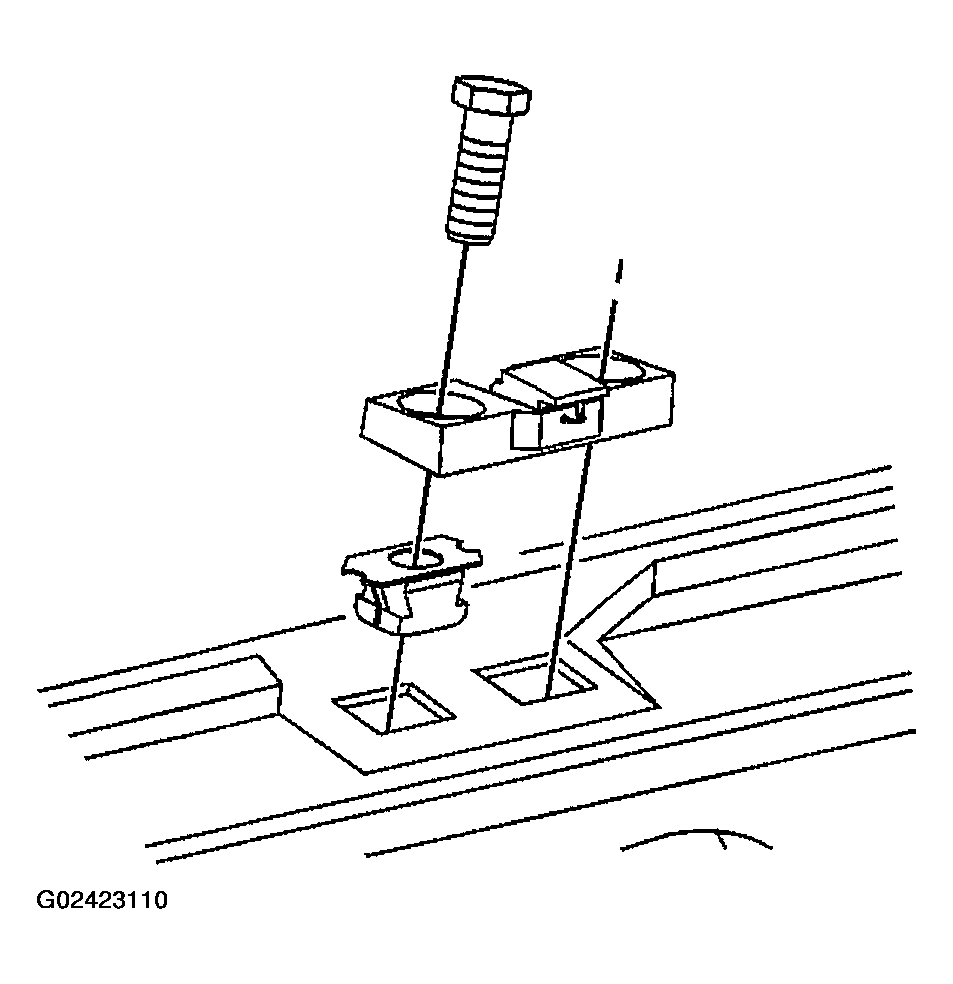

    Fig 1: Removing Sliding Door Wedge
    G02423110Courtesy of GENERAL MOTORS CORP.
