Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door lower trim panel. Refer to Trim Panel Replacement - Sliding Door .
  2. Remove the sliding side door control assembly. Refer to Door Control Replacement .
  3. Remove the lock rods from the lock.
  4. Remove the nuts and the bracket that retain the outside door handle to the sliding side door.
  5. Remove the sliding side door outside handle from the door.

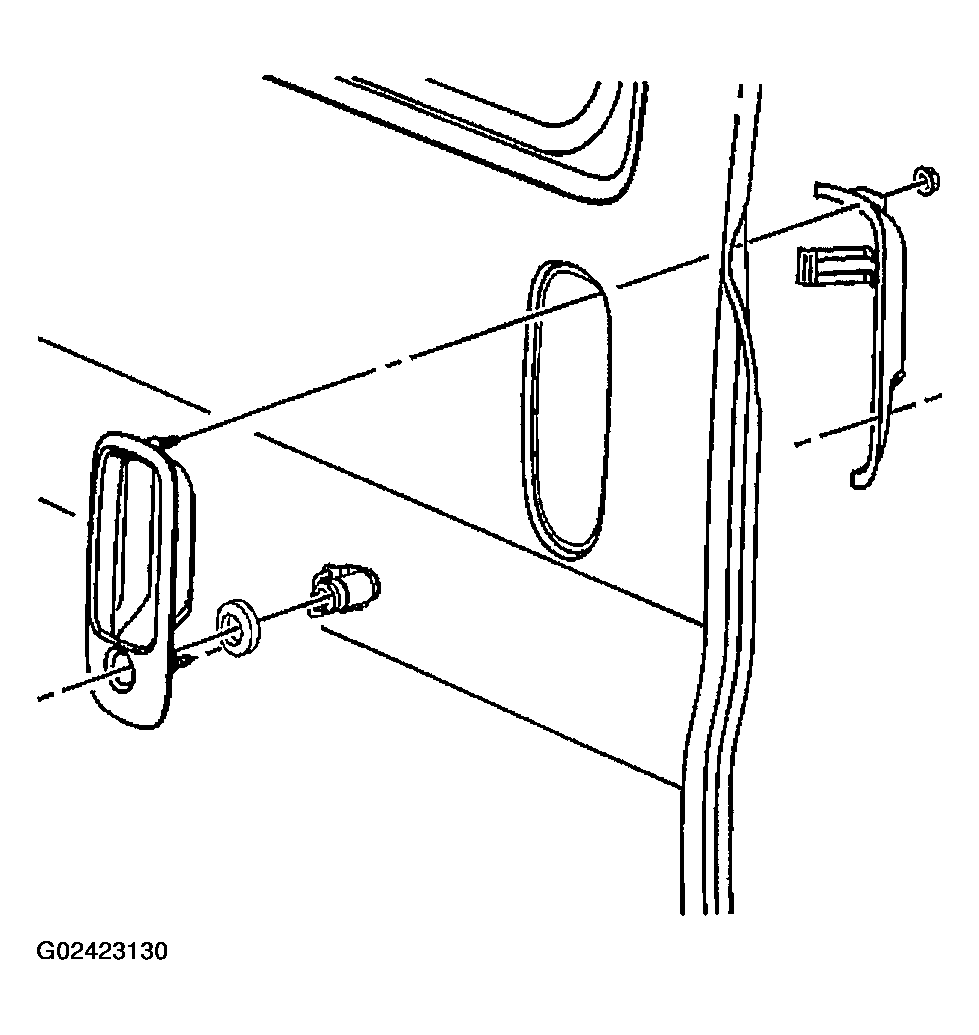

    Fig 1: Removing Outside Sliding Door Handle
    G02423130Courtesy of GENERAL MOTORS CORP.
