EVAP Canister: Installation

To install, reverse removal procedure. Tighten EVAP canister mounting bolts to specification. See TORQUE SPECIFICATIONS . Lower vehicle.

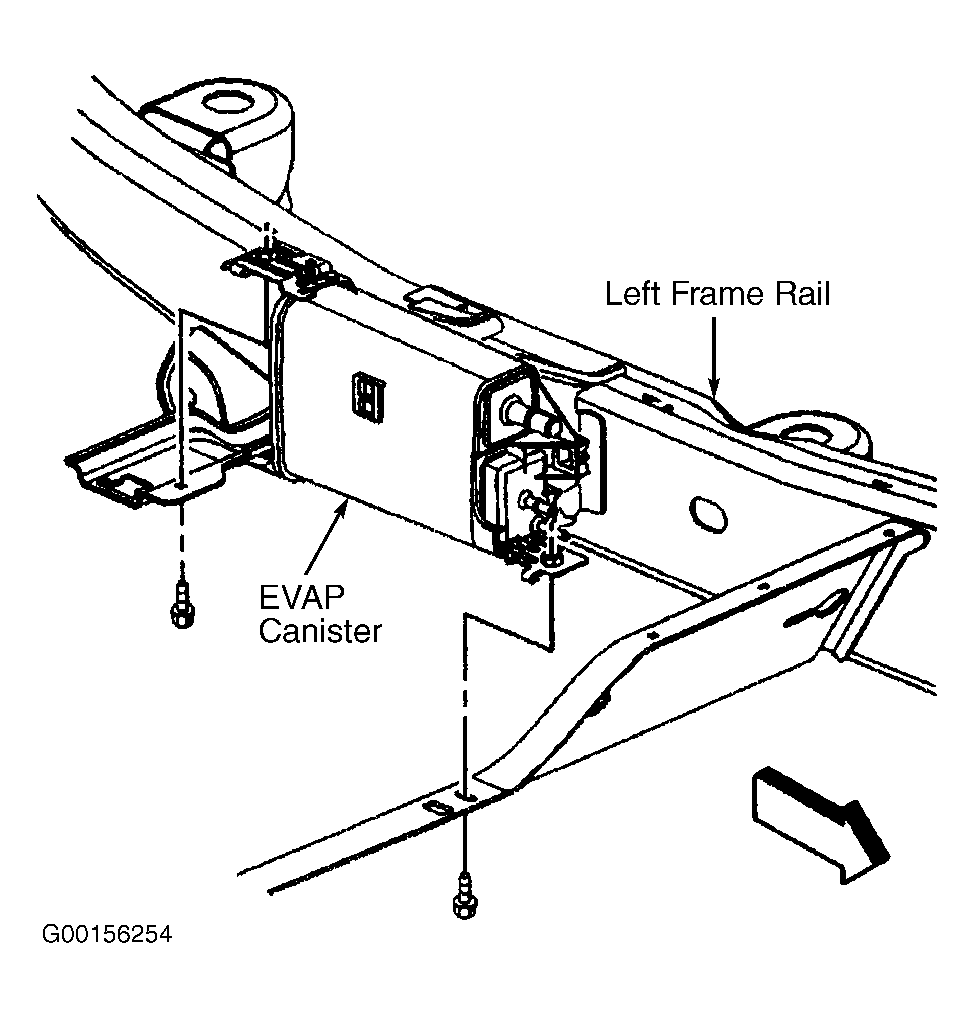

Fig 1: Locating EVAP Canister (Mounted To Frame Rail)
G00156254Courtesy of GENERAL MOTORS CORP.


To install, reverse removal procedure. Tighten EVAP canister mounting bolts to specification. See TORQUE SPECIFICATIONS . Lower vehicle.

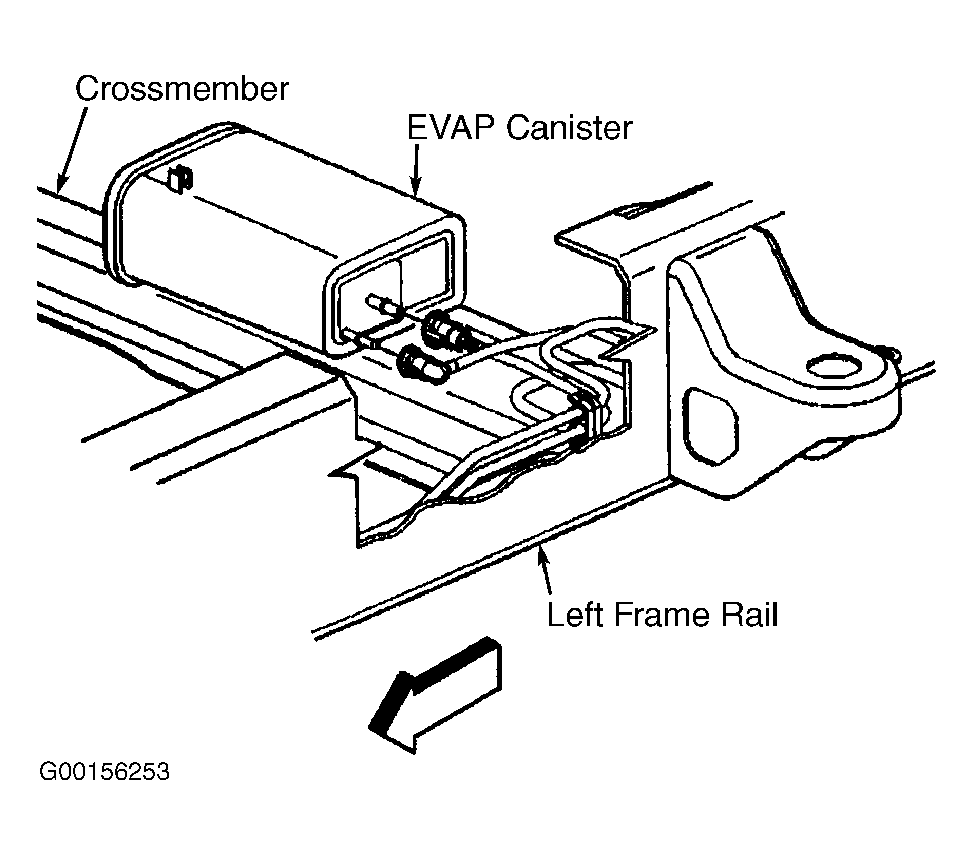

Fig 1: Locating EVAP Canister (Mounted To Crossmember)
G00156253Courtesy of GENERAL MOTORS CORP.
