HVAC Control Processor - Auxiliary Connector End View

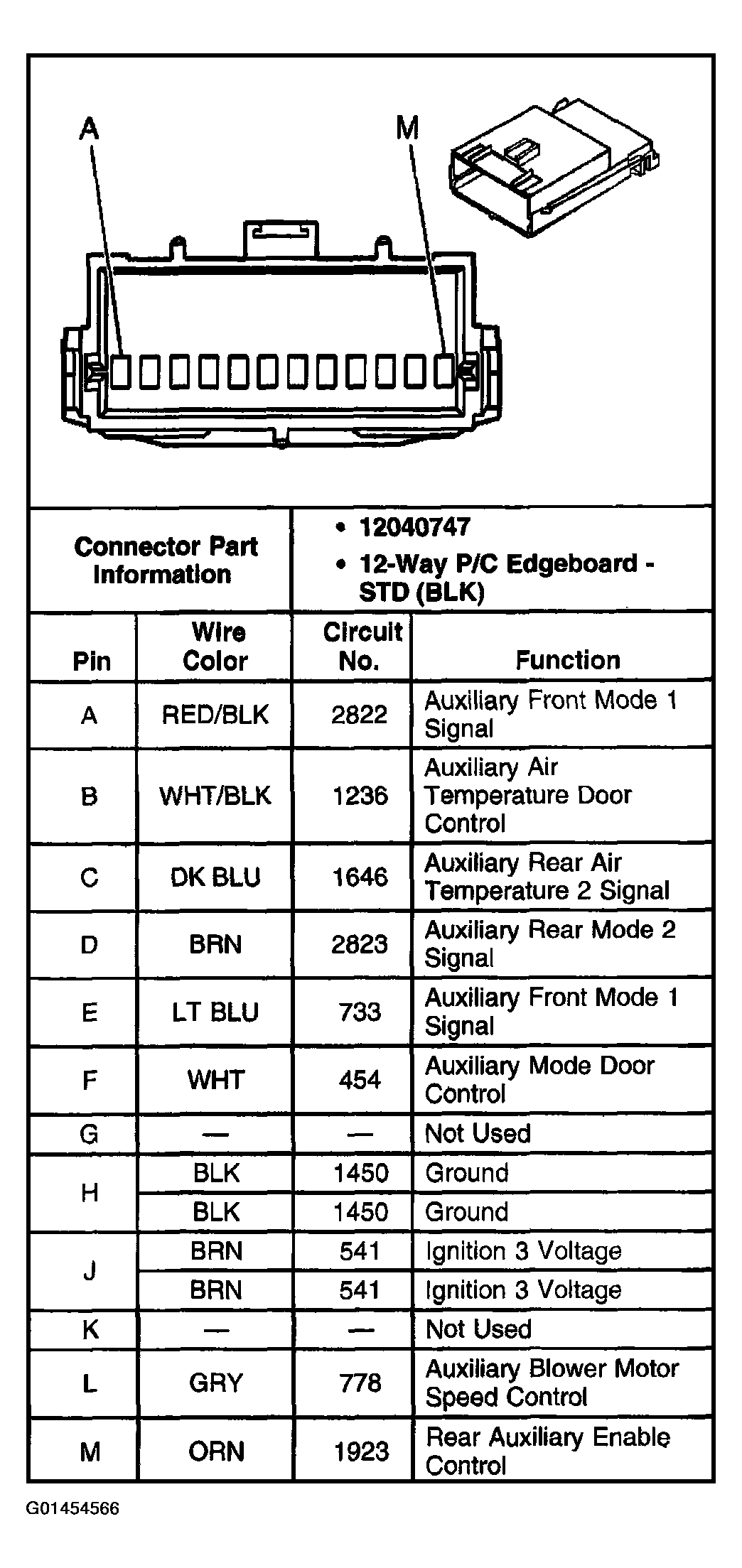

Fig 1: HVAC Control Processor - Auxiliary Connector End View
Courtesy of GENERAL MOTORS CORP.
