Removal Procedure

  1. Insert a flat-bladed tool between the door handle bezel and the trim panel in order to release the handle bezel tab retainers.
  2. Remove the door handle bezel from the door panel.

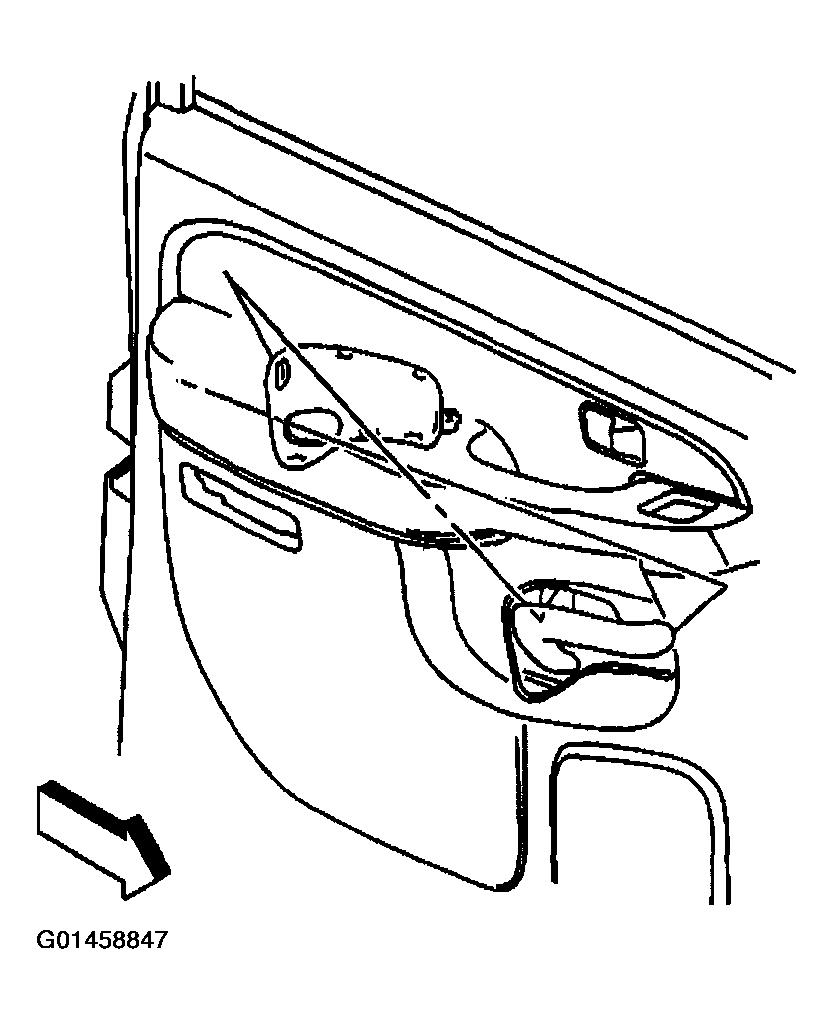

    3. Fig 1: Handle Bezel Replacement Procedure
    G01458847Courtesy of GENERAL MOTORS CORP.
