Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the mounting bolts from the inside door handle.

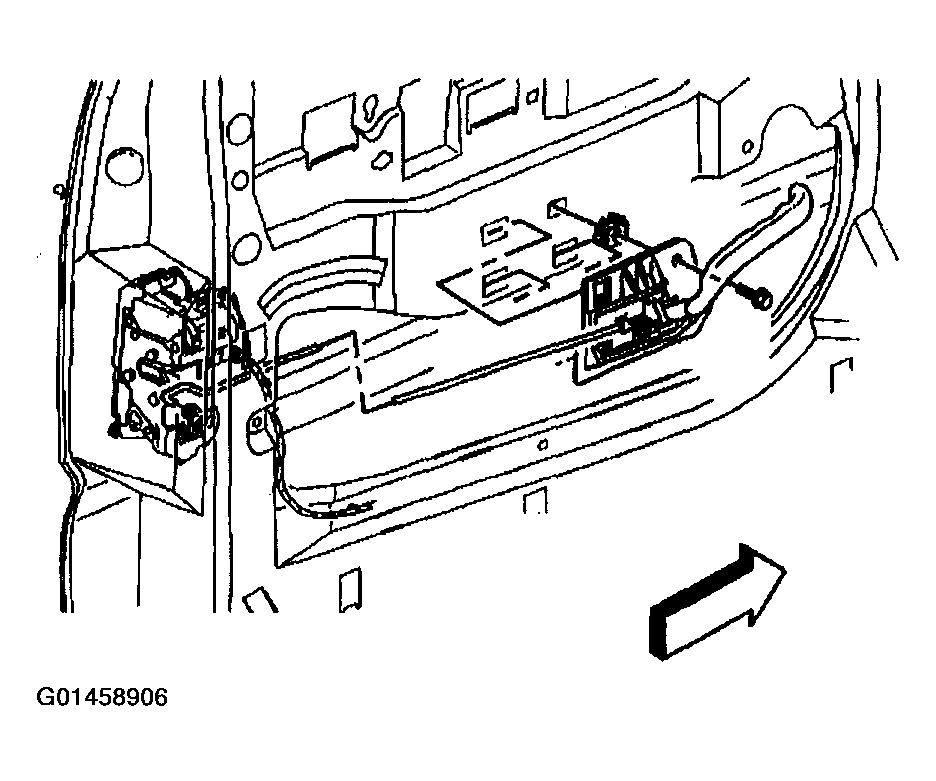

    3. Fig 1: Removing Door Handle Inside
    G01458906Courtesy of GENERAL MOTORS CORP.
  3. Slide the inside door handle forward in order to release the unit from the door.
  4. Disconnect the control rod from the inside door handle.
  5. Remove the door handle assembly from the door.

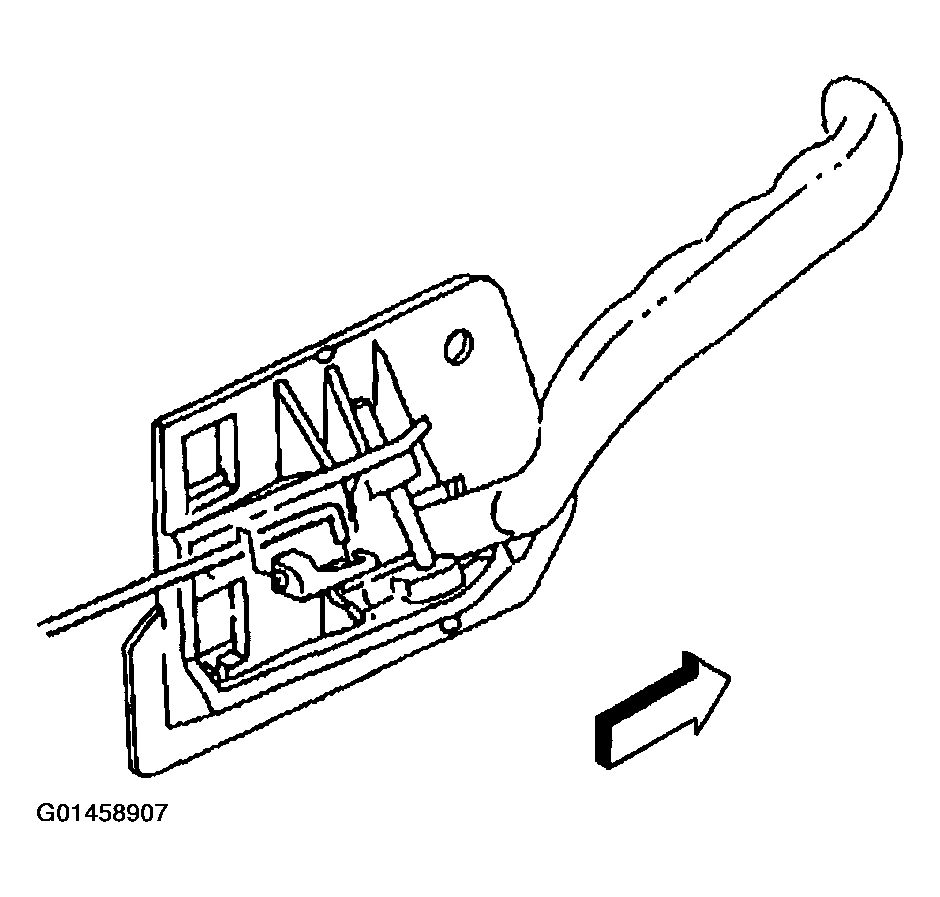

    6. Fig 2: Removing Door Handle Assembly Arm Door
    G01458907Courtesy of GENERAL MOTORS CORP.
