Removal Procedure

  1. Raise the vehicle. Refer to JACKING AND LIFTING - AVALANCHE in General Information.
  2. Support the transmission with a transmission jack.
  3. Remove the nut retaining the transmission mount to the transmission support.
  4. Raise the rear of the transmission.

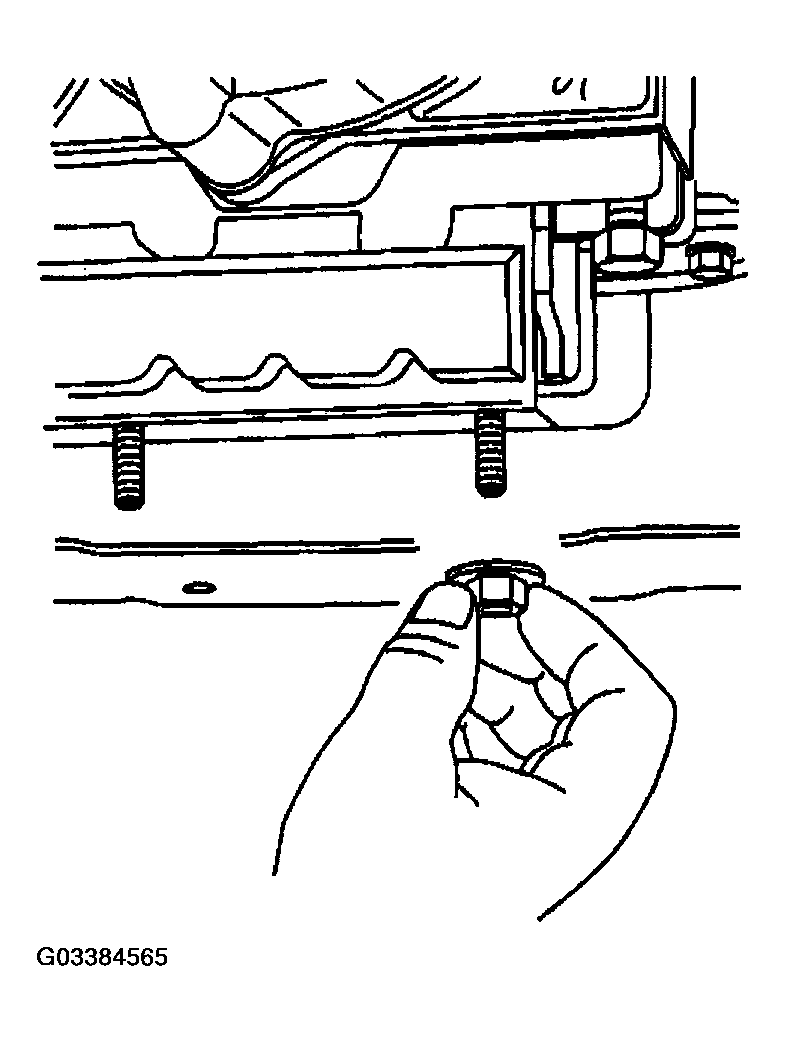

    Fig 1: Removing Nut Retaining Transmission Mount To Transmission Support
    G03384565Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts and the nuts retaining the transmission support to the frame. (15 series)

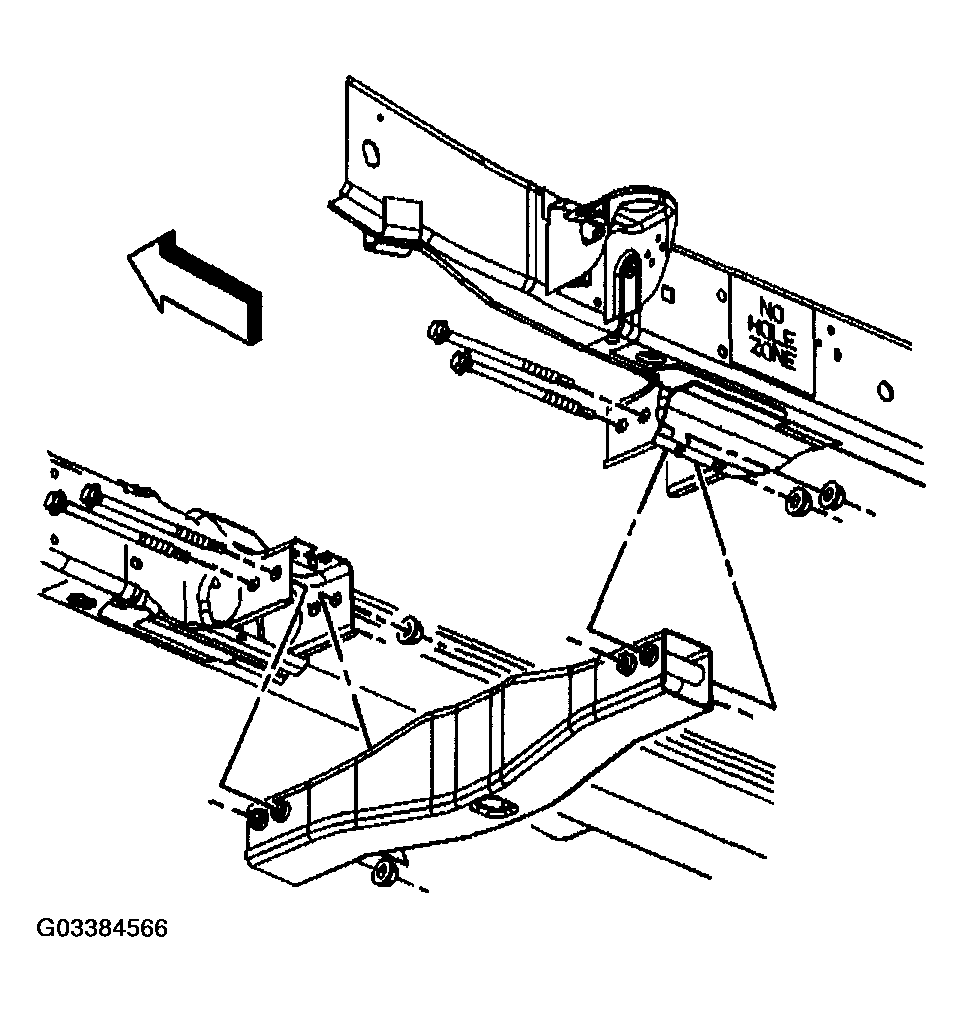

    Fig 2: Removing Bolts And Nuts Retaining Transmission Support To Frame
    G03384566Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts and the nuts retaining the transmission support to the frame. (25/35 series)
  7. Remove the transmission support from the frame.

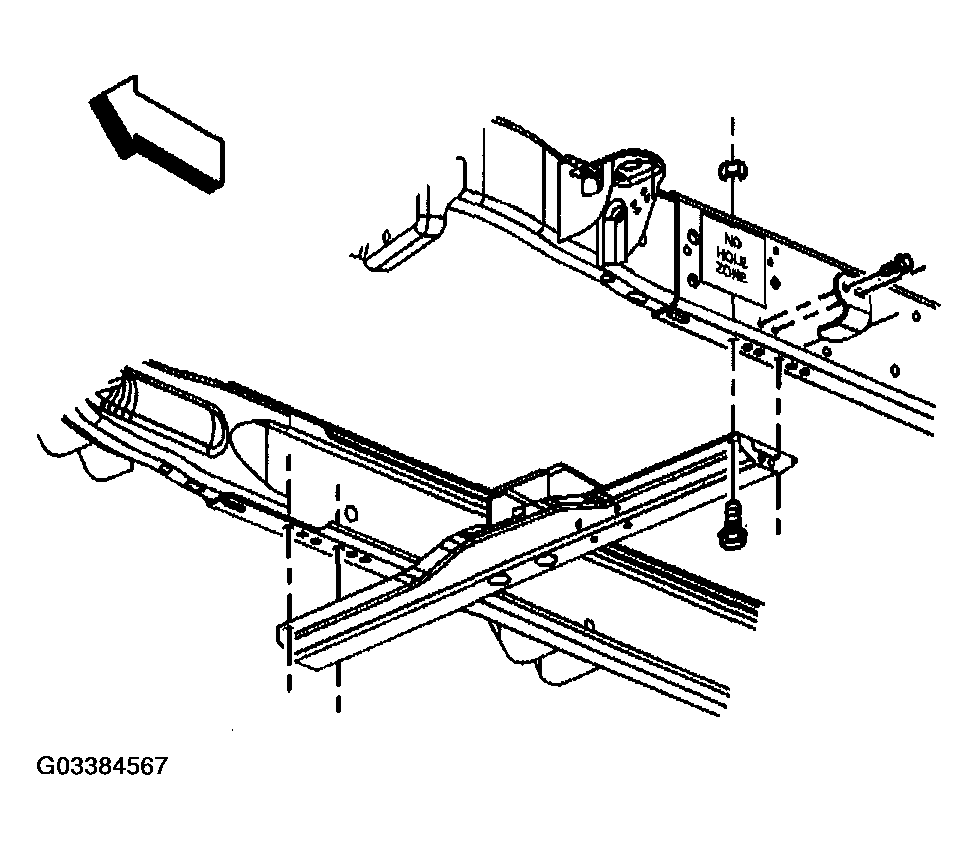

    Fig 3: Removing Transmission Support From Frame
    G03384567Courtesy of GENERAL MOTORS CORP.
