Cadillac
>>
2003
>>
Escalade EXT
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Navigation Systems
>>
Schematic and Routing Diagrams
>>
Navigation System Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Navigation System Schematics

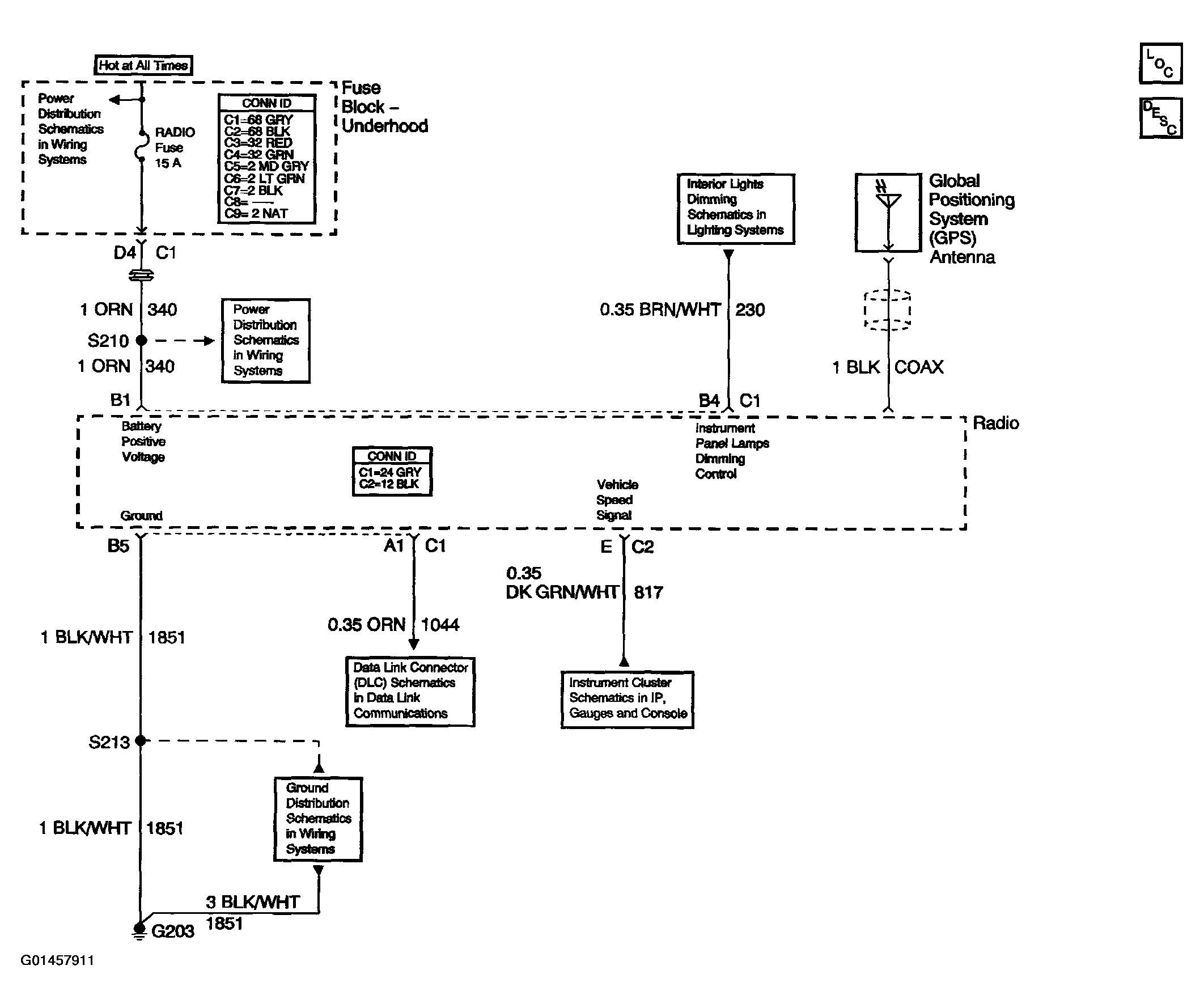

Fig 1: Navigation System Schematics Diagram
Courtesy of GENERAL MOTORS CORP.
