Scan Tool Data List

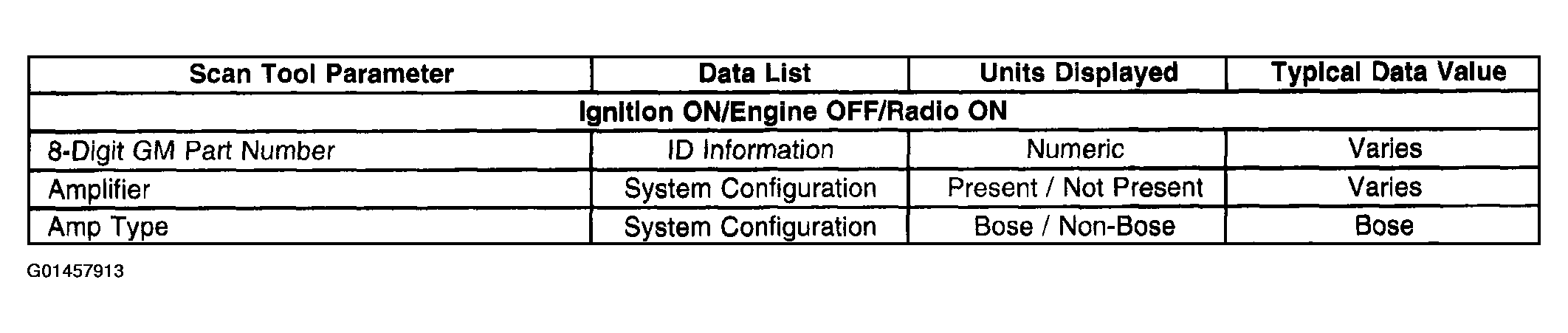

Fig 1: Scan Tool Data - Radio (1 Of 2)
G01457913Courtesy of GENERAL MOTORS CORP.

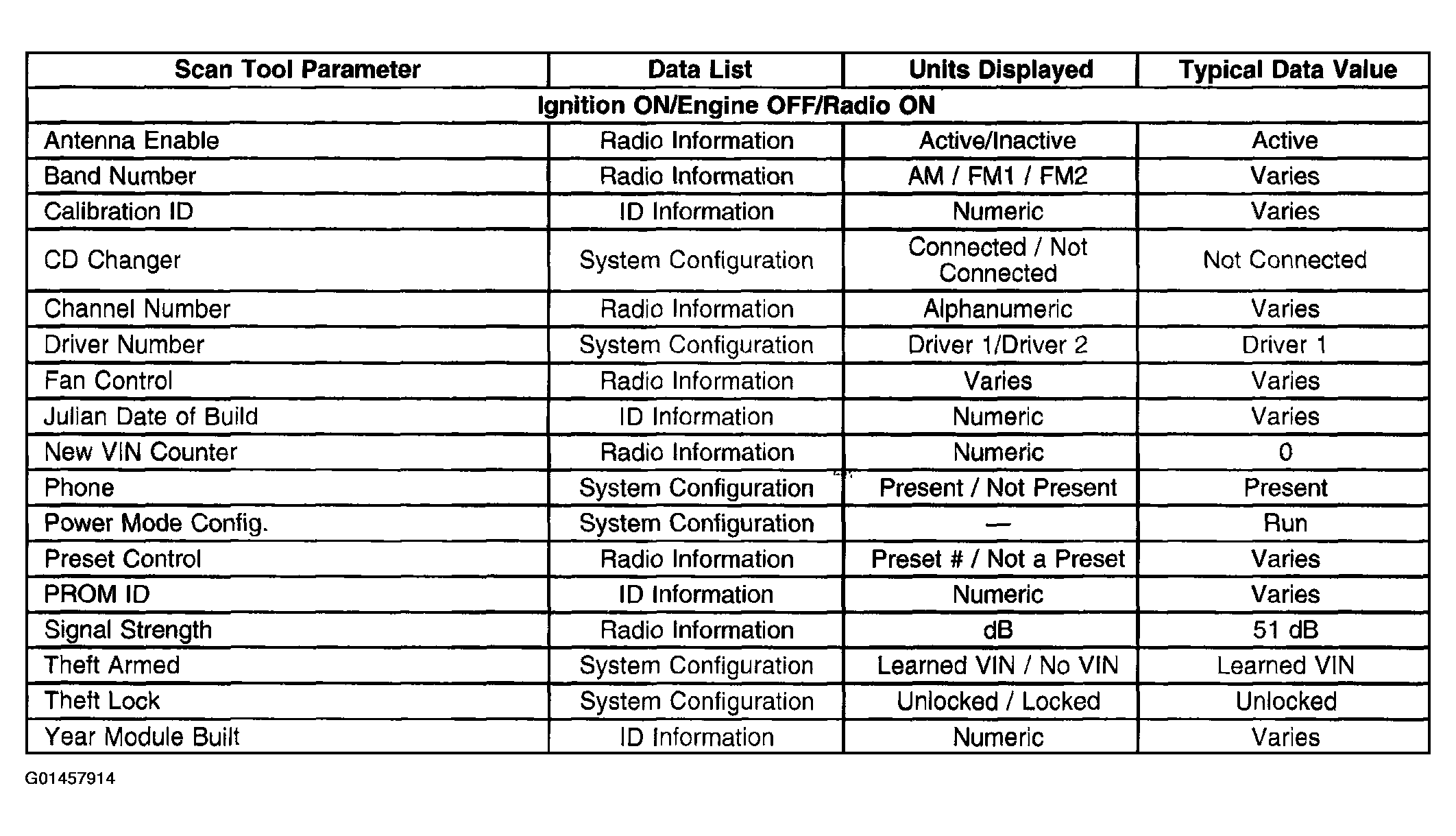

Fig 2: Scan Tool Data - Radio (2 Of 2)
G01457914Courtesy of GENERAL MOTORS CORP.
