Scan Tool Data List

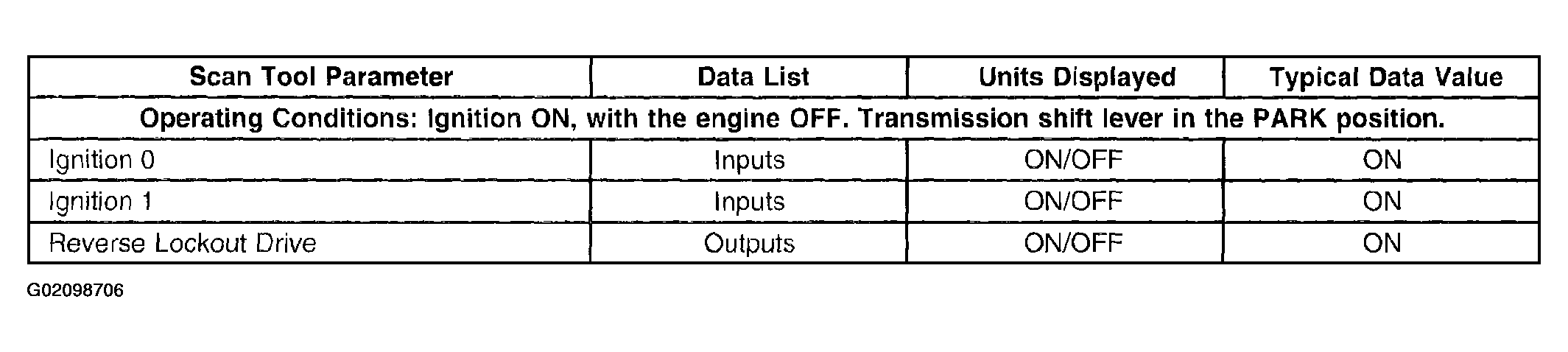

Fig 1: Scan Tool Data List - Dash Integration Module
G02098706Courtesy of GENERAL MOTORS CORP.

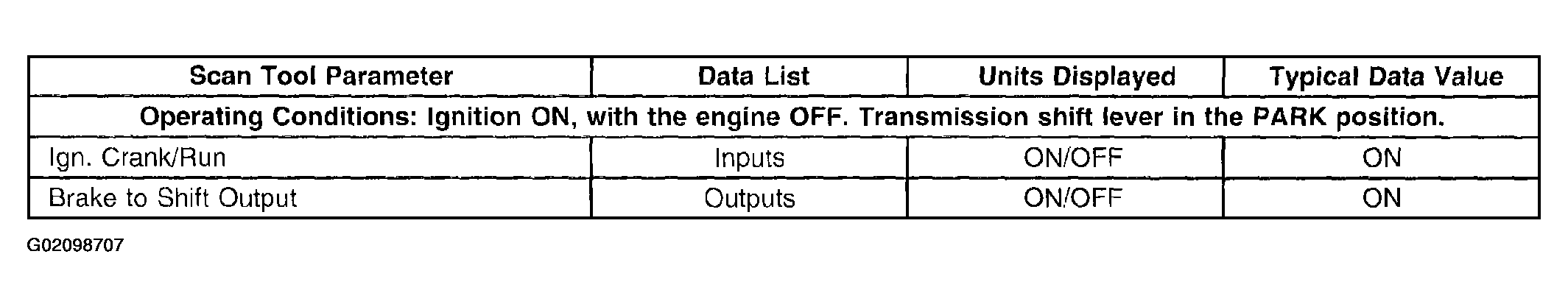

Fig 2: Scan Tool Data List - Rear Integration Module
G02098707Courtesy of GENERAL MOTORS CORP.

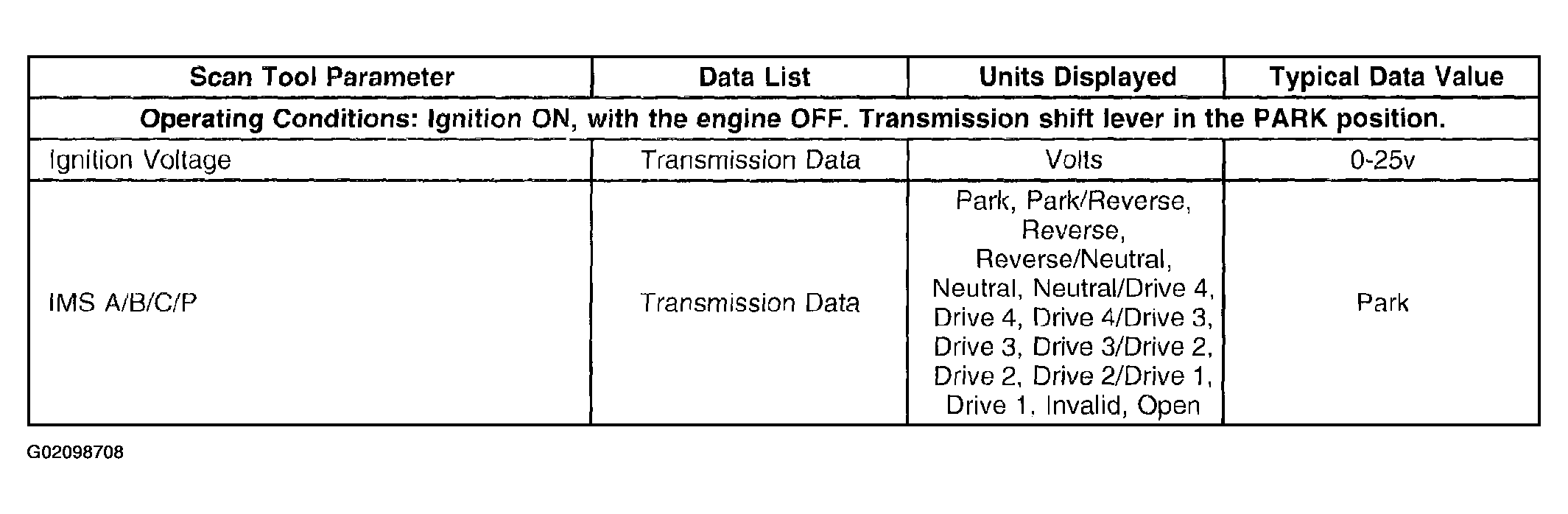

Fig 3: Scan Tool Data List - Powertrain Control Module (PCM)
G02098708Courtesy of GENERAL MOTORS CORP.
