Seat Massage Module Connector End View - Front Passenger

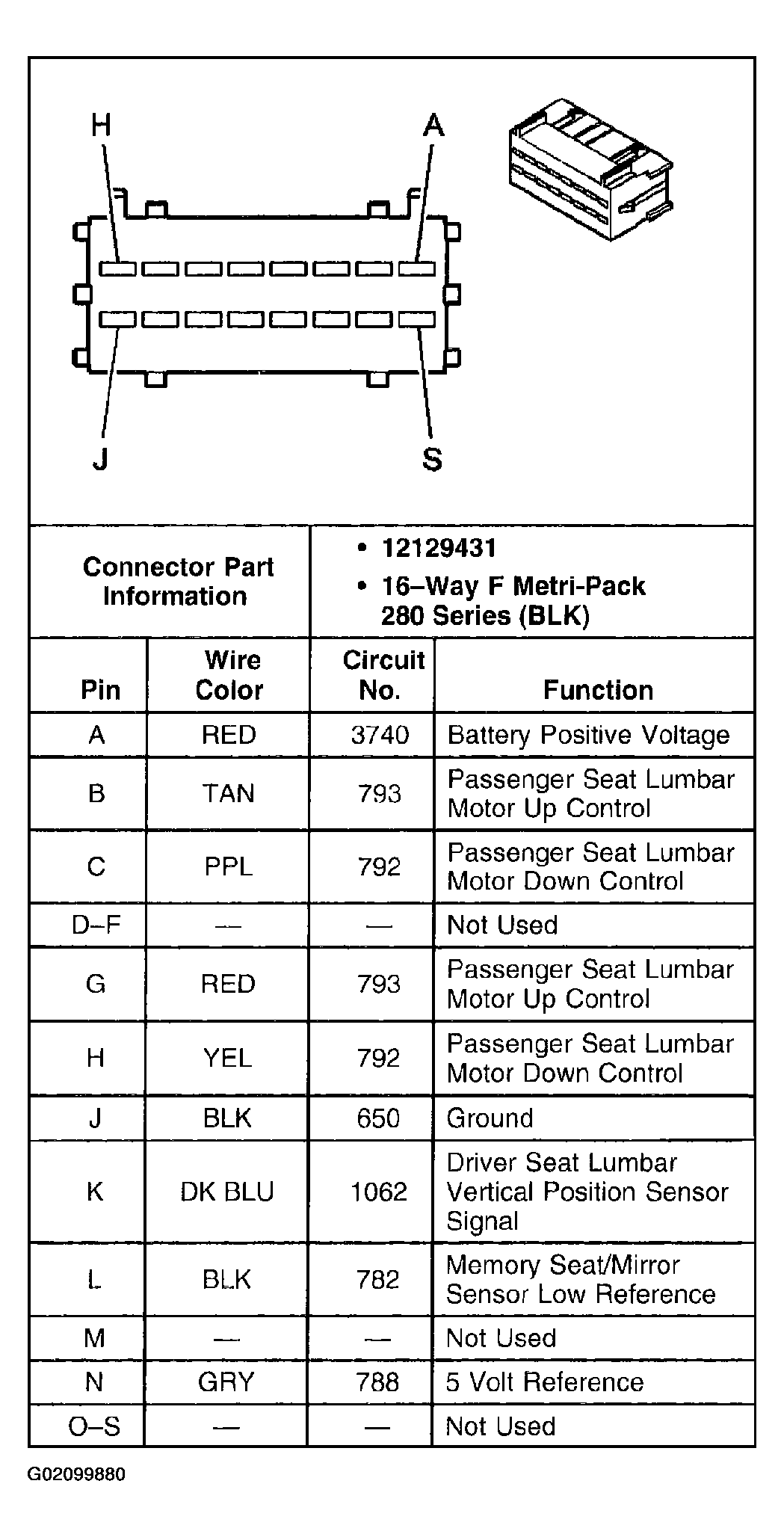

Fig 1: Seat Massage Module - Front Passenger (AM3)
G02099880Courtesy of GENERAL MOTORS CORP.
