Seat Massage Module Connector End View - Driver

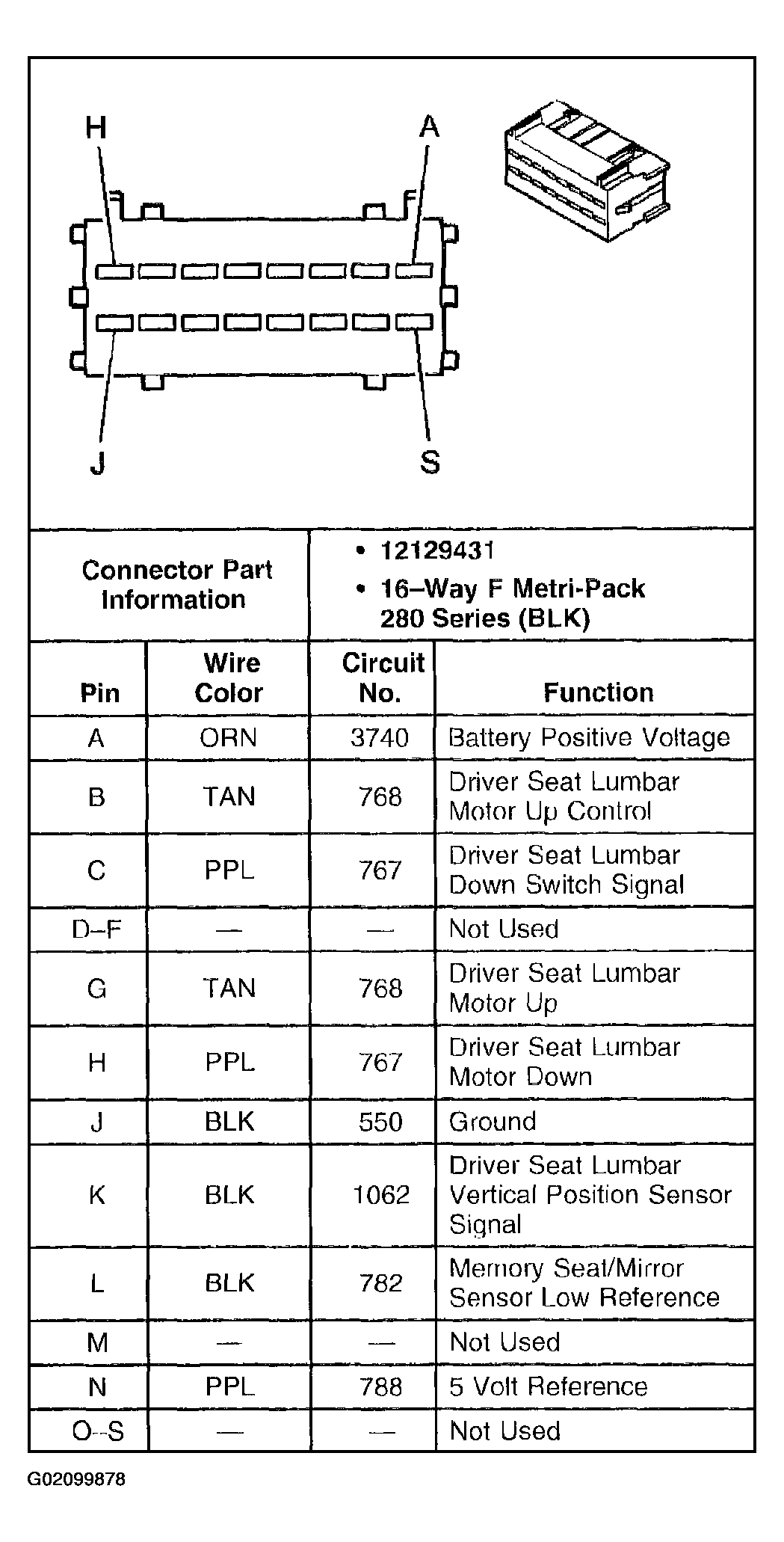

Fig 1: Seat Massage Module - Driver
G02099878Courtesy of GENERAL MOTORS CORP.

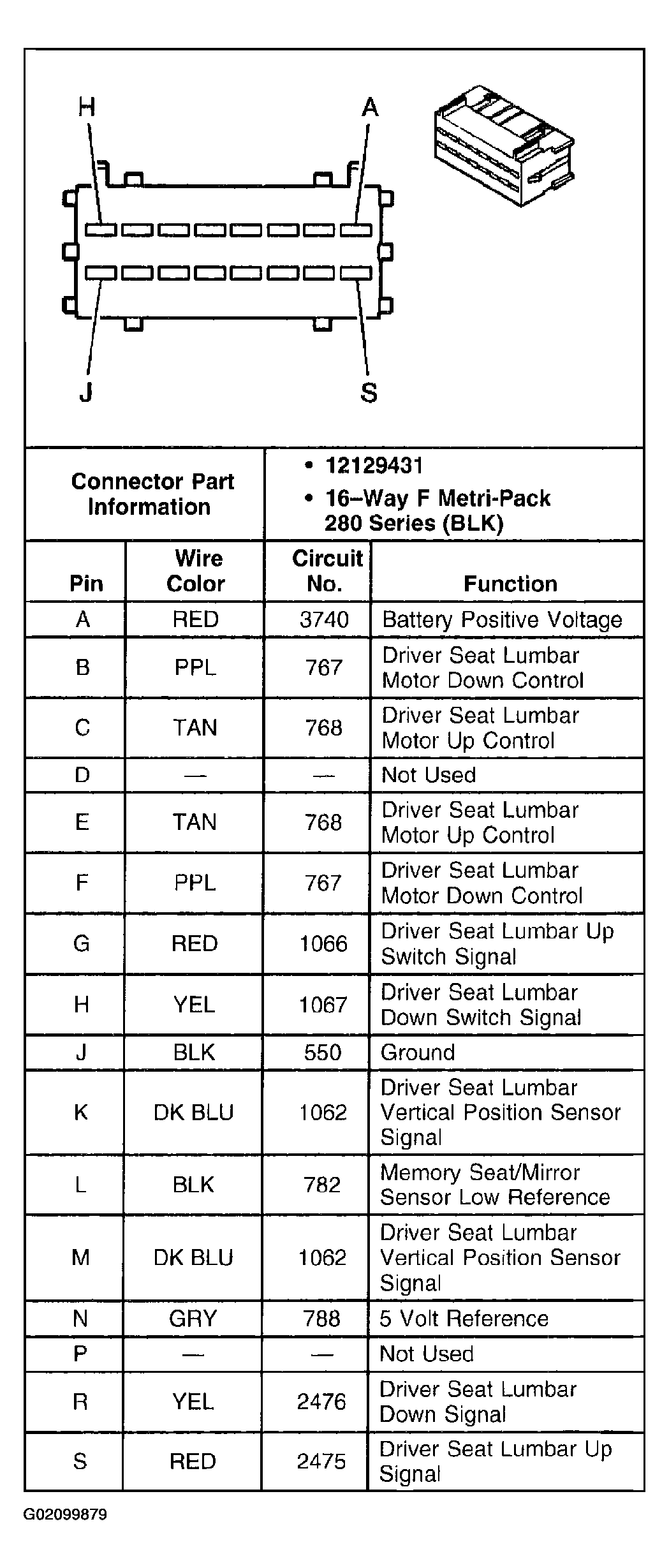

Fig 1: Seat Massage Module - Driver (w/A45)
G02099879Courtesy of GENERAL MOTORS CORP.
