Cellular Telephone Module Connector End View (1 Of 2)

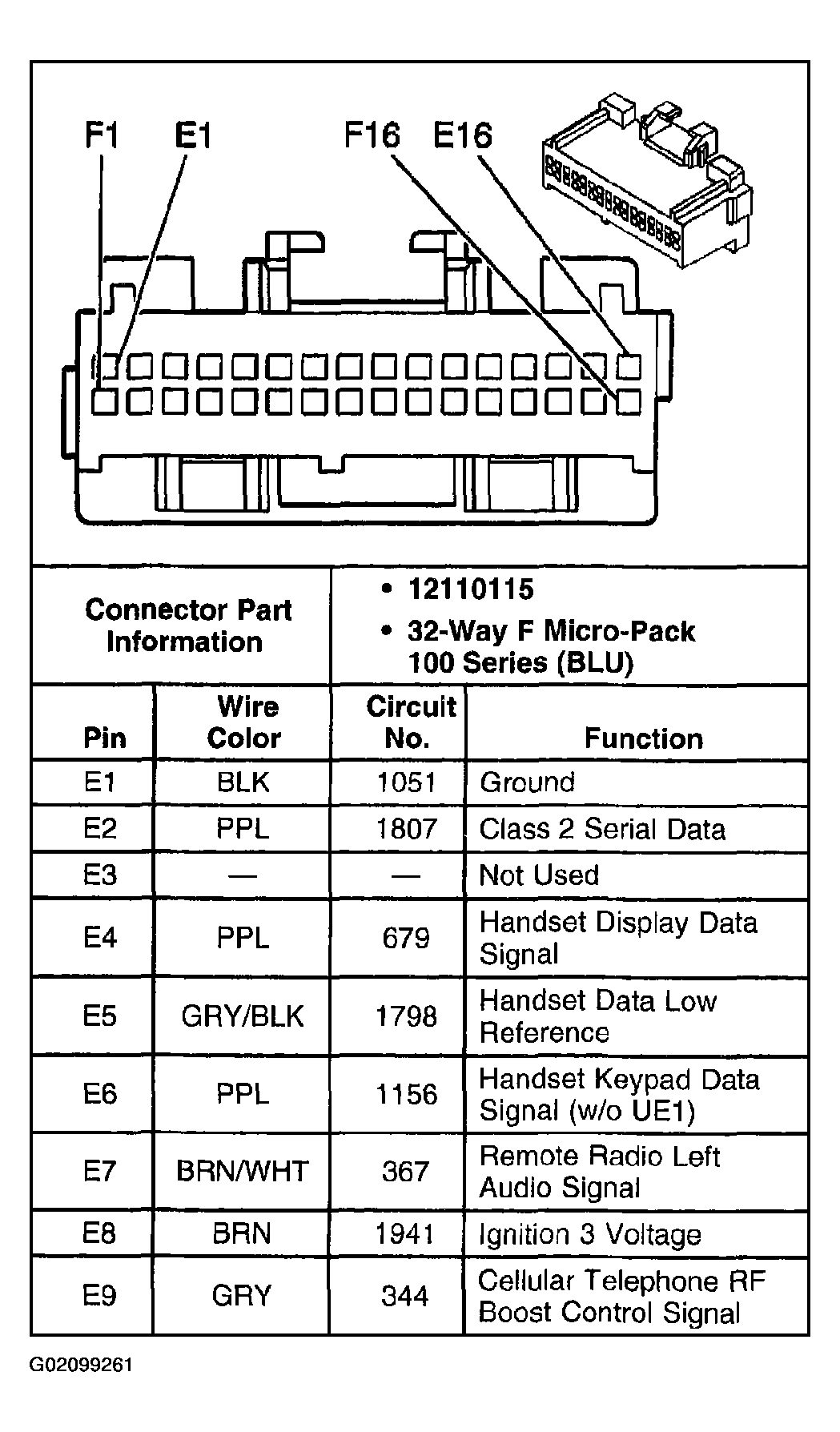

Fig 1: Cellular Telephone Module (1 Of 2)
G02099261Courtesy of GENERAL MOTORS CORP.
