Adaptive Seat Lumbar Module Connector End View - Front Passenger

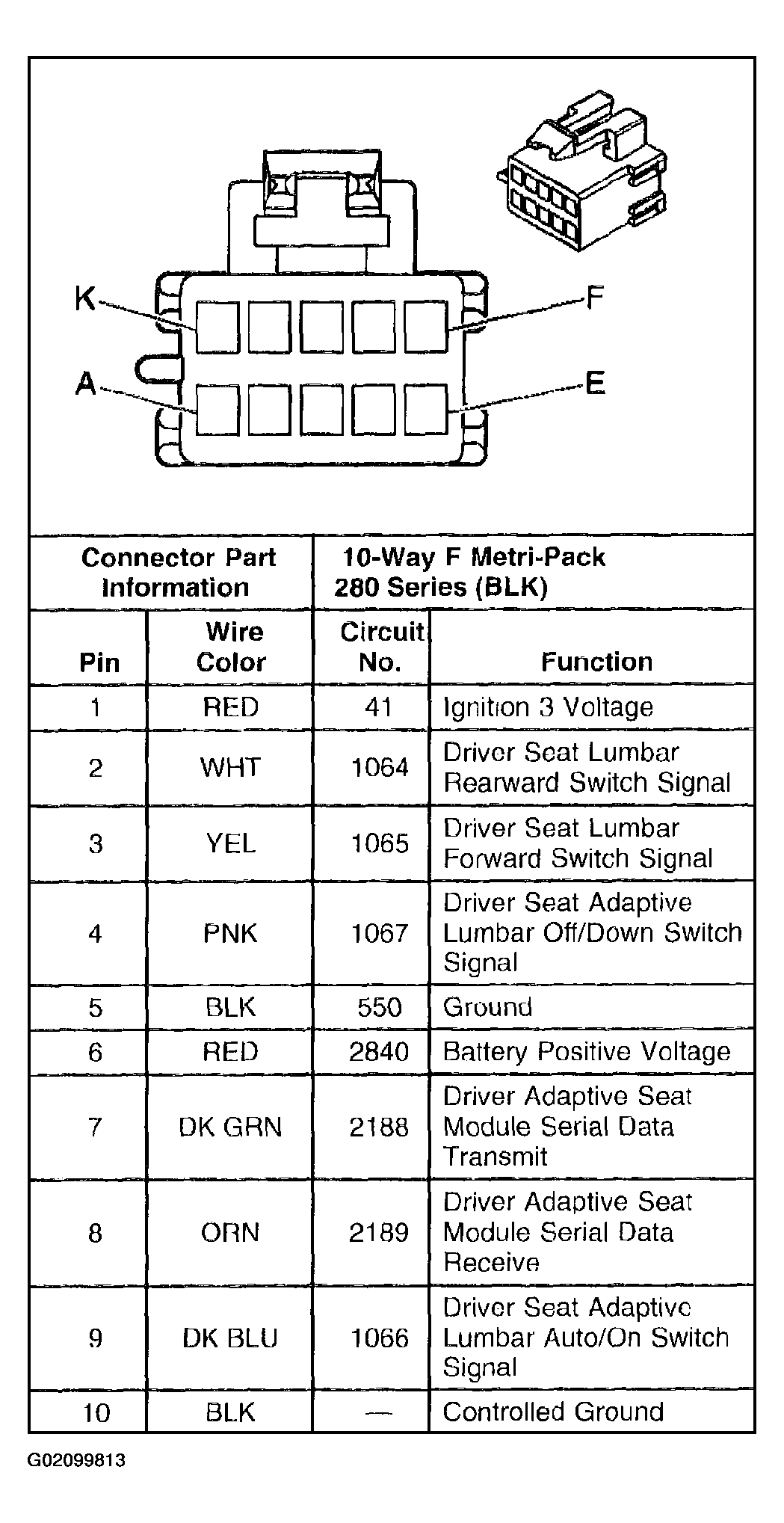

Fig 1: Adaptive Seat Lumbar Module - Front Passenger (w/AC9)
G02099813Courtesy of GENERAL MOTORS CORP.
