Adaptive Seat Lumbar Module Connector End View - Driver

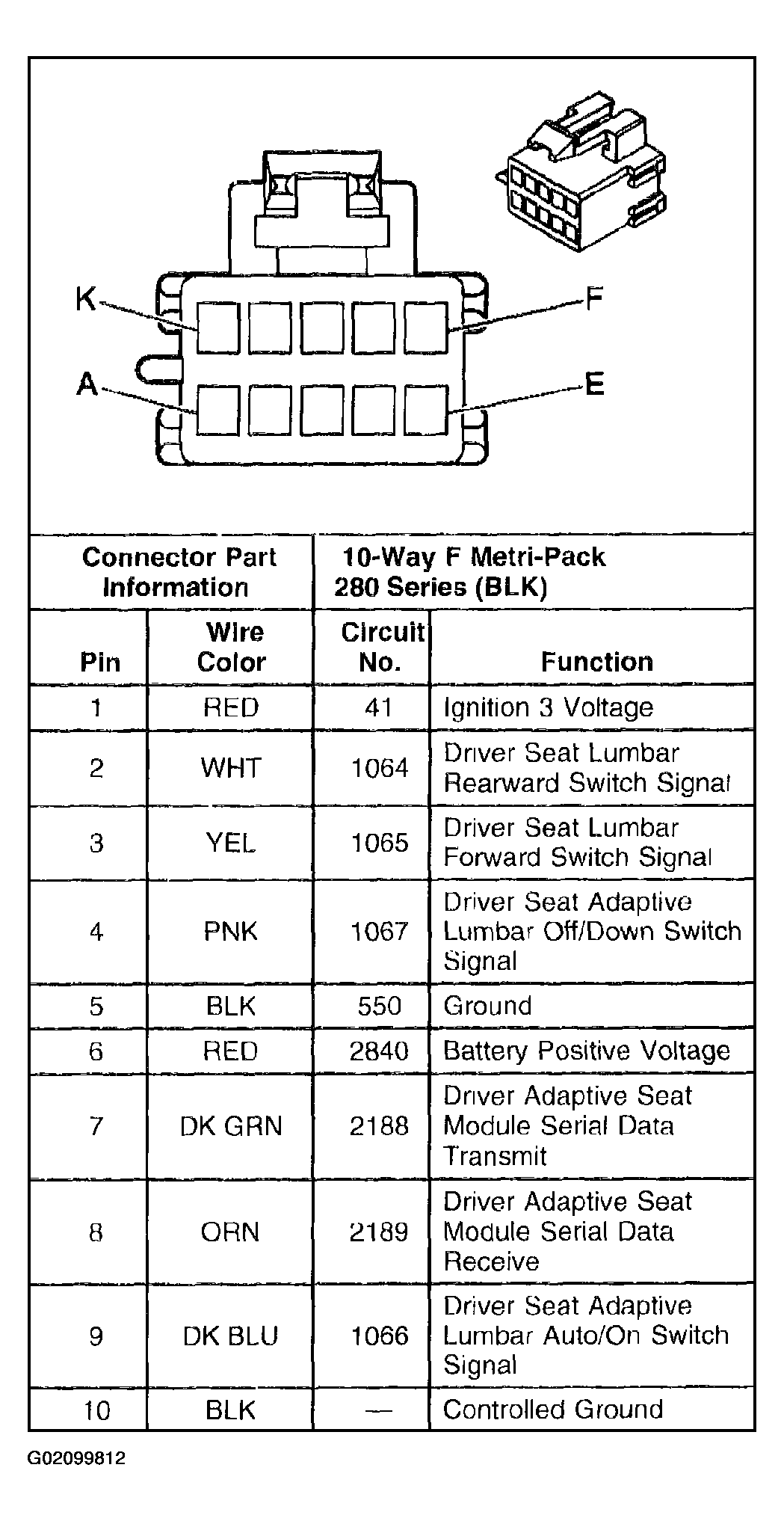

Fig 1: Adaptive Seat Lumbar Module - Driver (w/AC9)
G02099812Courtesy of GENERAL MOTORS CORP.
