Installation Procedure

  1. Install the top retainer to the rear door latch pillar.
  2. Position the locator into the upper corner of the windshield pillar.
  3. Working rearward along the header, install the sealing strip to the flange.
  4. At the locator working downward along the windshield pillar, install the sealing strip to the flange.
  5. Install the 2 retainers.
  6. Install the remaining retainers to the rear door latch pillar.

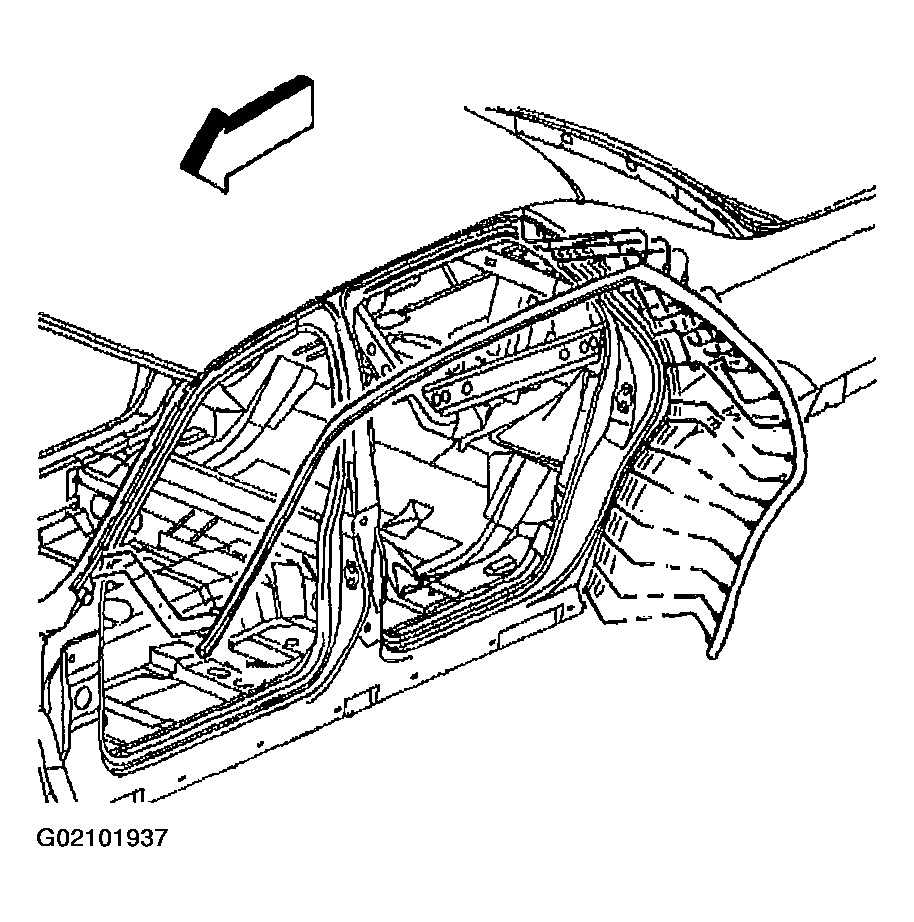

    Fig 1: Installing Auxiliary Weatherstrip
    G02101937Courtesy of GENERAL MOTORS CORP.
