Radiator Support: Service and Repair

Radiator Support Bracket Replacement


Removal Procedure







1. Remove the condenser seal (1).

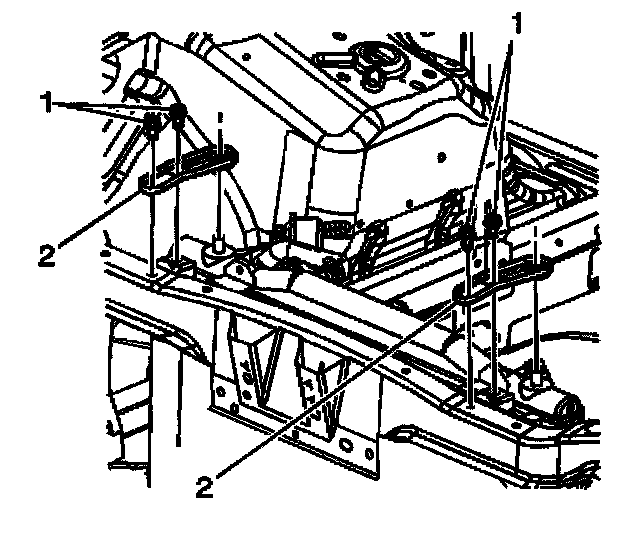

2. Remove the radiator support bolts (1).
3. Remove the radiator support brackets (2).



Installation Procedure







1. Install the radiator support brackets (2).

Notice: Refer to Fastener Notice in Service Precautions.
Fastener Notice

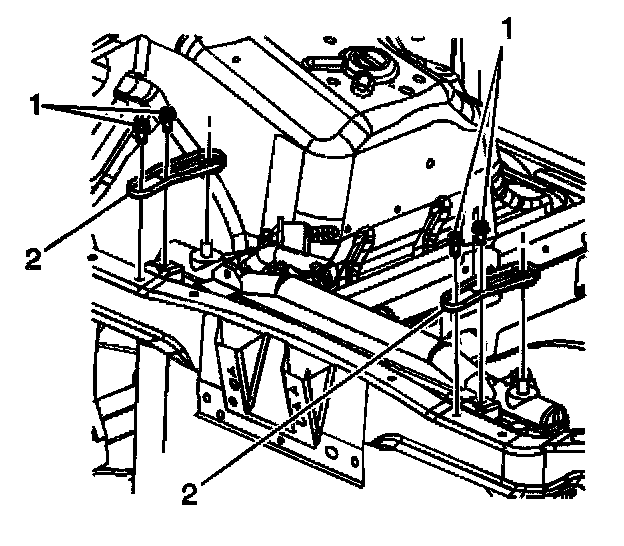

2. Install the radiator support bolts (1).
Tighten the bolts to 9 Nm (80 inch lbs.).







3. Install the condenser seal (1).
