Manual Transmission - M35 (Unit Repair)
>>
Specifications
>>
Synchromesh Ring Specifications
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Synchromesh Ring Specifications

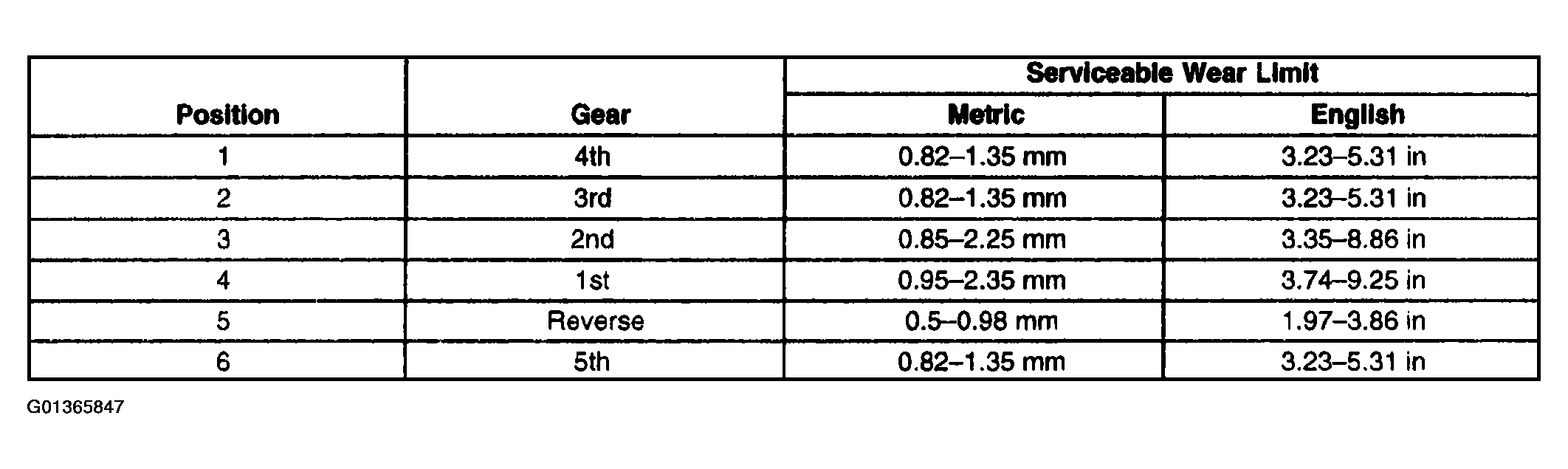

Fig 1: Synchromesh Ring Specifications
Courtesy of GENERAL MOTORS CORP.
