Disassembled Views

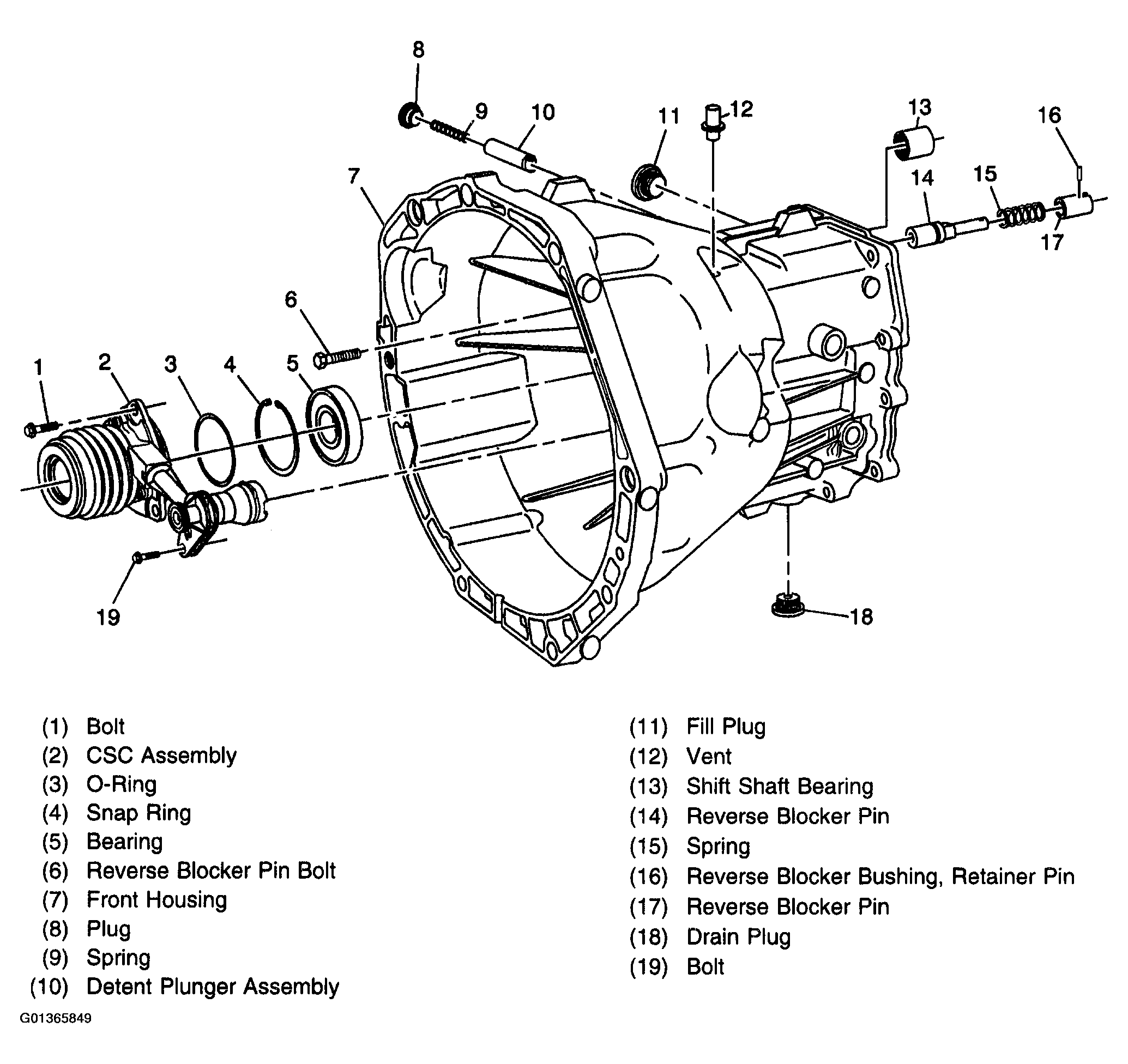

Fig 1: Disassembled Views - Front Unit

Courtesy of GENERAL MOTORS CORP.

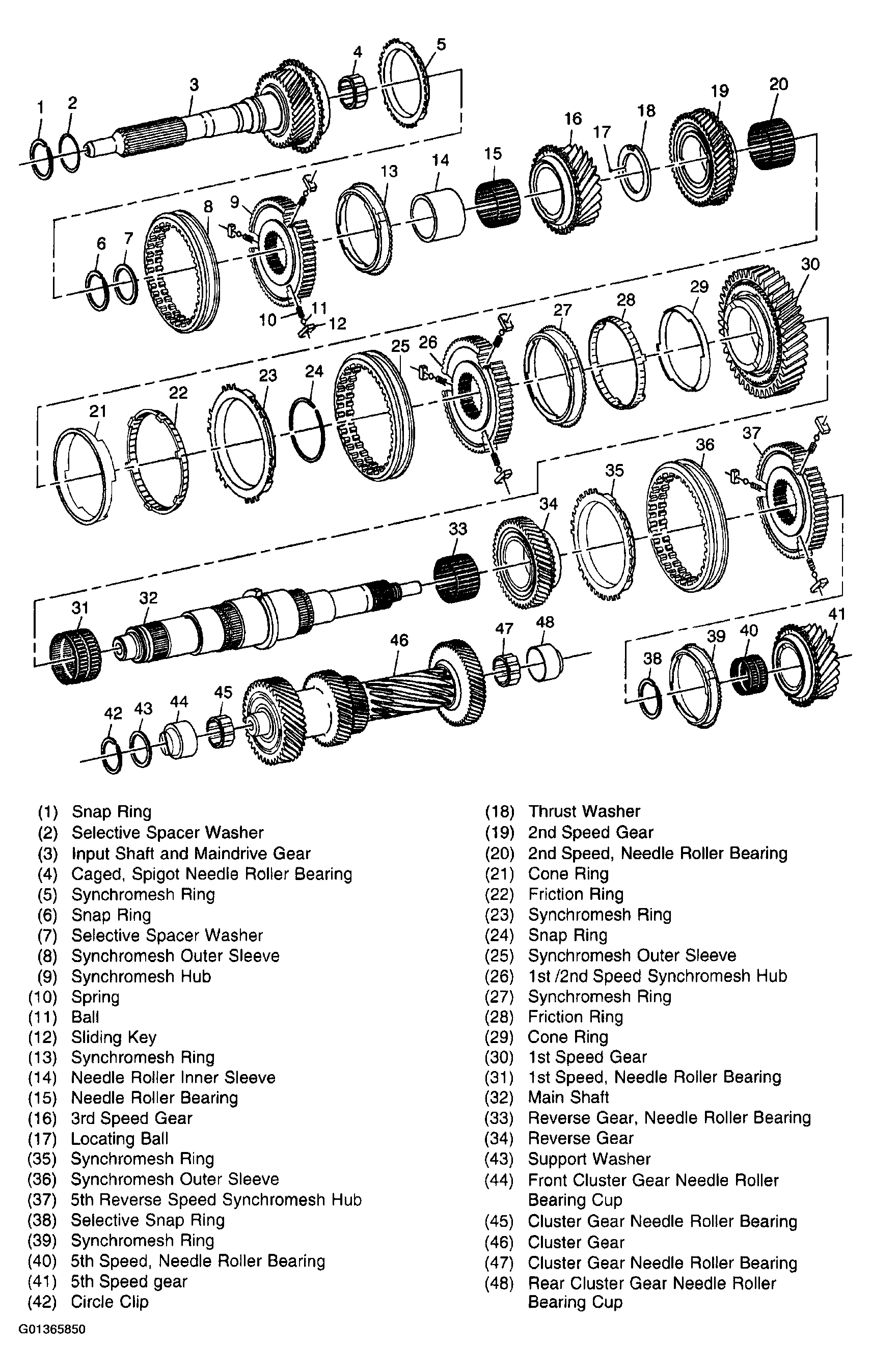

Fig 2: Disassembled Views - Gears

Courtesy of GENERAL MOTORS CORP.

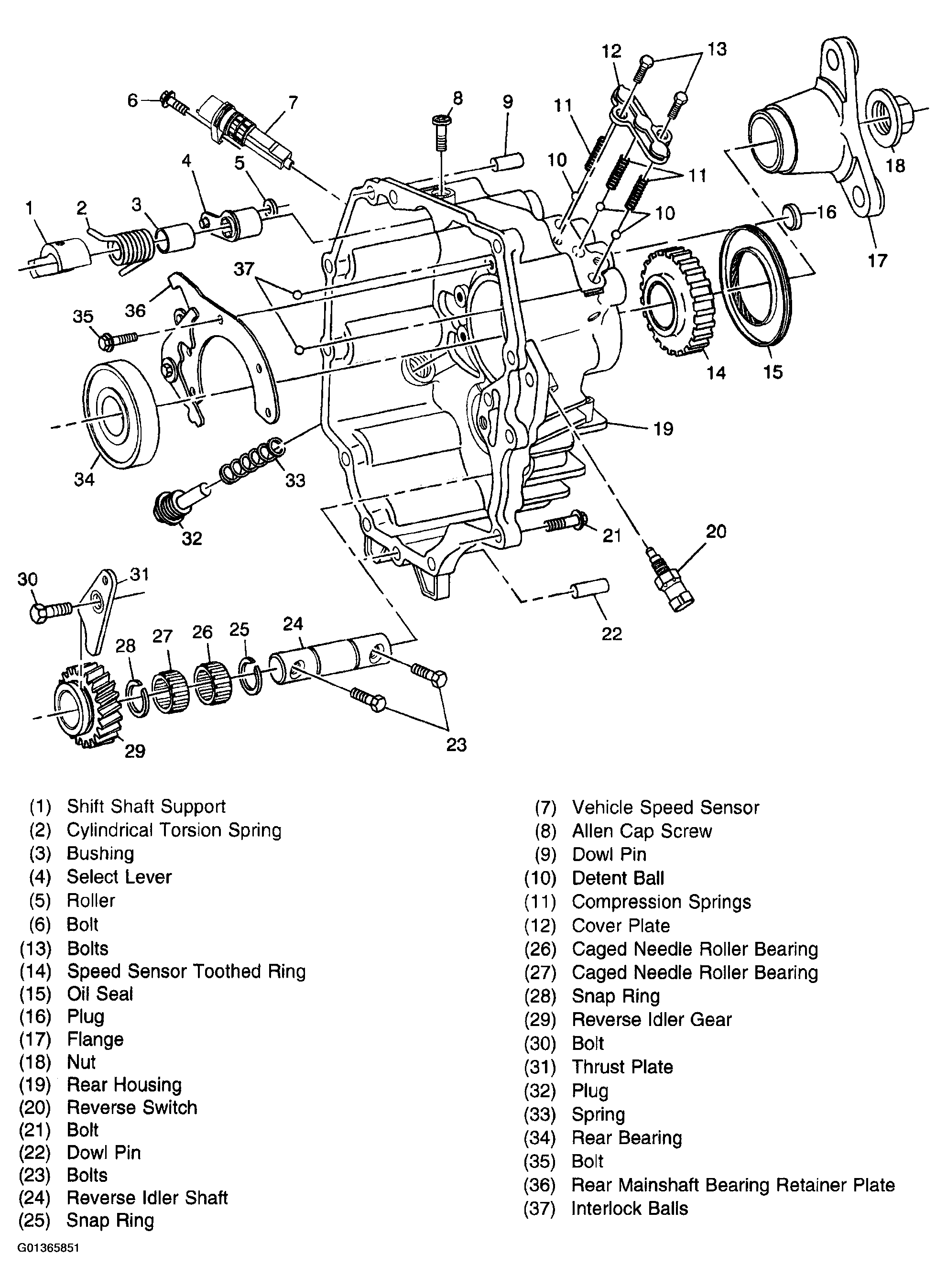

Fig 3: Disassembled Views - Rear Unit

Courtesy of GENERAL MOTORS CORP.

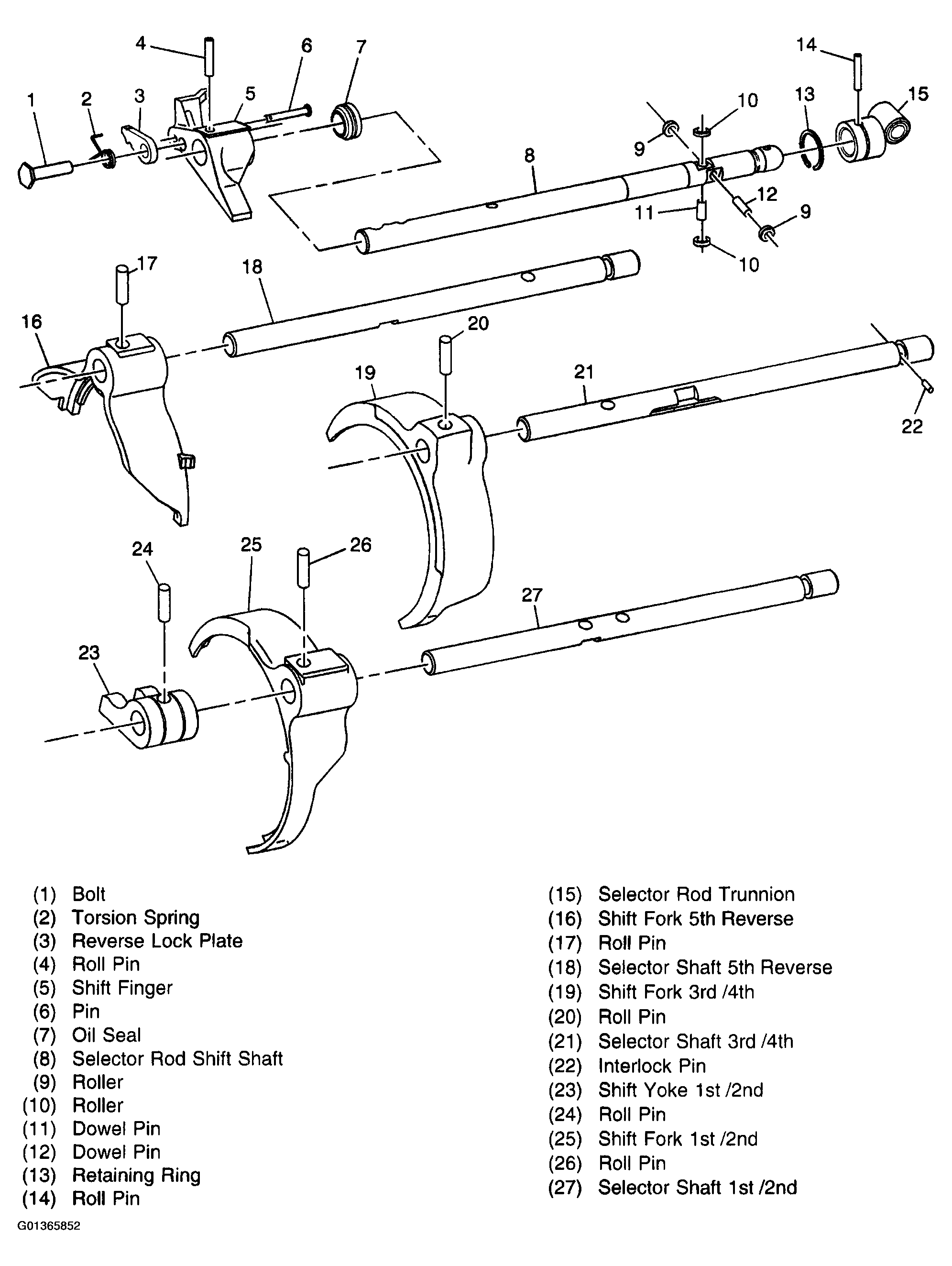

Fig 4: Disassembled Views - Shift Forks

Courtesy of GENERAL MOTORS CORP.
