Automatic Transmission Shift Lock Control Component Views

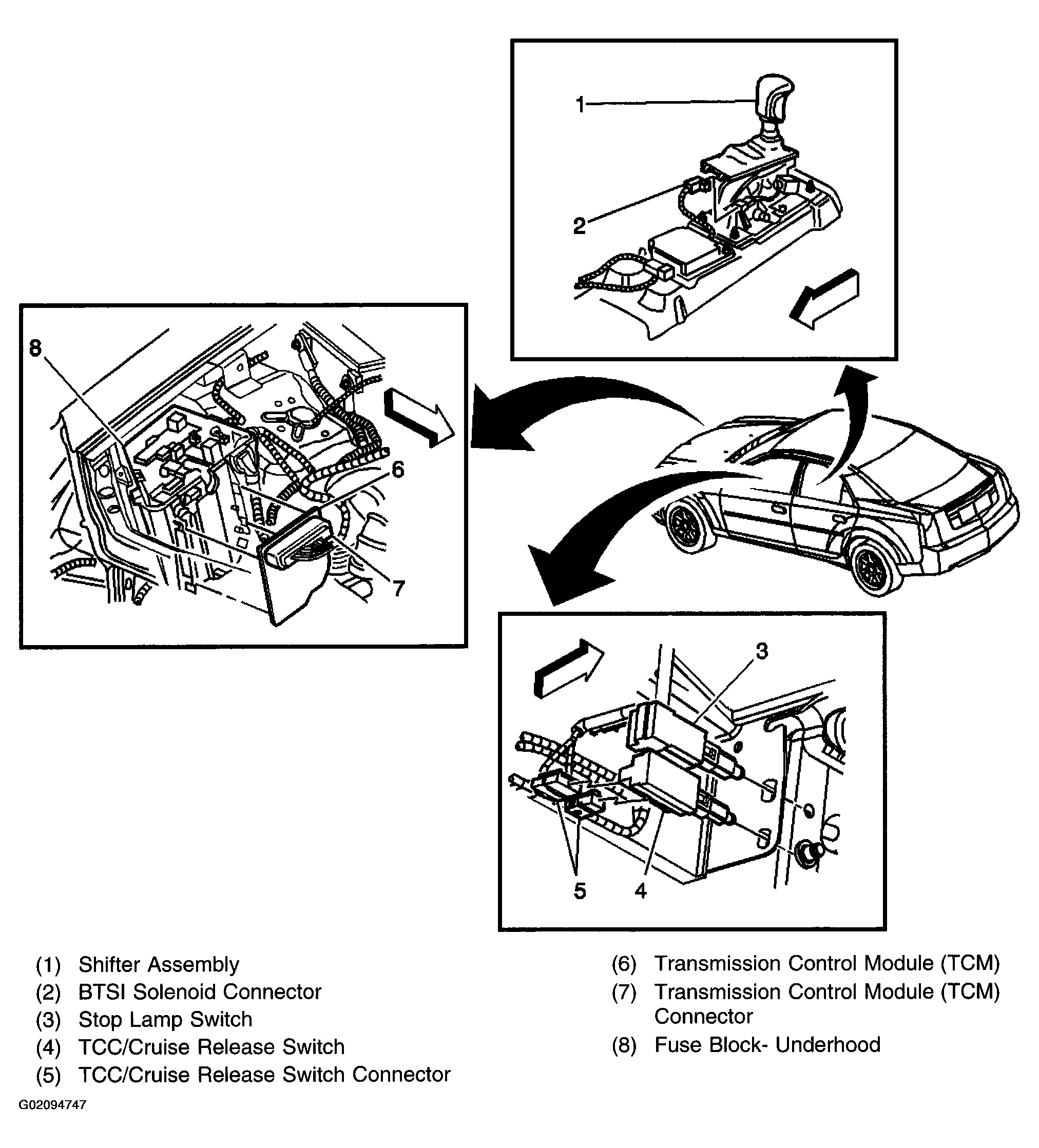

Fig 1: Shift Lock Control Component View
G02094747Courtesy of GENERAL MOTORS CORP.
