LH Power Seat Switch Connector End View

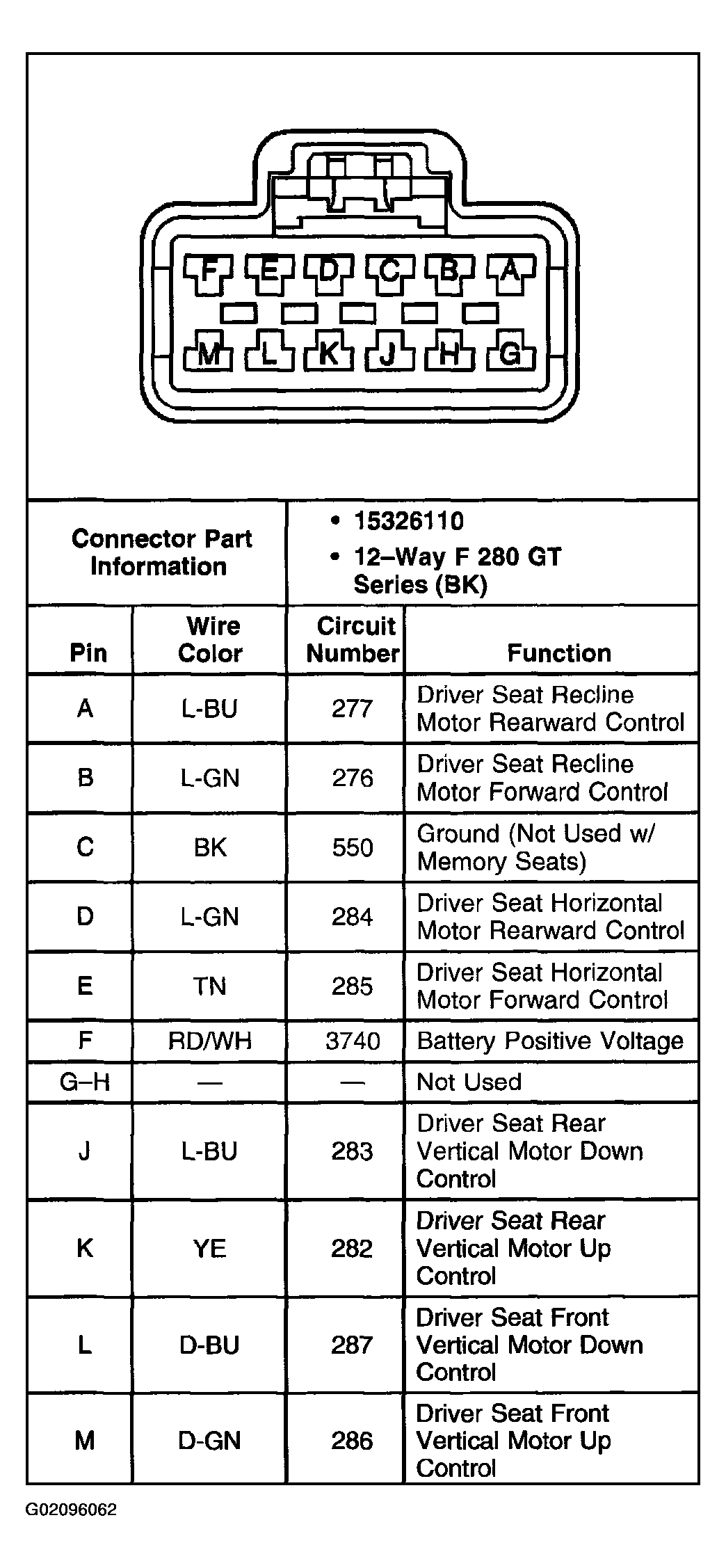

Fig 1: LH Power Seat Switch
Courtesy of GENERAL MOTORS CORP.
