Engine Controls - Self-Diagnostics
>>
Diagnostic Tests
>>
DTC P0448: EVAP Vent Valve Control Circuit Shorted
>>
Diagnostic Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedure

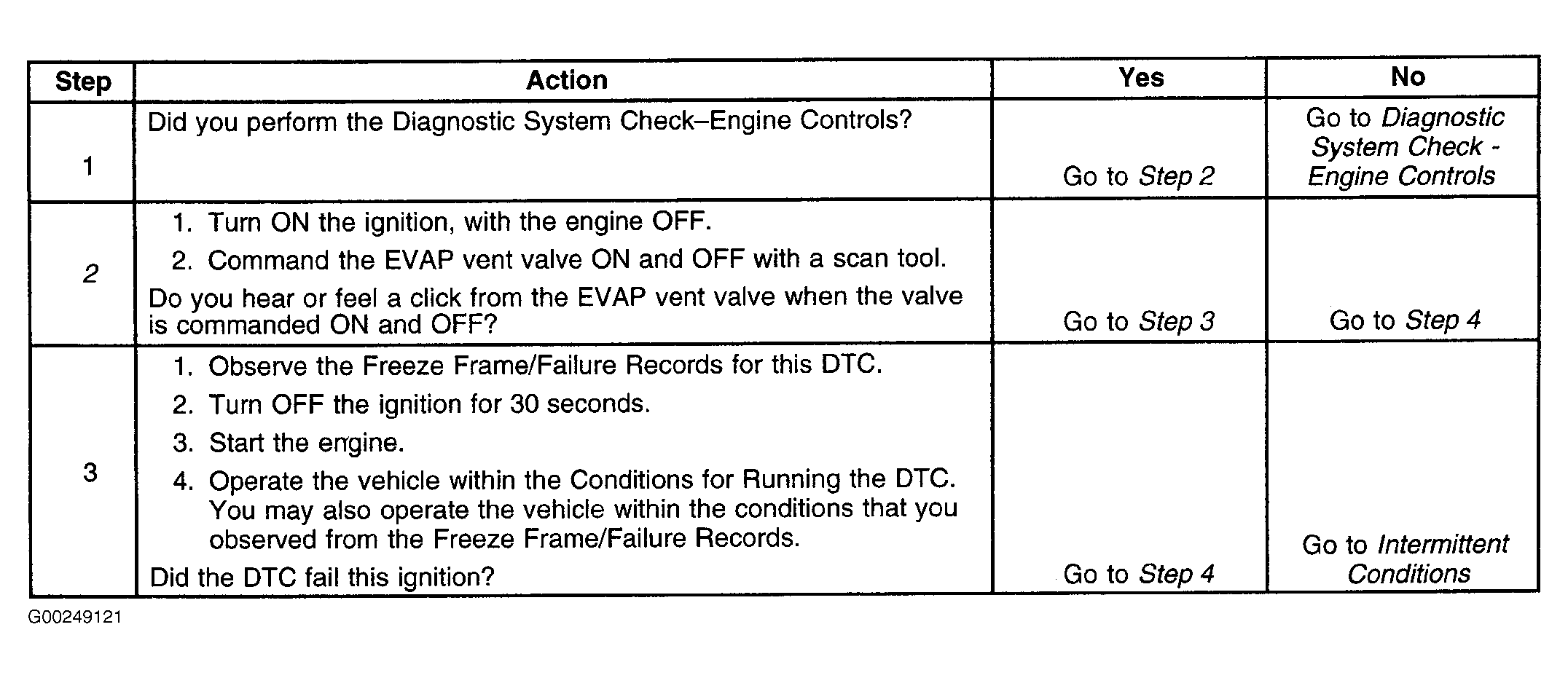

Fig 1: DTC P0448: EVAP Vent Valve Control Circuit Shorted (Steps 1-3)
Courtesy of GENERAL MOTORS CORP.

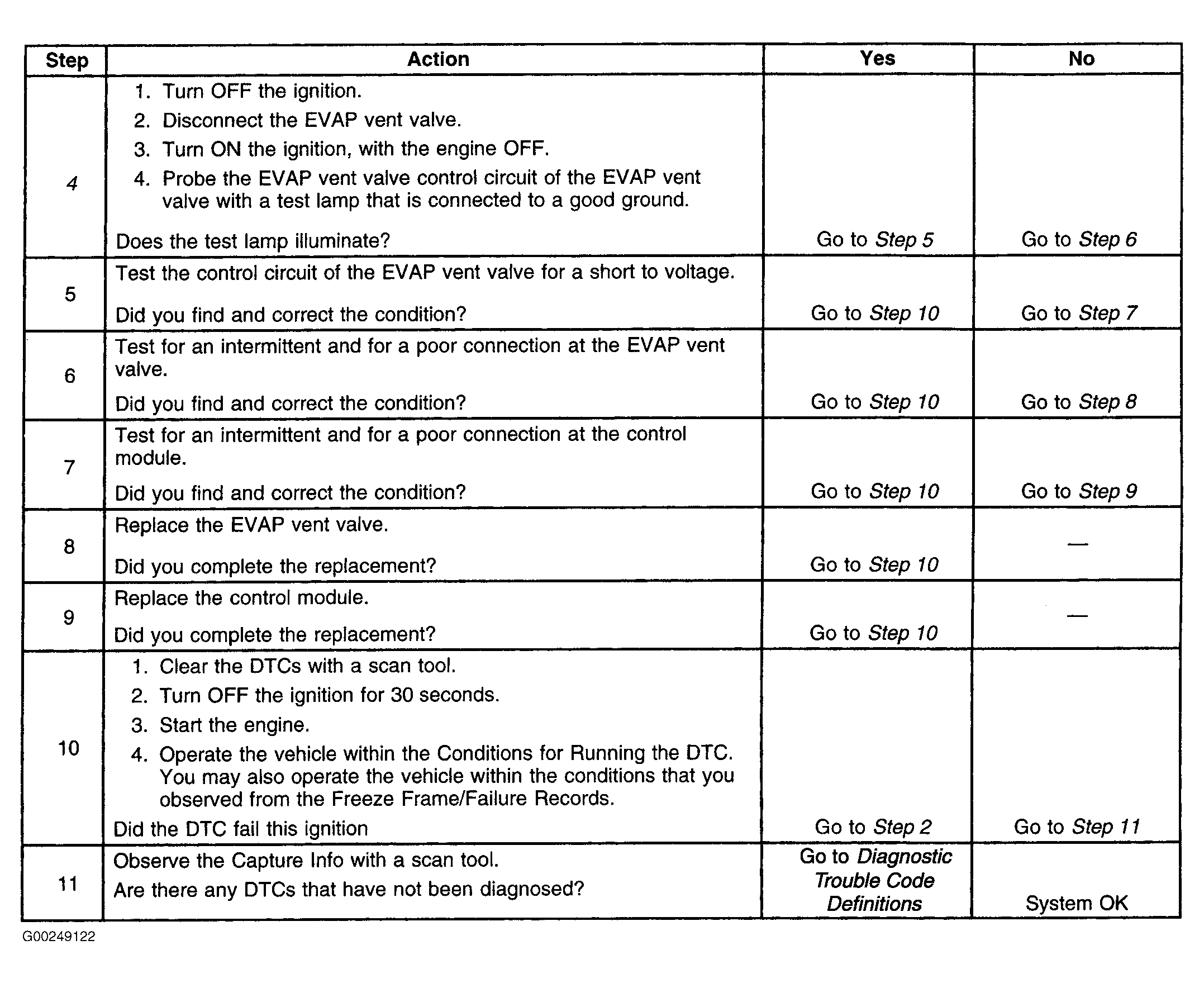

Fig 2: DTC P0448: EVAP Vent Valve Control Circuit Shorted (Steps 4-11)
Courtesy of GENERAL MOTORS CORP.
