Diagnostic Procedures

NOTE: EVAP Pressure/Purge Diagnostic Station (J- 41413) is required to pressurize EVAP system in the following test.

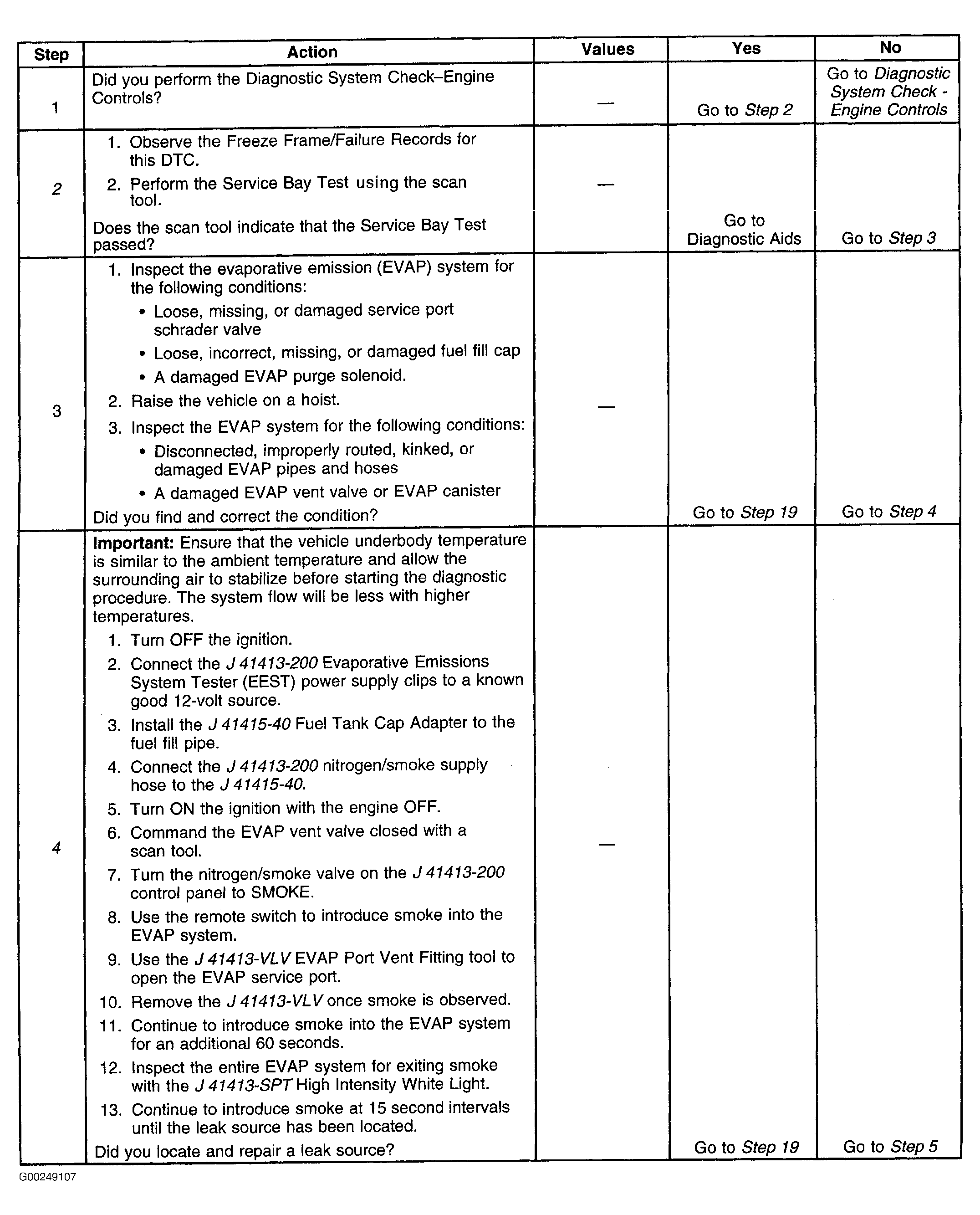

Fig 1: DTC P0440: EVAP System - Large Leak Detected (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

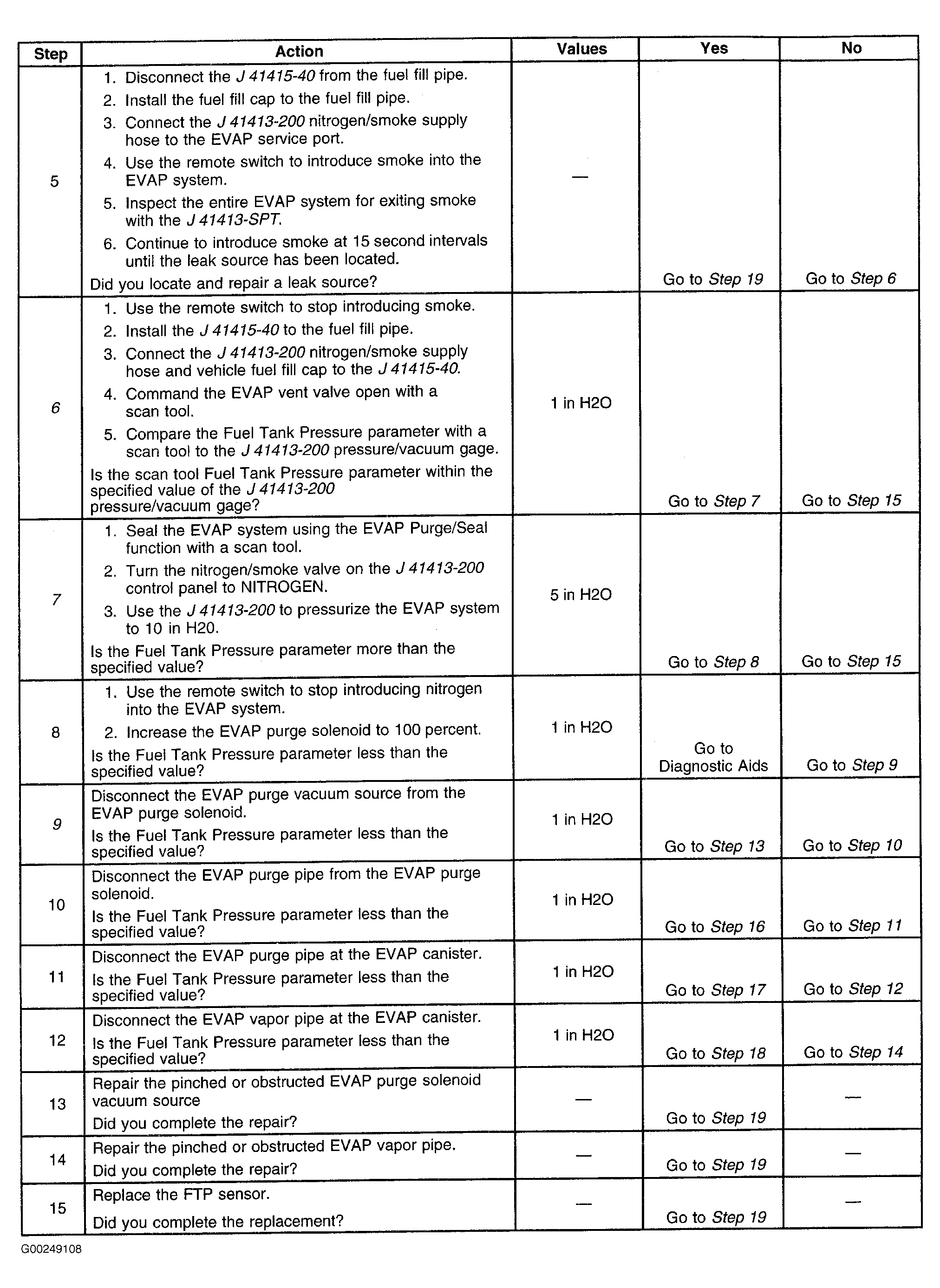

Fig 2: DTC P0440: EVAP System - Large Leak Detected (Steps 5-15)

Courtesy of GENERAL MOTORS CORP.

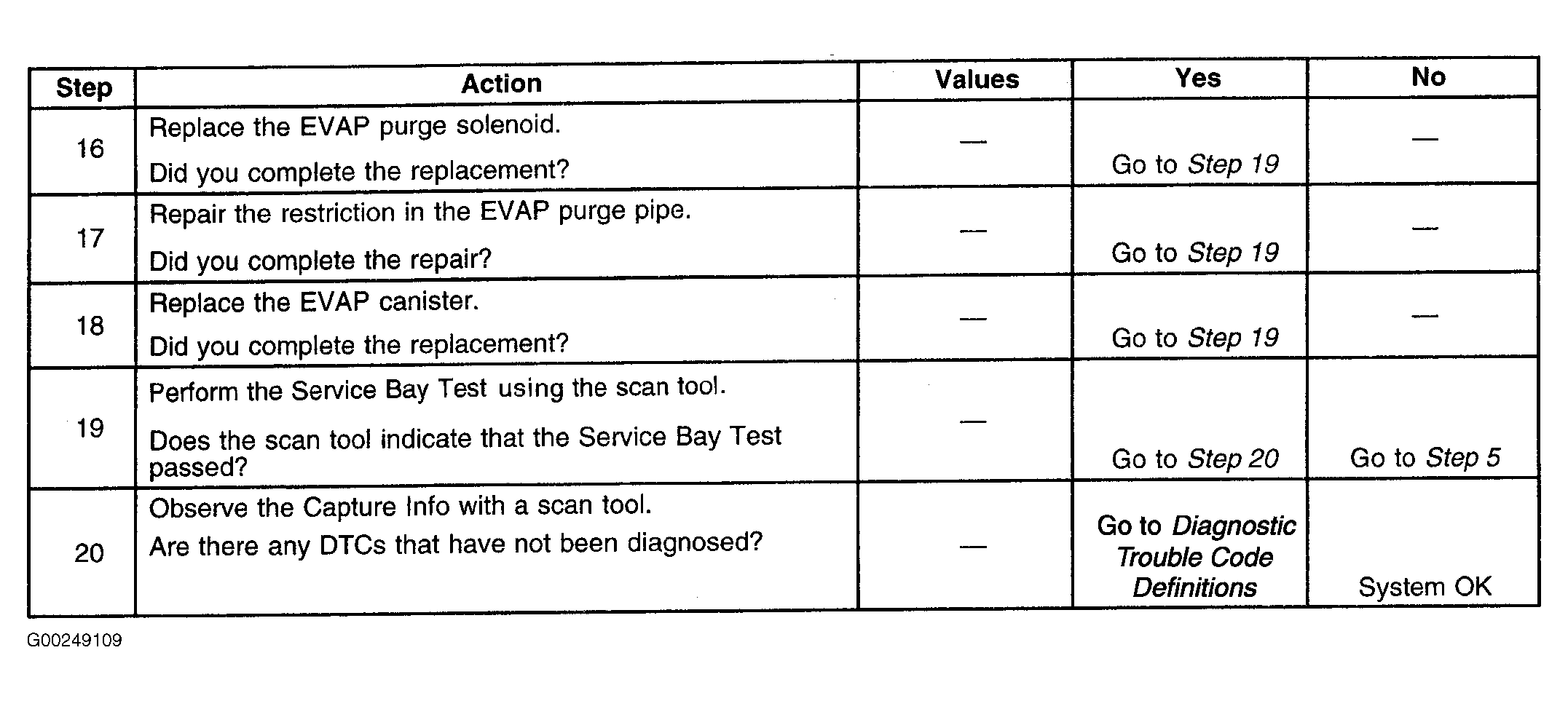

Fig 3: DTC P0440: EVAP System - Large Leak Detected (Steps 16-20)

Courtesy of GENERAL MOTORS CORP.
