Diagnostic Procedures

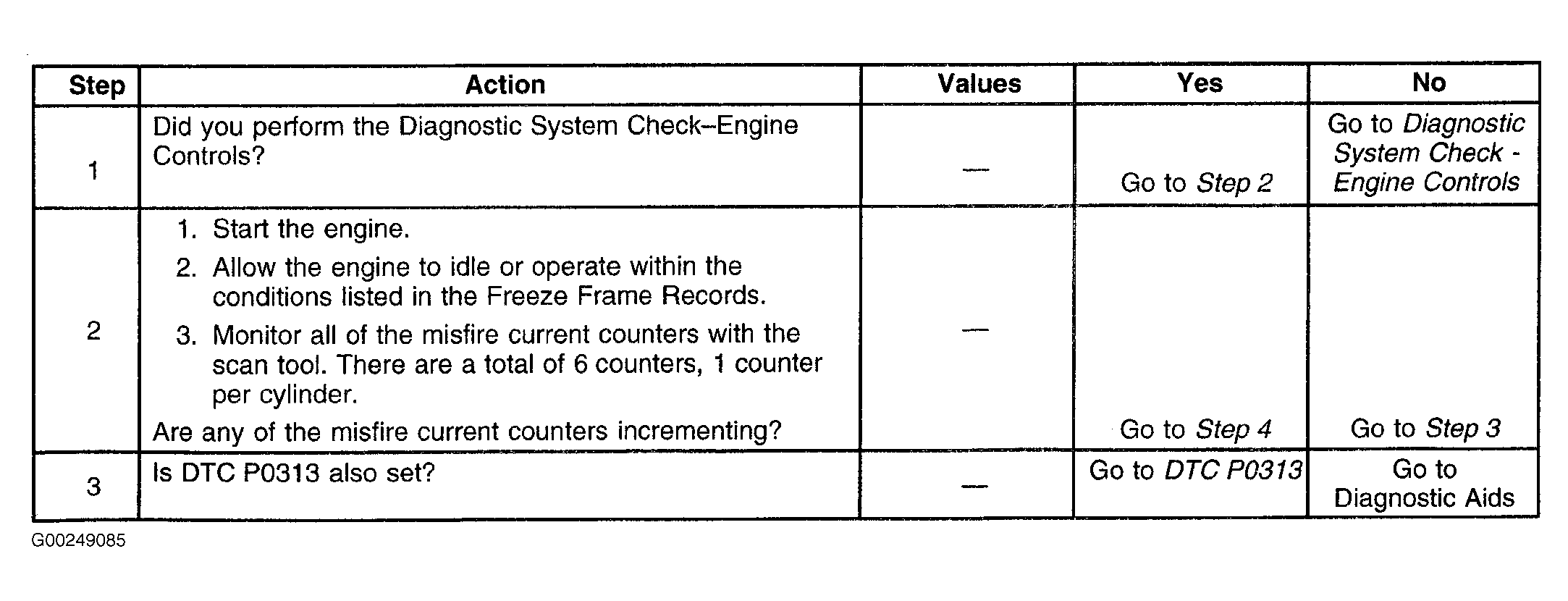

Fig 1: DTC P0300: Engine Misfire Detected (Steps 1-3)
G00249085Courtesy of GENERAL MOTORS CORP.

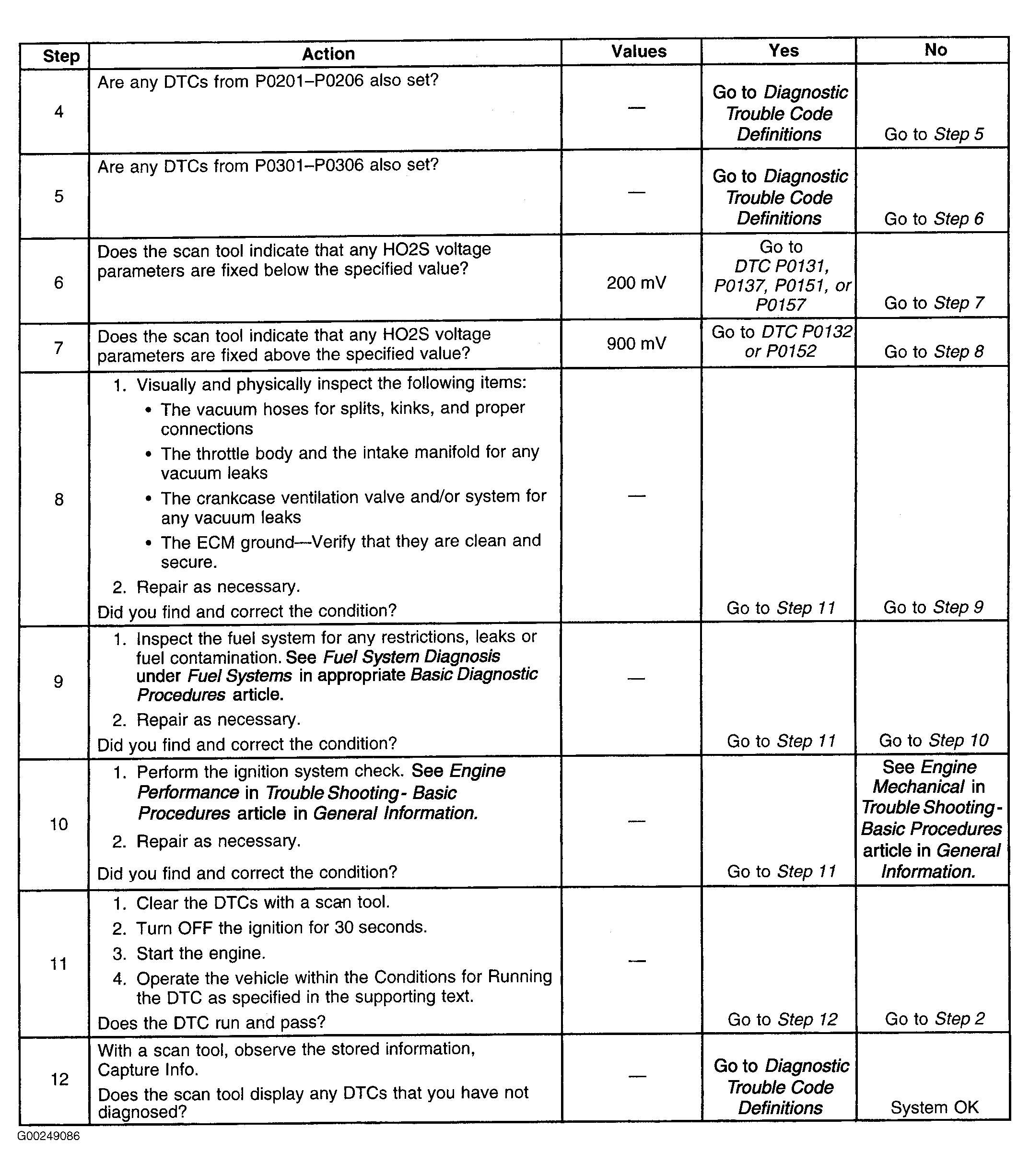

Fig 2: DTC P0300: Engine Misfire Detected (Steps 4-12)
G00249086Courtesy of GENERAL MOTORS CORP.
