Memory Seat Module (MSM) Connector End View - C1
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Memory Seat Module (MSM) Connector End View - C1

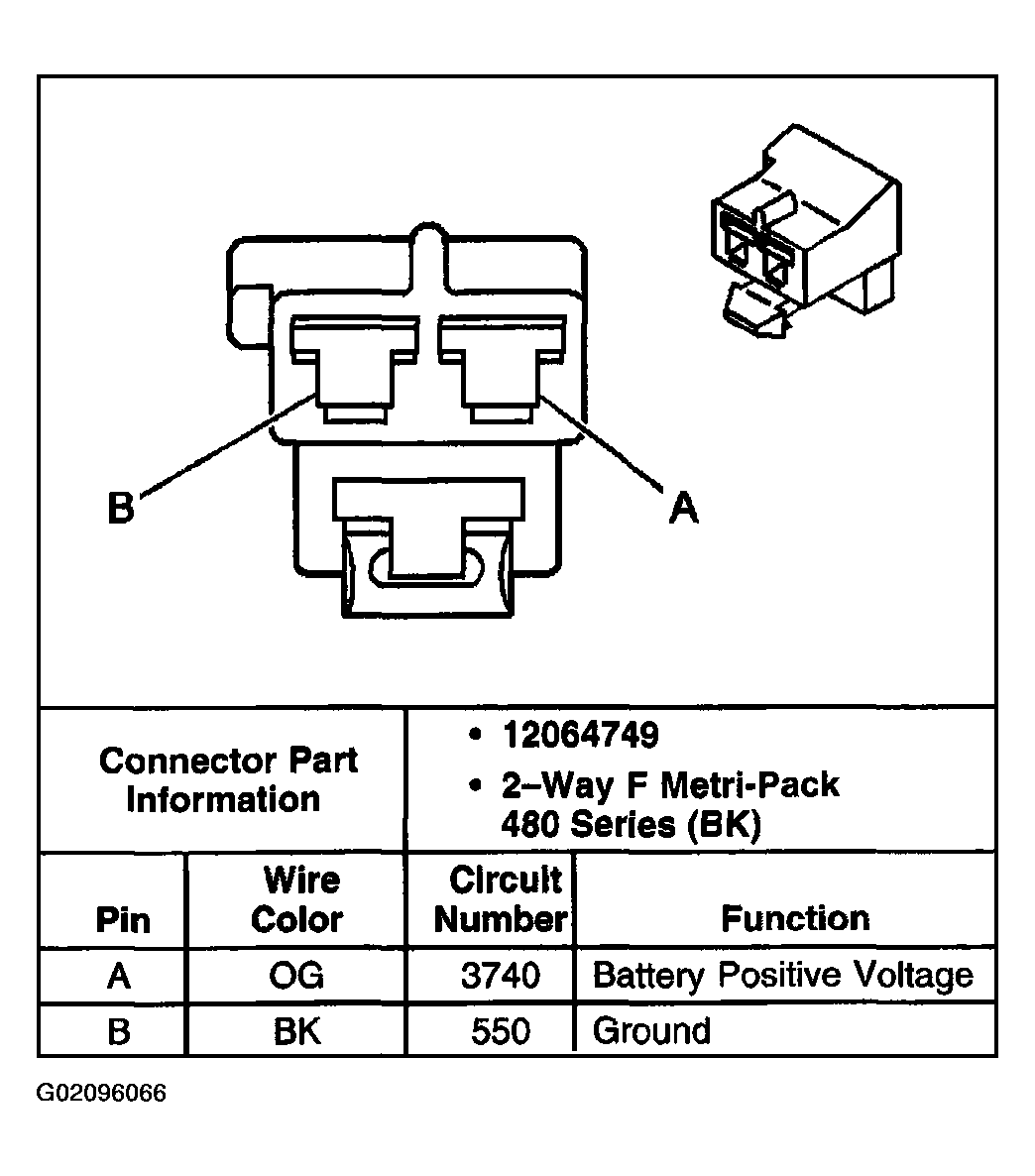

Fig 1: Memory Seat Module (MSM) - C1
Courtesy of GENERAL MOTORS CORP.
