Power Windows Inoperative - Express Up Function

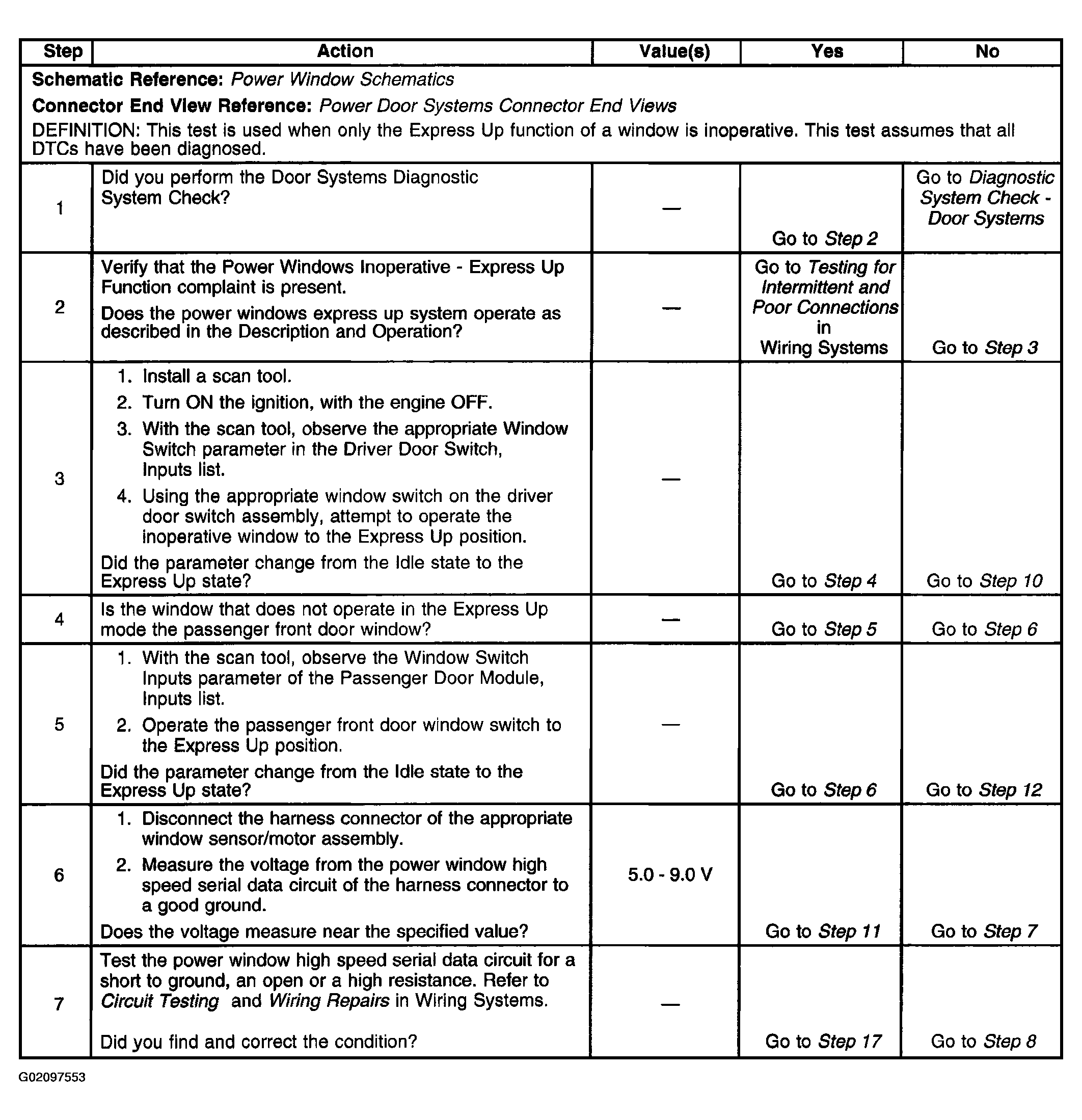

Fig 1: Power Windows Inoperative - Express Up Function Symptom Diagnostic Procedure Chart (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

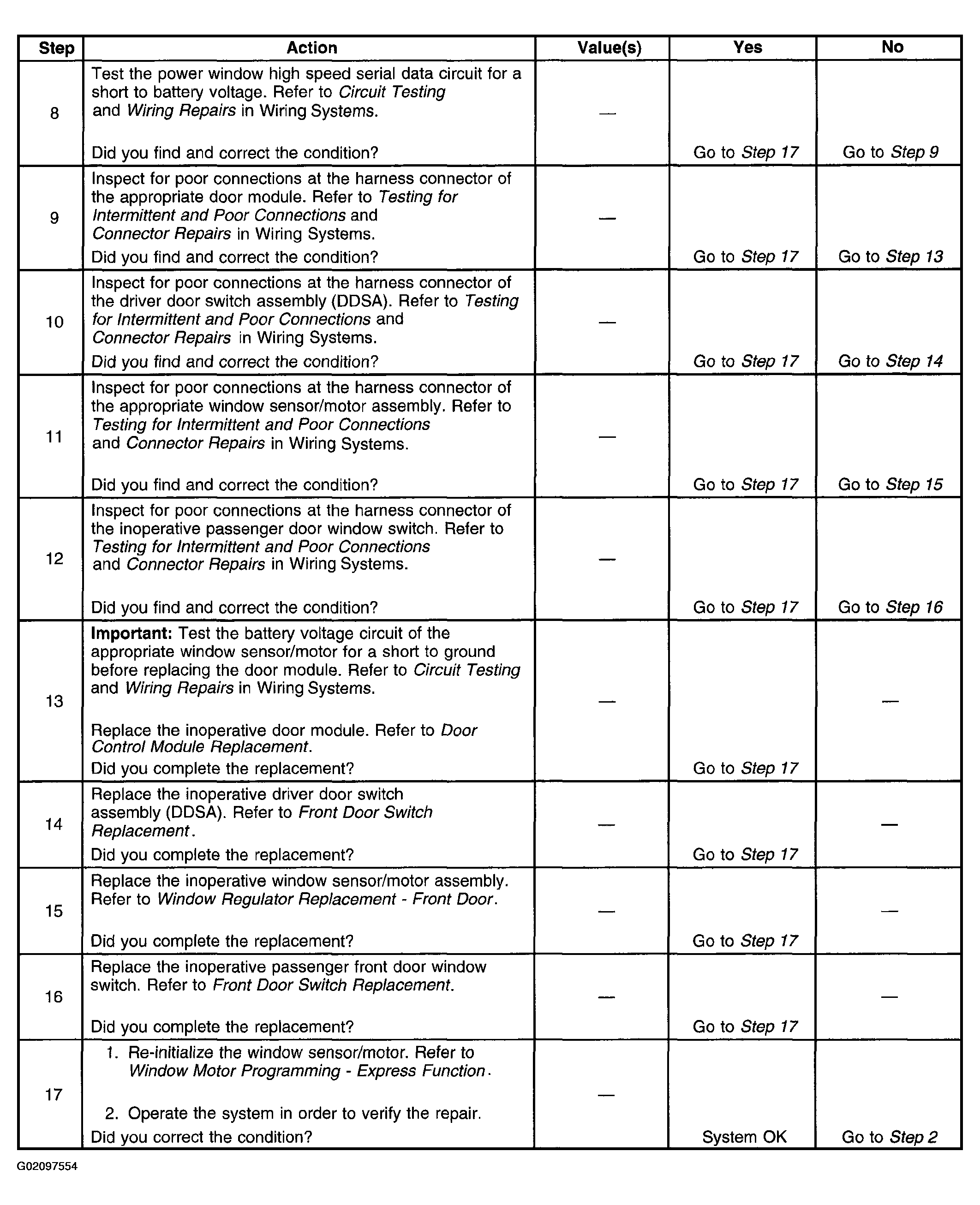

Fig 2: Power Windows Inoperative - Express Up Function Symptom Diagnostic Procedure Chart (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
