Data Link Communications Connector End Views

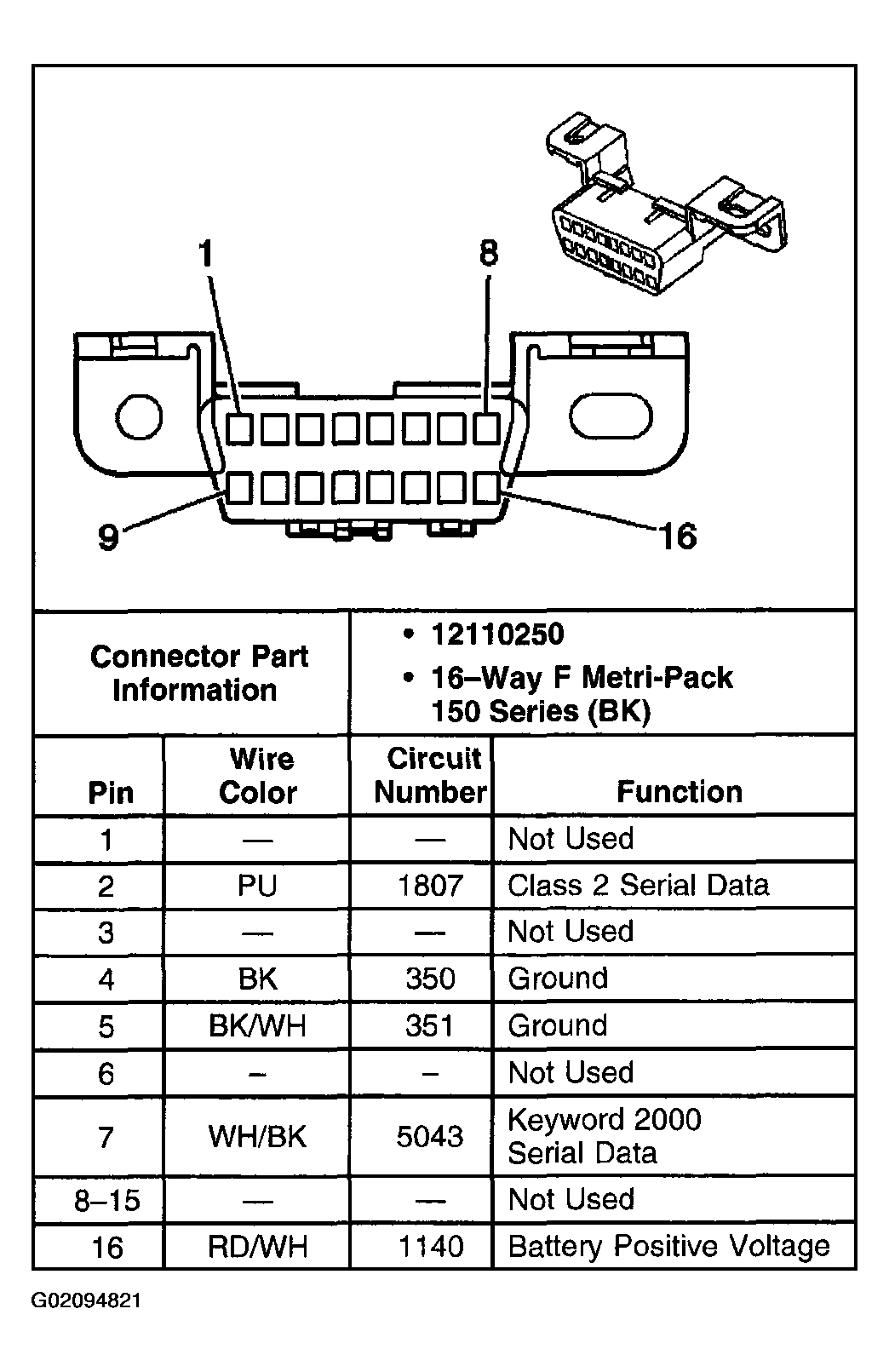

Fig 1: Data Link Communications Connector End View
G02094821Courtesy of GENERAL MOTORS CORP.
