DTC P0629: Fuel Pump Relay Control Circuit High
>>
Diagnostic Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedure

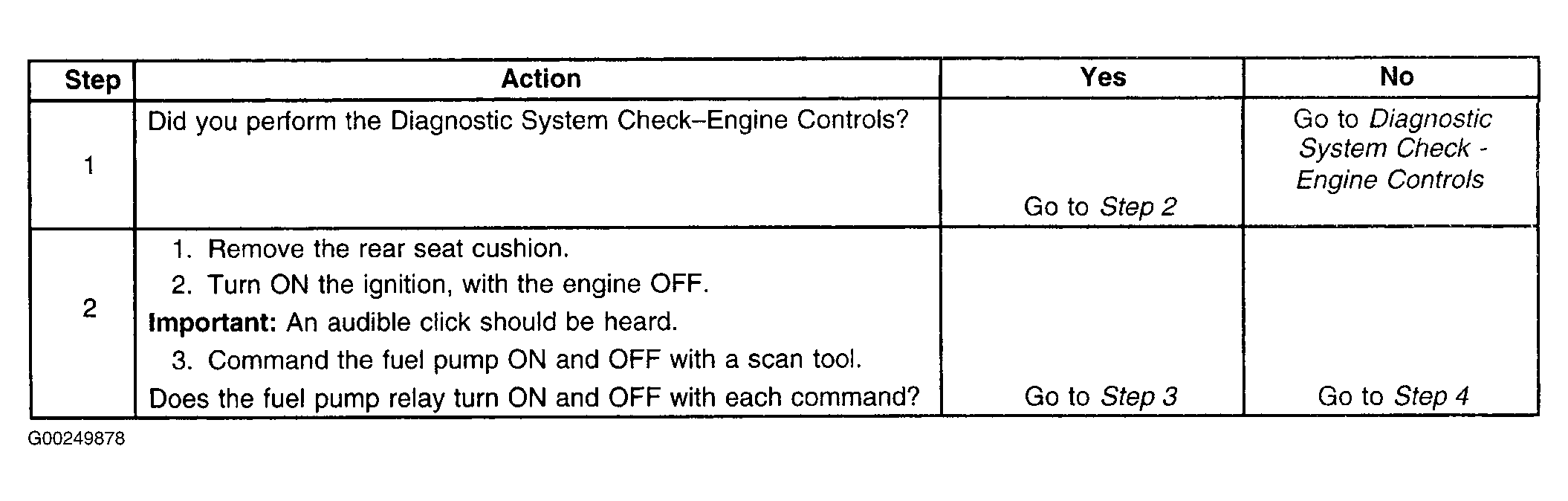

Fig 1: DTC P0629: Fuel Pump Relay Control Circuit High (Steps 1 & 2)
Courtesy of GENERAL MOTORS CORP.

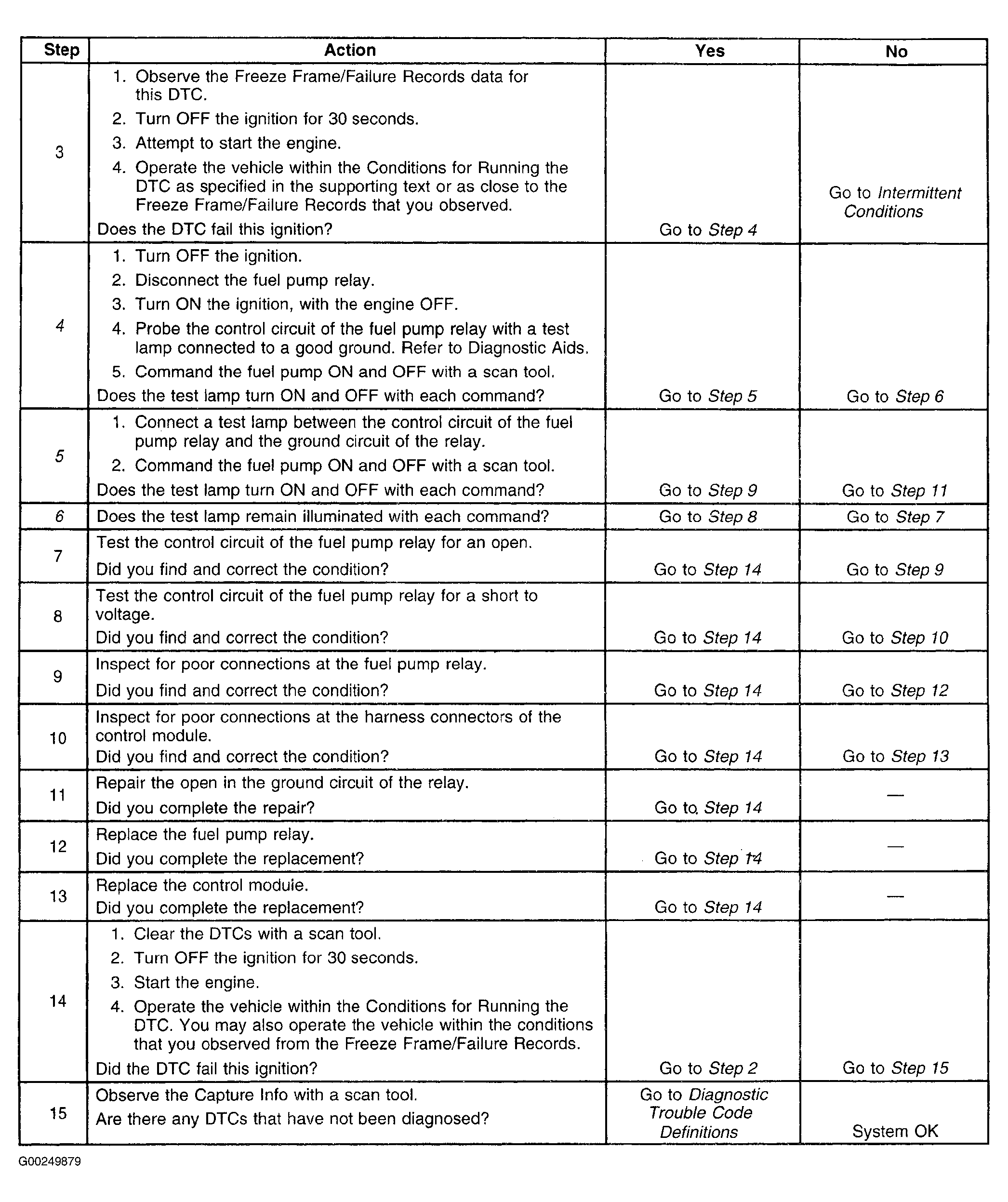

Fig 2: DTC P0629: Fuel Pump Relay Control Circuit High (Steps 3-15)
Courtesy of GENERAL MOTORS CORP.
